CONTROL PANEL OVERVIEW
User Display

Salt Indicator LED

®
The ChlorSync checks the pool water salinity on start-up and every 12 hrs. thereafter and
displays the levels as follows:
Green LED (solid): Indicates salt level is adequate. Pool water salt level is between 2,700 ppm (mg/L)
l
and 4,500 ppm (mg/L).
Green LED (flashing): Salt level is above 5,000 ppm (mg/L). The unit is still producing chlorine and will
l
not be damaged by high salt conditions.
Red LED (solid): The display shows ( LO SALT ). The salt level is between 2,300 ppm (mg/L) and
l
2,700 ppm (mg/L). The unit will generate chlorine, but at a lower output level. See "Salt Addition
Information" on page 15 . Add salt as needed.
Red LED (flashing): The display shows ( ADD SALT ). The salt level is below 2,300 ppm (mg/L). The
l
unit will not generate chlorine until the minimum amount of salt has been reached. See "Salt Addition
Information" on page 15 . Add salt as needed.
NOTE: When salt is added, the circulation pump should be run continuously until the salt has been fully
l
dissolved. After the salt is dissolved, reset the power to the power supply. This will allow for accurate
measurement of the new salt level.

Cell Indicator LED

This light indicates the ChlorSync
Green LED (solid): The unit is operating normally.
l
Red (flashing):The unit is not producing chlorine. The cell will display the message ( CELL ) and
l
should be inspected. Conductivity may be reduced due to calcium buildup on the cell blades, low salt, etc.
Refer to the Troubleshooting section of this manual for more information.

Flow Indicator LED

This light indicates water flow through the ChlorSync
Green LED (solid): The flow sensor detects adequate water flow to produce chlorine.
l
Red LED (flashing): The display shows ( no FLo ). The flow sensor detects low water flow through the
l
cell. The unit will not produce chlorine without water flow.
Page - 8
®

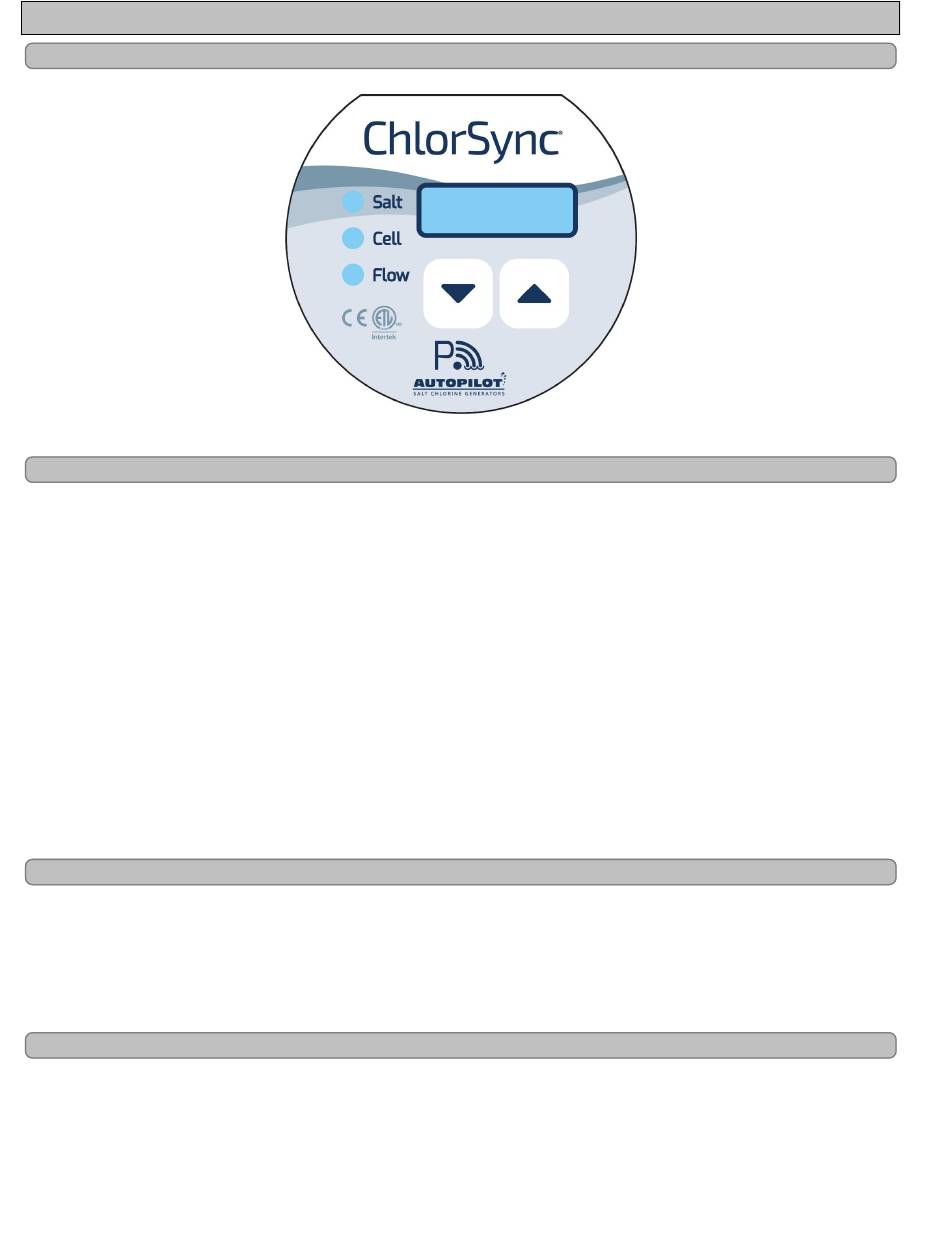

ChlorSync Cell Label
®
cell status.
®
.
Figure 4
