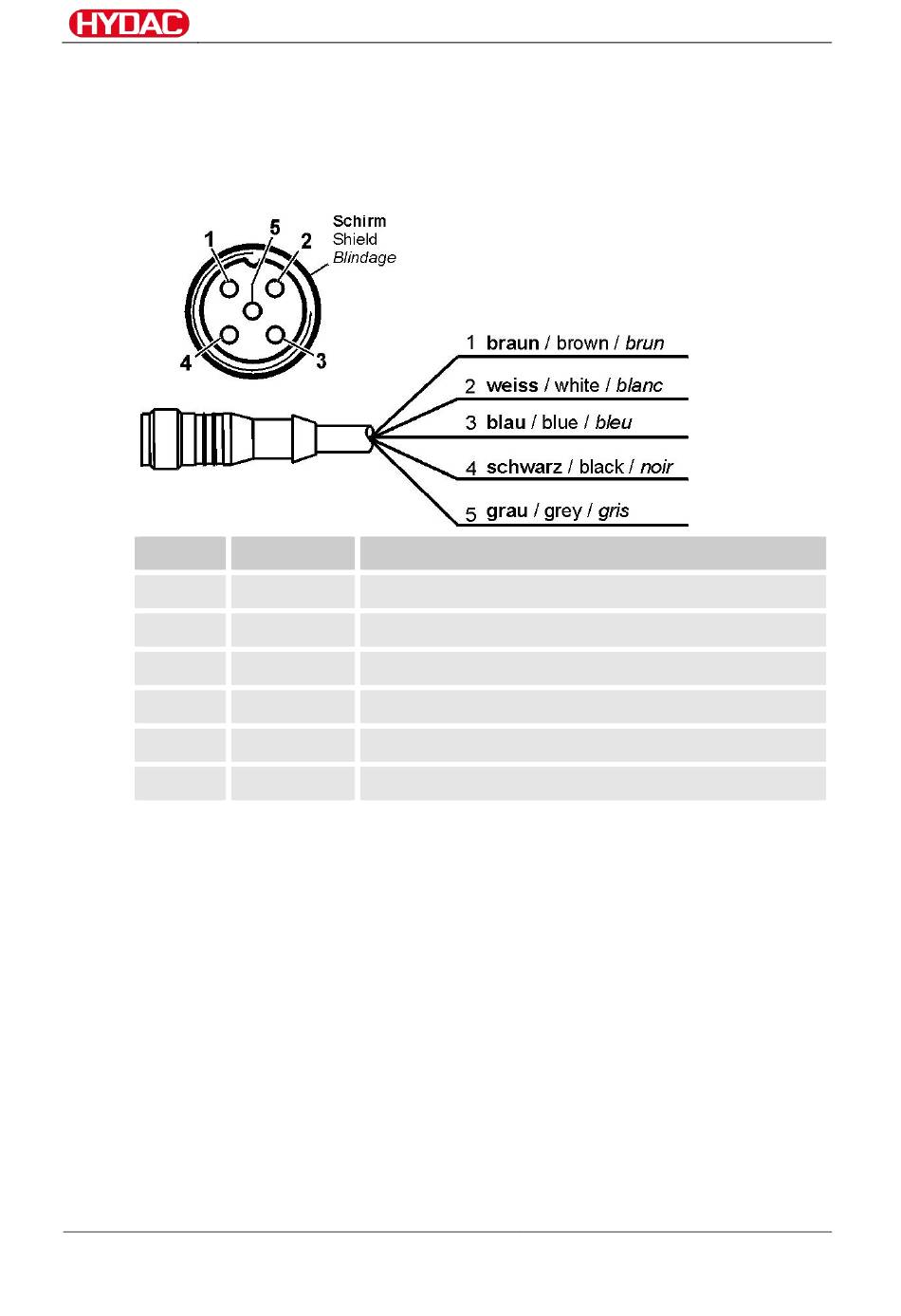

Connection cable - Assignment / Color coding

Our accessories list on page 39 includes the required connection cables of
various lengths with one connection plug (M12x1, 5-pole, according to DIN
VDE 0627) and an open end.
HYDAC accessory cable color coding is listed in the table below.
Pin Color
1 brown
2 White
3 Blue
4 black
5 grey
Body -
ContaminationSensor CS 1939
BeWa CS1939 3978342c V100 en-us 2019-10-08.docx
Assembly, installation and commissioning
Connection to
9-36 V DC Supply voltage
CAN H (SAE J1939)
GND power supply
CAN L (SAE J1939)
HSI (HYDAC Sensor Interface)
Shield
en
Page 31 / 48
