Transponder interface wiring
The transponder interface produces Gillman (Gray) coded altitude information suitable for
connection to a mode C transponder.

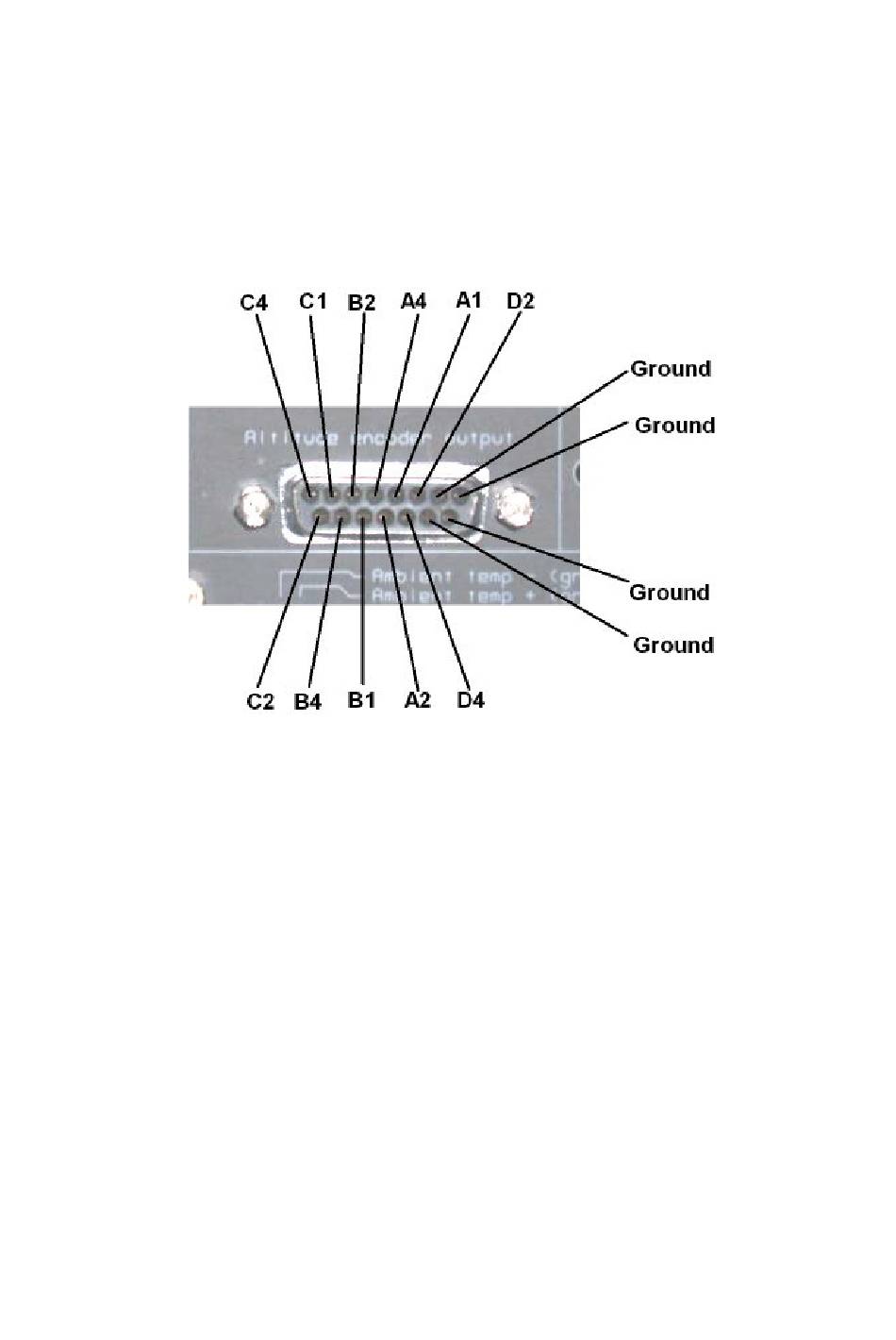

Connections using the standard code identifiers are shown here. If your transponder does
not support signals D4 and D2, leave them unconnected. At least one of the ground wires
should be connected to the corresponding ground terminal of your transponder.
