Introduction

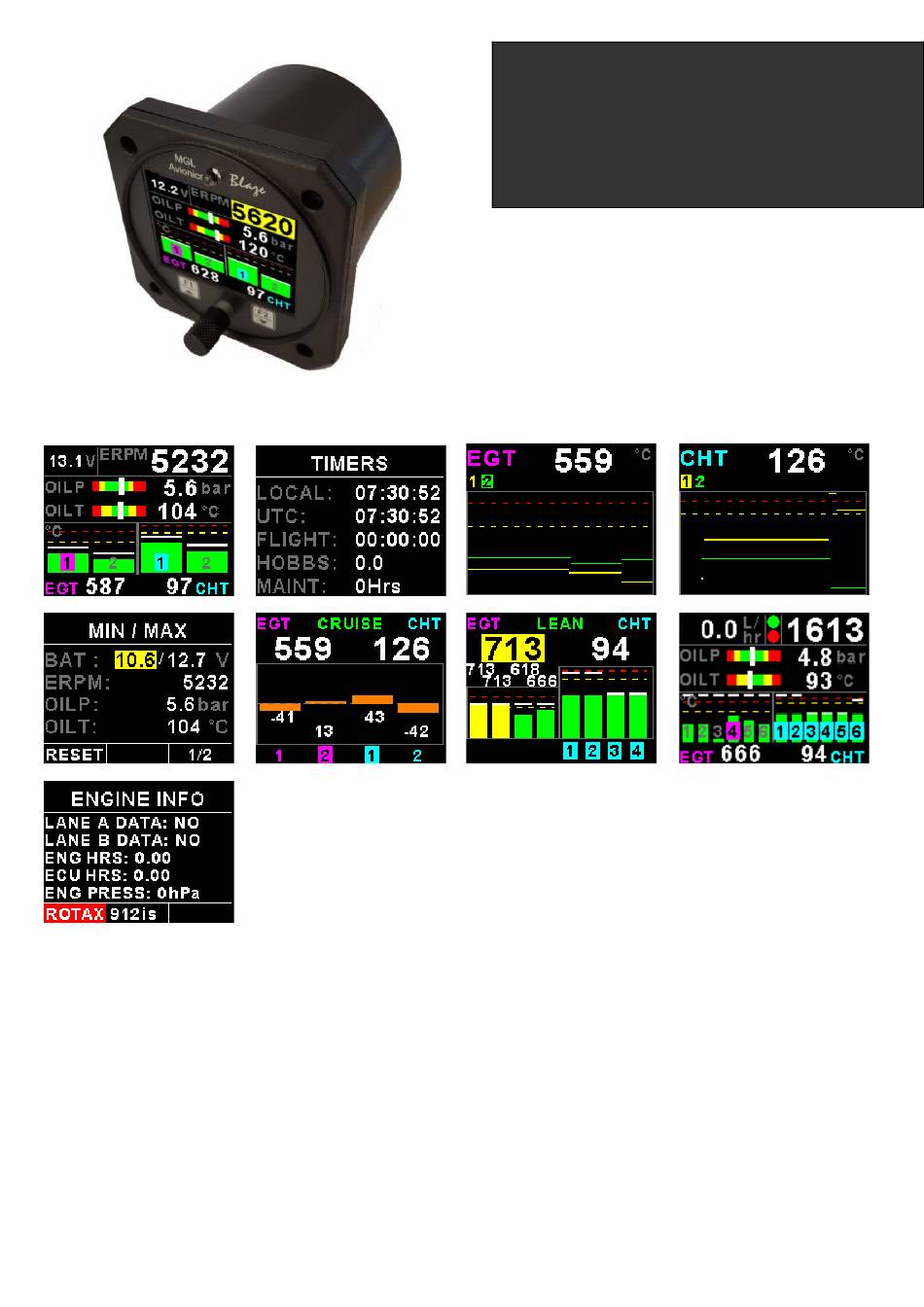

The Blaze EMS-2 is a 3 1/8" (80mm) universal engine monitor color display instrument. The EMS-2 contains all the
necessary functionality to replace several engine monitoring instruments.
All information is displayed in an easy to read format on a high resolution wide viewing angle 2.6" 600cd/m2 sunlight
readable color display.
The EMS-2 light weight, small size and high level of functionality makes it an excellent choice for all types of engines. The
EMS-2 can also interface directly to UL Power engines via the RS232 port.
The EMS-2 can also be interfaced via the CAN bus to an optional external RDAC unit (Remote Data Acquisition
Computer). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
