Summarization of Contents
Regulatory Compliance Information
FCC Information
Details FCC compliance and conditions for digital devices, including operational requirements.
EU Conformity Statement
States compliance with EU directives (EMC, LVD, ROHS) and provides WEEE/battery disposal guidance.
Industry Canada ICES-003 Compliance
Confirms the device meets Canadian ICES-003 standards for digital apparatus.

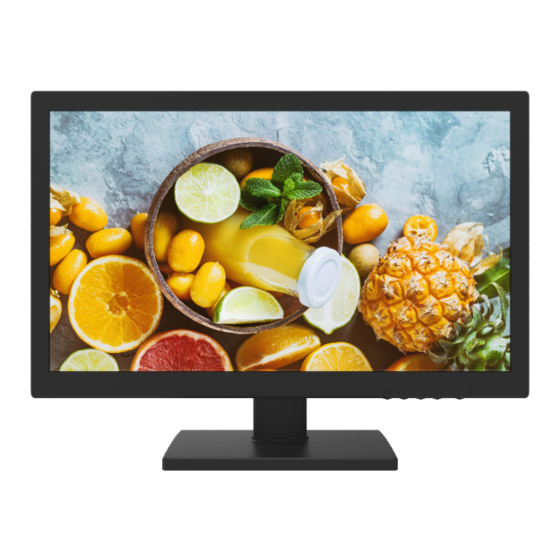

Introduction to the LCD Monitor
1.1 Key Features
Lists key features of the LCD monitor series, including display resolution, viewing angles, and connectivity.
1.2 Power Supply Connection
Provides instructions on how to properly connect the power supply to the LCD monitor unit.
Basic Operation Guide
4.1 Input Source Selection
Guides on selecting the video input source, such as VGA or HDMI, using the remote controller.
4.1 Contrast Adjustment
Instructions for adjusting the monitor's contrast level using the remote control buttons.
4.2 Audio Volume Adjustment
Details on how to adjust the audio volume of the monitor via the OSD menu.
4.2 Brightness Adjustment
Steps to adjust the screen brightness of the monitor using the remote control.
4.3 Auto Adjust
Procedure for performing an automatic image adjustment, typically for VGA input signals.
Main Menu Settings
4.4.1 Image Settings
Adjusting picture parameters like contrast, brightness, and color temperature through the main menu.
4.4.2 Image Adjustment
Fine-tuning VGA specific image parameters such as H/V position, clock, and phase.
4.4.3 OSD Setting
Configuring On-Screen Display settings: language, position, timer duration, and transparency.
4.4.4 Other Settings
Adjusting mode, audio volume, signal source, aspect ratio, and DCR settings.
4.4.5 Reset Setting
Instructions to reset all monitor settings back to their original factory defaults.
