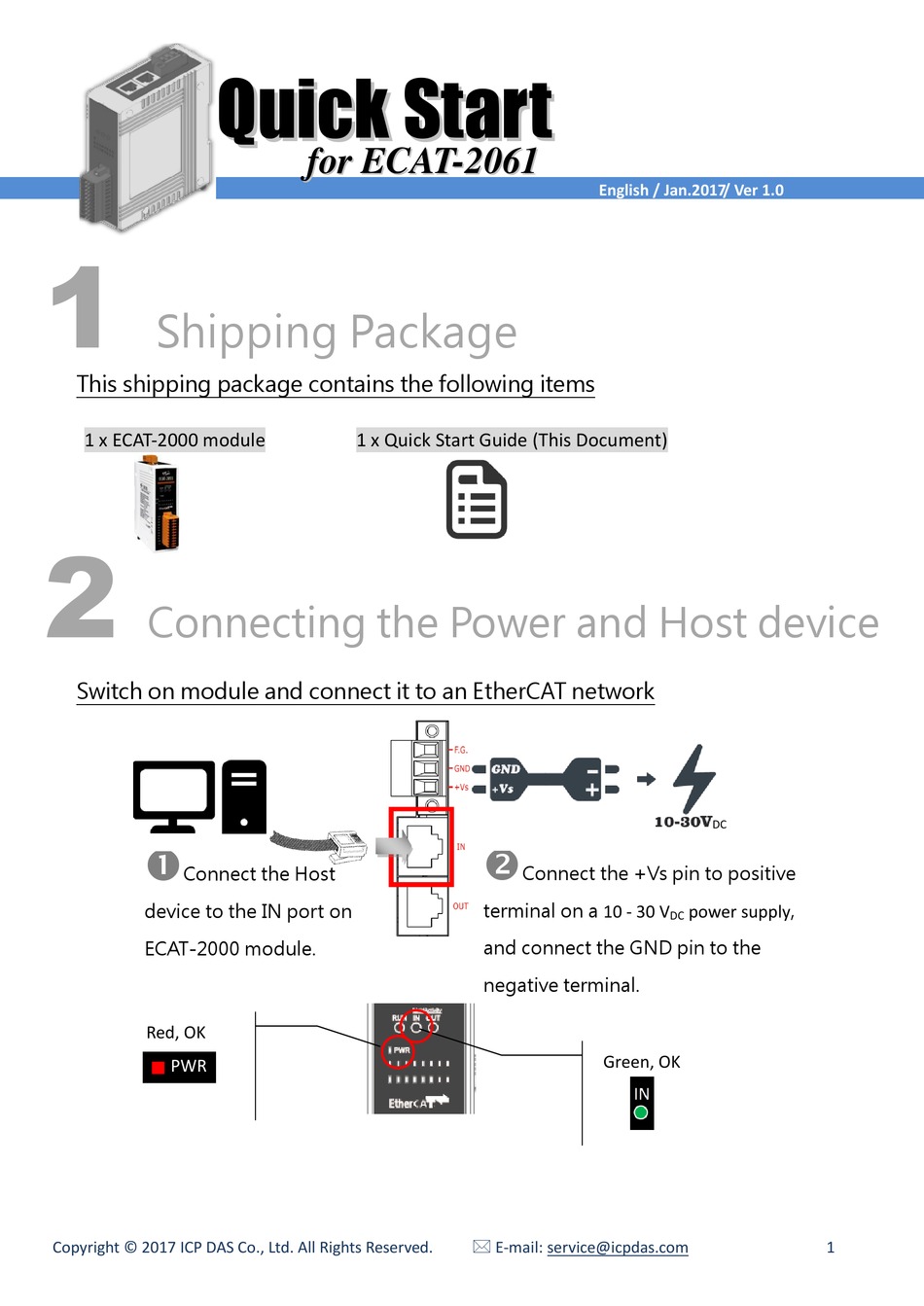

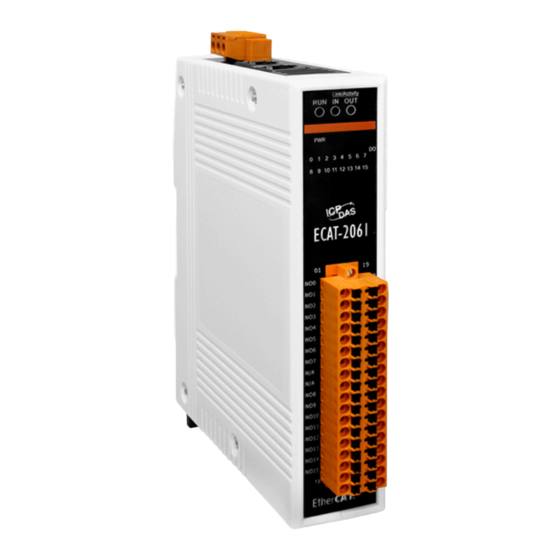

Shipping Package
This shipping package contains the following items
1 x ECAT-2000 module
2
Connecting the Power and Host device
Switch on module and connect it to an EtherCAT network
Connect the Host
device to the IN port on
ECAT-2000 module.
Red, OK
PWR
█
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
u
i
c
k
Q
u
i
c
k
f
o
r
E
C
f
o
r
E
C
1 x Quick Start Guide (This Document)
S
t
a
r
t
S
t
a
r
t
A
T
-
2
0
6
1
A
T
-
2
0
6
1
Connect the +Vs pin to positive
terminal on a 10 - 30 V
and connect the GND pin to the
negative terminal.
E-mail: service@icpdas.com
English / Jan.2017/ Ver 1.0
DC
power supply,
DC
Green, OK
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA ECAT-2061
Summary of Contents for ICP DAS USA ECAT-2061
- Page 1 English / Jan.2017/ Ver 1.0 Shipping Package This shipping package contains the following items 1 x ECAT-2000 module 1 x Quick Start Guide (This Document) Connecting the Power and Host device Switch on module and connect it to an EtherCAT network ...
- Page 2 Search Modules ESI file The latest ESI file (ICPDAS ECAT-2000.xml) can be downloaded from ICP DAS website at http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethercat/slave/ecat-2000/software/ Install the ESI file Copy the “ICPDAS ECAT-2000.xml” file to the Master Tools installation folder, as indicated in the table below. Software Default Path Beckhoff EtherCAT Configuration...
- Page 3 ECAT-2000 is now shown in the TwinCAT system Manager Wiring to the connector Wiring Tip Connection the wire Removing the wire Use the blade of a Use the blade of a flat-head screwdriver to flat-head screwdriver to push the wire clamp, push the wire clamp, then hold until step 2 then hold until step 2...
- Page 4 0 to 15, then click Output 0 to 15[0]. In the right-hand of the windows, click the online. Click Write. Click 1 (Configure DO0 to Logic1). ☑ LED is lighting. Related Information Product Page: http://www.icpdas.com/root/product/solutions/industrial_communication/fieldbus/ethercat/io_module/ecat-2061.html Documentation: ftp://ftp.icpdas.com/pub/cd/fieldbus_cd/ethercat/slave/ecat-2000/ ESI file: http://ftp.icpdas.com/pub/cd/fieldbus_cd/ethercat/slave/ecat-2000/software/ DP-665(Optional ) Product Page: http://www.icpdas.com/products/Accessories/power_supply/dp-665.htm E-mail: service@icpdas.com...
