ICP DAS USA ECAT-2012H Quick Start

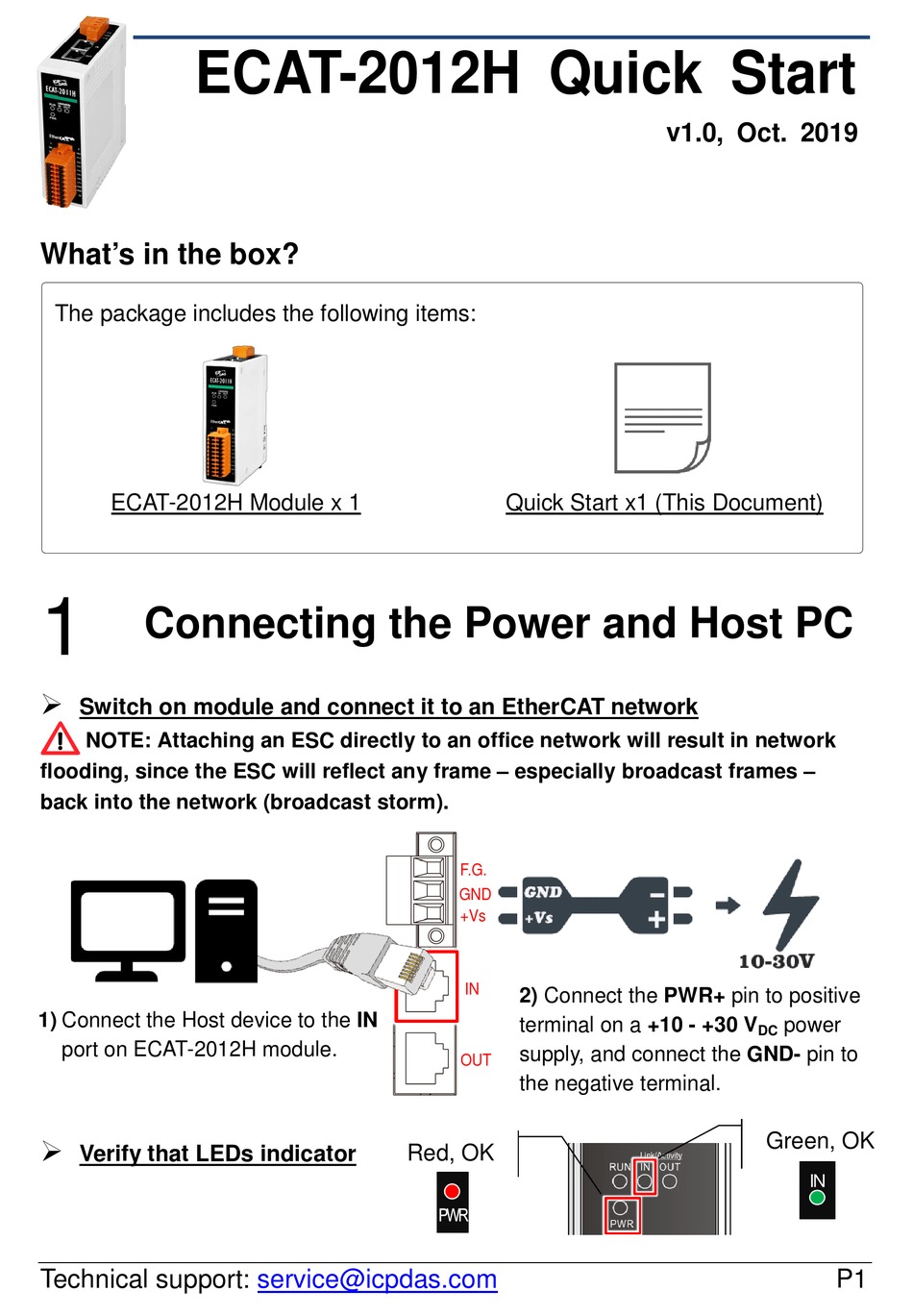

ECAT-2012H Quick Start
What's in the box?
The package includes the following items:

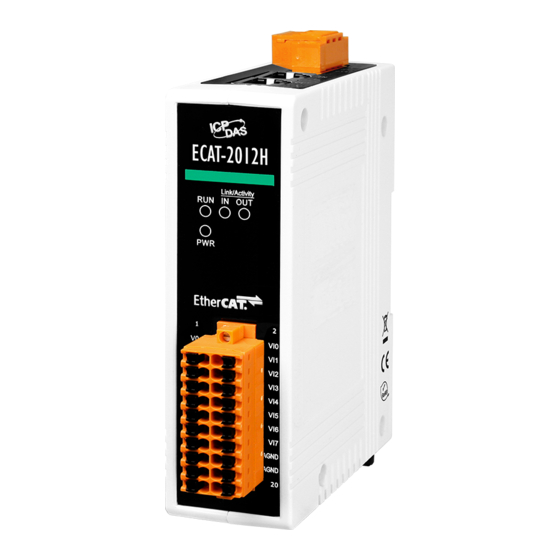

ECAT-2012H Module x 1
1

Connecting the Power and Host PC


Switch on module and connect it to an EtherCAT network
NOTE: Attaching an ESC directly to an office network will result in network
flooding, since the ESC will reflect any frame – especially broadcast frames –
back into the network (broadcast storm).
1) Connect the Host device to the IN
port on ECAT-2012H module.

Verify that LEDs indicator
Technical support:
Red, OK
service@icpdas.com
Quick Start x1 (This Document)
F.G.
GND
+Vs
IN
2) Connect the PWR+ pin to positive
terminal on a +10 - +30 V
supply, and connect the GND- pin to
OUT
the negative terminal.
v1.0, Oct. 2019
power
DC
Green, OK
IN
P1
