Exit JUMPARENA User Manual page 16

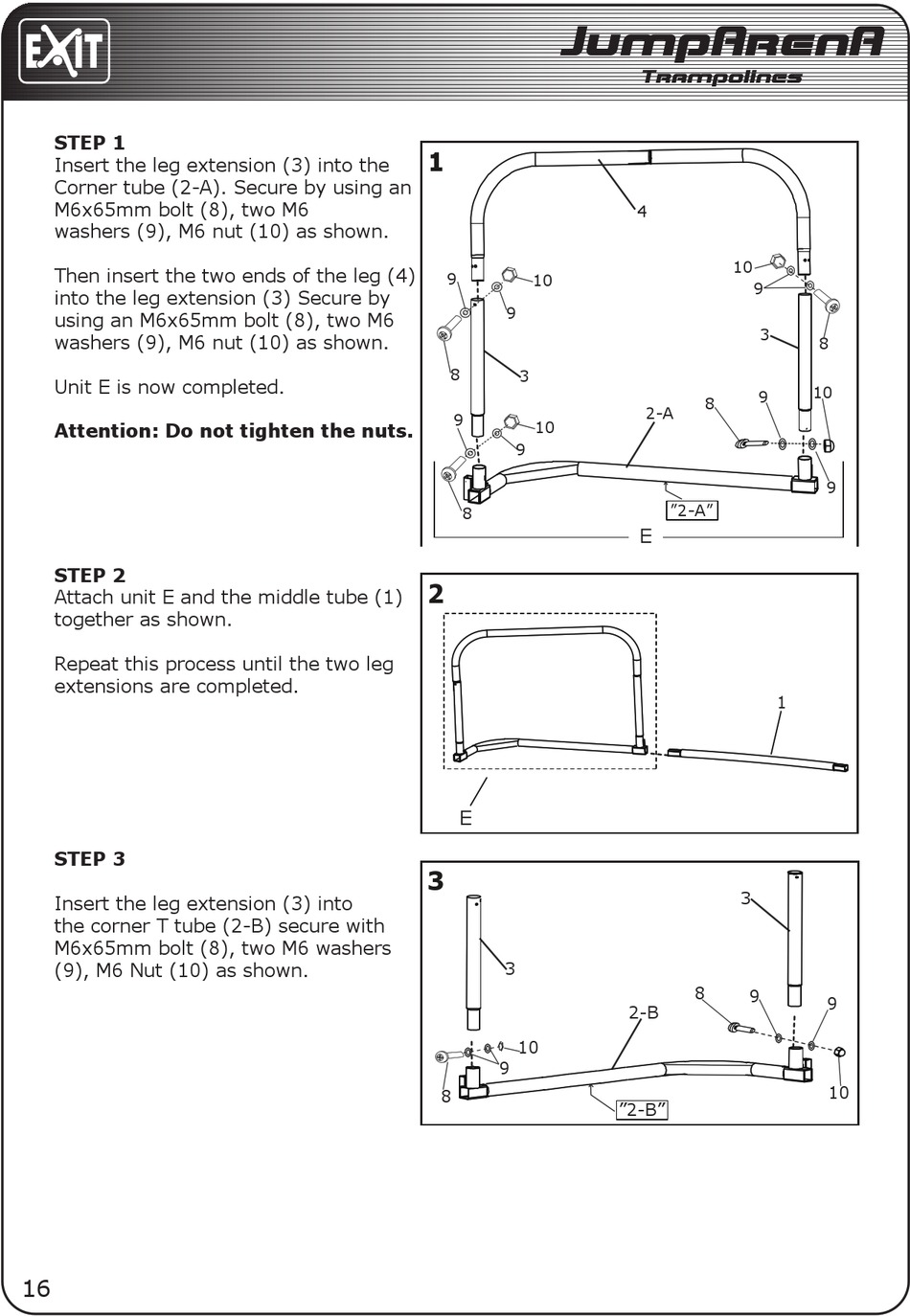

STEP 1
Insert the leg extension (3) into the
Corner tube (2-A). Secure by using an
M6x65mm bolt (8), two M6
washers (9), M6 nut (10) as shown.
Then insert the two ends of the leg (4)
into the leg extension (3) Secure by
using an M6x65mm bolt (8), two M6
washers (9), M6 nut (10) as shown.
Unit E is now completed.
Attention: Do not tighten the nuts.
STEP 2
Attach unit E and the middle tube (1)
together as shown.
Repeat this process until the two leg
extensions are completed.
STEP 3
Insert the leg extension (3) into
the corner T tube (2-B) secure with
M6x65mm bolt (8), two M6 washers
(9), M6 Nut (10) as shown.
16
JumpArenA
1
9
10
9
8
3
9
10
9
8
2
2
2
E
3
3
10
9
8
Trampolines
4
10
9
3
9
8
2-A
"2-A"
E
1
3
8
9
2-B
"2-B"
8
10
9
9
10
