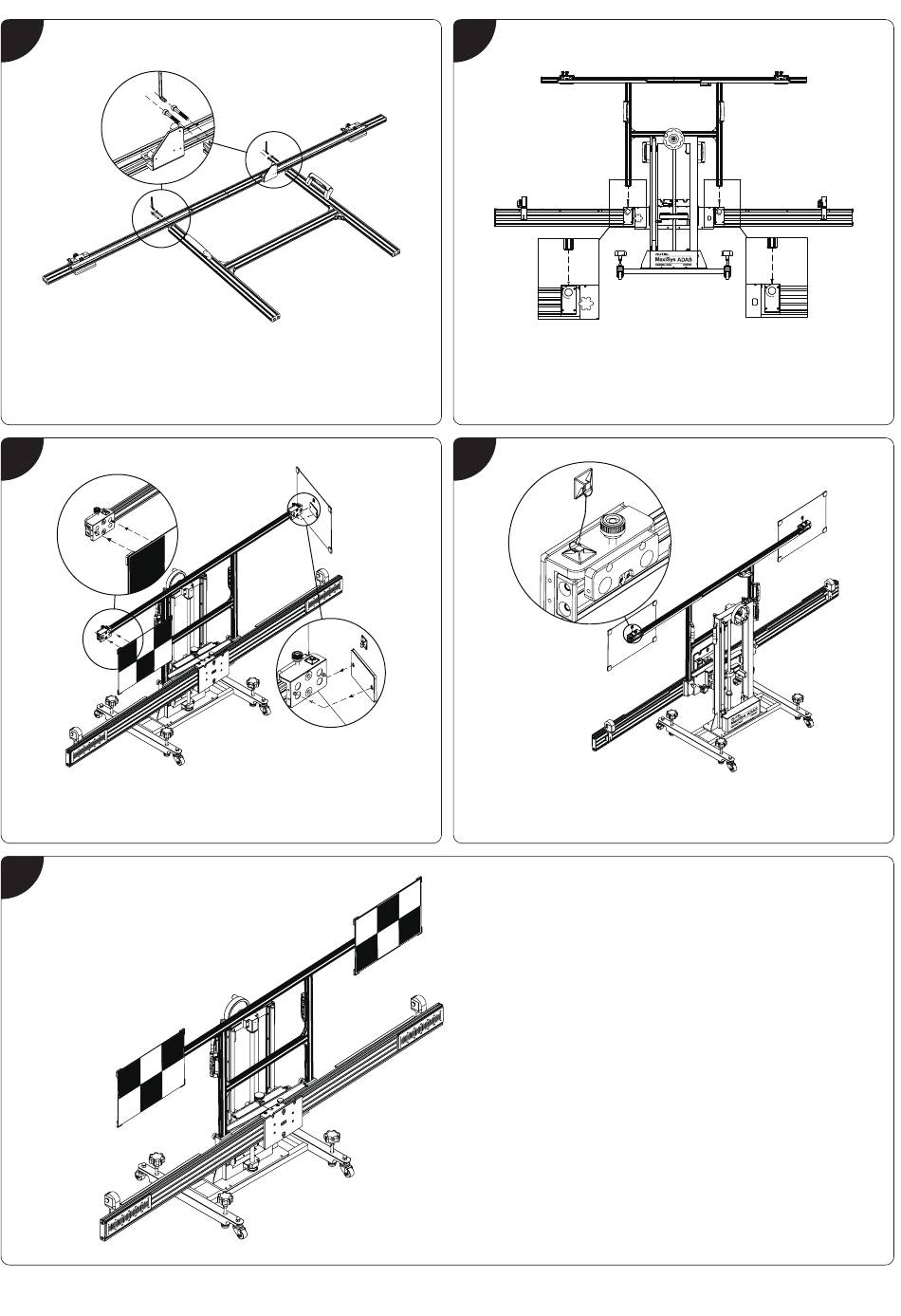

Autel MaxiSys ADAS Assembly Instruction page 2

3
Align the four screw holes on the slide bar with those on the left
and right poles. Insert bolts (M6x40) and tighten with the hex
L-wrench (5mm).
5
Attach the target board to the slide bar with two pins on the slider
inserted into the holes on the back of the target board.
7
4
Insert the two poles into the slots on each side of the lifter of the
calibration frame. Tighten the hand knobs adjacent to the slots
and secure the target board holder to the lifter.
6
Use the locker on the slider to secure the target board to the slide
bar.
Note: To move target board, turn hand knob counter-
clockwise to loosen board, slide it to the appropriate
position on slide bar and secure target board by
turning knob.
