Autel MaxiSys ADAS Assembly Instruction

Email: sales@autel.com
Web: www.autel.com
Thank you for purchasing this Autel diagnostic tool. This tool, manufactured to a high standard will if used according to the
instructions and properly maintained give you years of trouble-free performance.
WARNING:
• Serious or fatal crushing injuries can occur from frame tip-over. To prevent the calibration frame from tipping over it must be
secured to the ground during the assembly.
• Improper assembly of the calibration frame may result in permanent damage to the frame and may render it inoperable and/or
unsafe.
Parts List
Slide Bar
06022
Bolt
(M6x40)
060026
8pcs

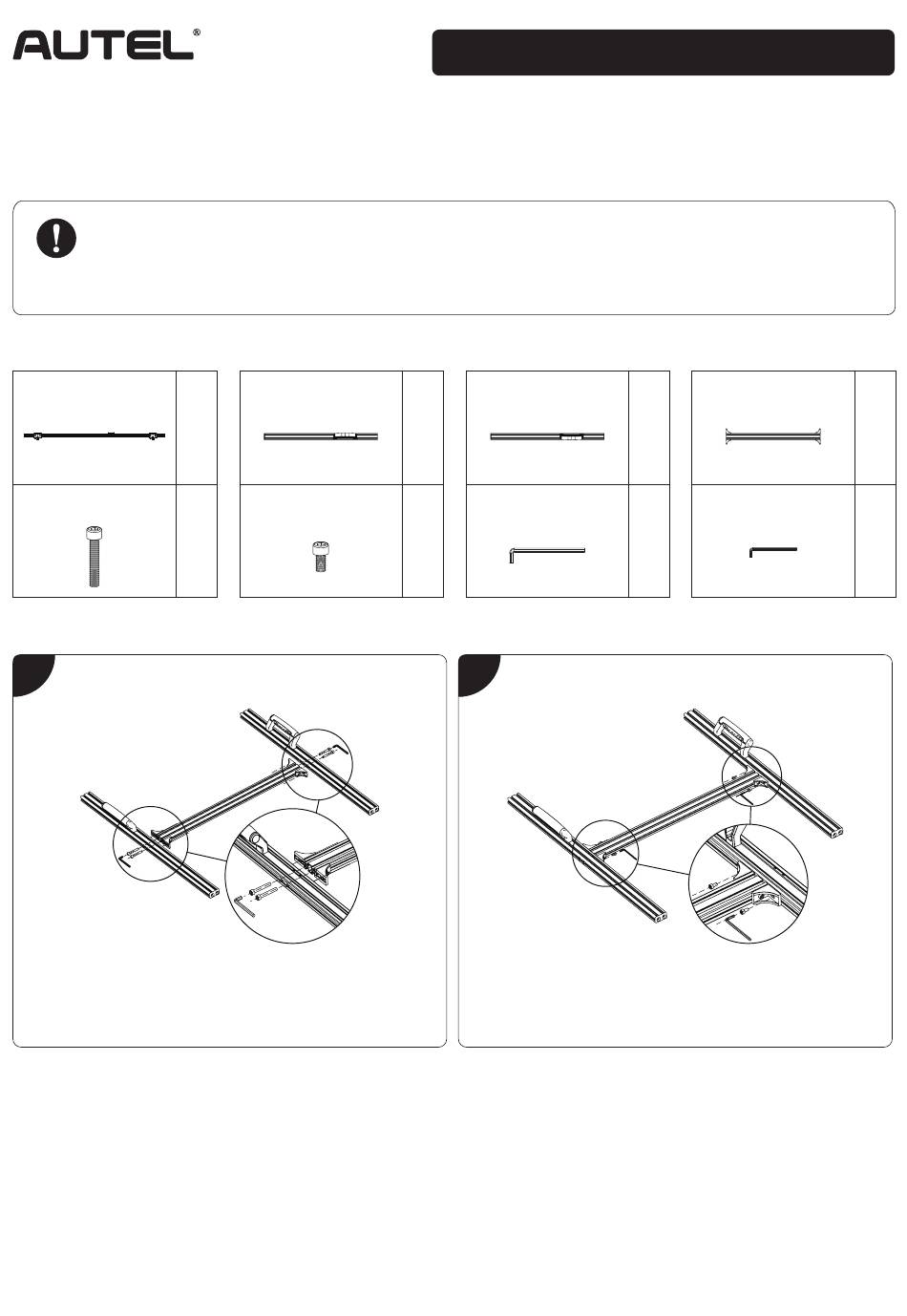

Assemble the Target Board Holder
1
Place the left and right poles on a flat, level surface. Align the
screw holes on the connecting bar with those on the left and right
poles. Insert the bolts (M6x40) and tighten with the hex L-wrench
(5mm).
Left Pole
060023
1pc
Bolt
(M4x8)
060027
ASSEMBLY INSTRUCTION
MaxiSys ADAS (Target Board Holder)
Right Pole
060024
1pc
Hex L-wrench
(5mm)
060028
4pcs
2
Insert the bolts (M4x8) into four screw holes on bar brackets and
tighten with the hex L-wrench (3mm). Ensure the connecting bar
is firmly attached to the left and right poles.
Connecting Bar
060025
1pc
Hex L-wrench
(3mm)
060029
1pc
1pc
1pc
