Summary of Contents for Insportline ProfiStair

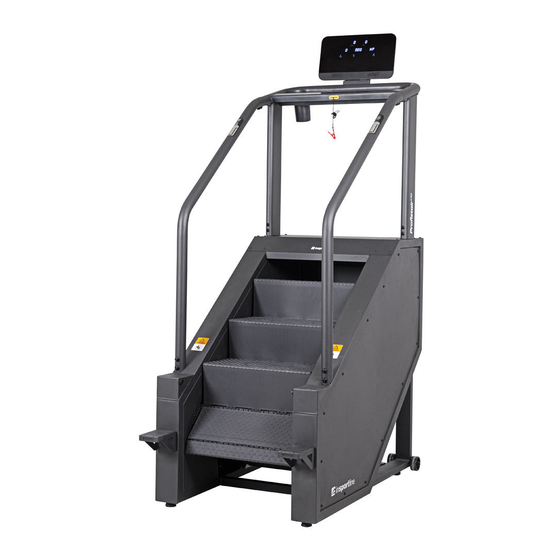

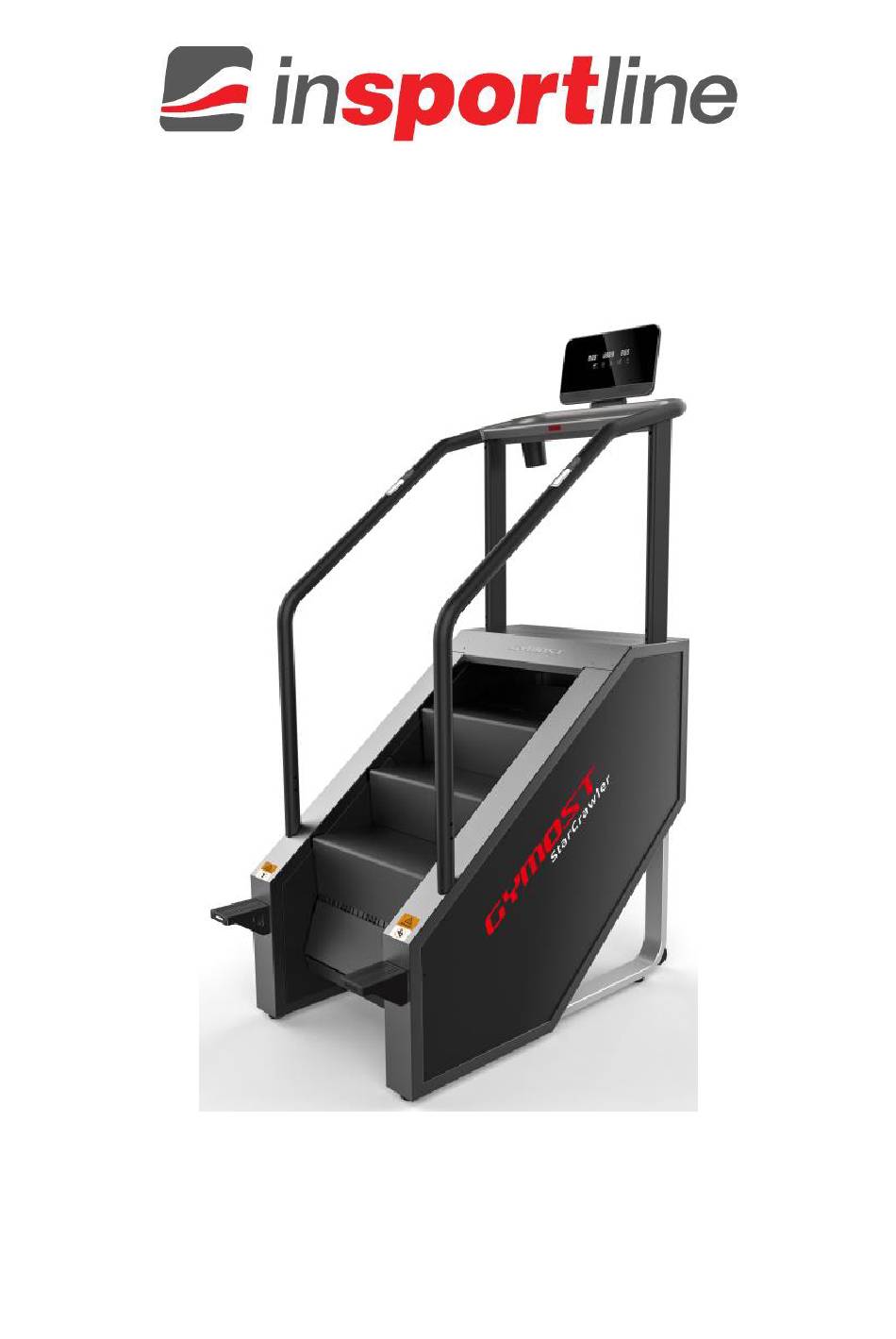

- Page 1 USER MANUAL – EN IN 20216 Fitness stepmill inSPORTline ProfiStair...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PRODUCT DESCRIPTION ........................4 SPECIFICATIONS ........................... 5 ASSEMBLY ............................. 5 WARM UP ............................... 9 CONSOLE ............................. 10 PROGRAMS ............................13 COMMON ERRORS AND SOLUTIONS ....................14 TRANSPORTATION ..........................15 CONENCTION............................15 USE ............................... 15 ENVIRONMENT PROTECTION ......................17 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS .......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read this manual carefully before first use and retain it for future reference. • Use the product only according to this manual and for its intended purpose. Do not modify the product in any way. • WARNING! Before maintenance, always unplug the device from electrical outlet to prevent burning or electrocuting yourself. -
Page 4: Product Description
• Max. user weight: 160 kg • Category: S (according to EN957) suitable for commercial and professional use • WARNING! The heart rate frequency monitoring may not be completely accurate. Overexertion during training can lead to a serious injury or even death. If you start to feel faint, stop the exercise immediately. -
Page 5: Specifications
SPECIFICATIONS Weight limit 160 kg Dimensions 1464 x 810 x 2555 Stairs dimensions 550 x 240 x 180 Speed 1–10 levels (14-140 steps / min) Number of steps The company reserves the right to change specifications. ASSEMBLY The package contains these parts. Unfold all parts on a clean, flat surface and check that no parts are missing. - Page 6 ASSEMBLY MATERIAL Screw M8x15 – 26 pcs Allen key S6 – 1 pcs T screwdriver – 1 pcs Curved gasket Screws ST4x16 Phillips screwdriver STEP 1 Fasten the pedals with 6 M8x15 screws.
- Page 7 STEP 2 Connect the communication cables and fasten the posts with 8 M8x15 screws, but do not tighten the screws yet. STEP 3 Fasten the handles with 4 M8x15 screws and 4 curved washers, but do not tighten the screws yet.
- Page 8 STEP 4 Connect the console and handles. Connect the cables and fasten with 4 M8x15 screws. Do not tighten the screws yet. STEP 5 Attach the console bracket with 4 M8x15 screws, connect the communication cables from the console, and secure the console with the ST4x16 screws.
-
Page 9: Warm Up
STEP 6 Tighten all screws. WARM UP This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below. -
Page 10: Console
CONSOLE Display Quick speed change Programs Stop Start Program change Speed + and - CONSOLE DESCRIPTION • P0 is user program, P1 – P36 are preset programs, 3 user programs, FAT program • 0,56 inches display, 8 buttons • Speed 1–10 (14–140 steps / min) •... - Page 11 DISPLAY SPEED Display speed PULSE Display current heart rate TIME/STEP display time and number of steps CALORIES Display burned calories (only orientational) STY HGT Display height BUTTON FUNCTION PROG Press button to choose program P1-P36, U01, U02, U03, FAT MODE In the manual program, use the button to toggle between counting calories, time, time in programs P01-P36 (default: 30 min) START/STOP...
- Page 12 • If you disconnect the Safety Key at any time, E-07 is displayed, accompanied by a beep. The stairs stop. • BODY FAT TEST: Use the PROG button to select FAT, the CALORIES window displays the adjustable values. Use MODE to set the value, the PULSE window displays the parameter, and the + and - buttons to adjust the parameter.
-
Page 13: Programs
• Speed is not controlled manually but automatically according to heart rate. BLUETOOTH For connection, refer to the application's manual. PROGRAMS Program Level SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED... -
Page 14: Common Errors And Solutions
SPEED SPEED SPEED COMMON ERRORS AND SOLUTIONS Error / Cause Solution Sign Not plugged in / Power switch is off Plug in / switch on The system Safety key not connected Reinsert the key Damaged transformer Check / replace the transformer working Short circuit Check the wiring... -
Page 15: Transportation
TRANSPORTATION Before moving, make sure that the machine is turned off and not connected to the electrical circuit. Then lift the stairs if they are too heavy, ask another person for help. Move the stairs on the transport wheels. CONENCTION Use only a properly grounded 220-240 V outlet for connection. - Page 16 7. Heart rate: After you start the stairs, grasp the sensors on the handles and the heart rate will appear after a few seconds. WARNING! The heart rate frequency monitoring may not be completely accurate. Overexertion during training can lead to a serious injury or even death. If you start to feel faint, stop the exercise immediately.
-
Page 17: Environment Protection
CONSOLE ERROR Description Solution Bad communication 3 beeps and error code is displayed. Communication between the motherboard Communication between motherboard and and the console is faulty when turned on. console is wrong. Check cable connections and replace cables if necessary. Poor connection of motor cables A beep sounds 9 times and an error code is displayed. - Page 18 Code, and Act No. 634/1992 Coll., Consumer Protection, as amended, also in cases that are not specified by these Warranty rules. The seller is SEVEN SPORT s.r.o. with its registered office in Strakonická street 1151/2c, Prague 150 00, Company Registration Number: 26847264, registered in the Trade Register at Regional Court in Prague, Section C, Insert No.
- Page 19 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
