Anest Iwata WA 200 Series Instruction Manual

TROUBLESHOOTING
Spray Pattern Problems
1. Air is mixed into fluid passage from fluid
Fluttering needle packing (15).
2. Air is mixed from between fluid nozzle (2)
and tapered seat body.
1. Paint buildup on air cap (1), partially
Crescent clogs horn holes. Air pressure from
both horns differs.
1. Paint buildup on air cap, partially clogs horn
Inclined holes or air cap center hole causes damage.
2. Loose fluid nozzle.
1. Fluid output too high.
Split 2. Paint viscosity too low.
Heavy 1. Fluid output too high.
Center 2. Paint viscosity too low.
1. Fluid nozzle and fluid needle set are
Spit not seated properly.
2. The first-stage travel of trigger decreases.
3. Paint buildup inside air cap set.
PROBLEMS AND REMEDIES
Problem Where it Parts to be
occurred checked
Air leaks Piston Piston
(from tip
of air cap) Air valve seat set
O ring
Paint Fluid nozzle Fluid nozzle -
leaks fluid needle set
Fluid nozzle -
gun body
Fluid needle -
packing set
Fluid needle Needle packing
packing set - needle set
Packing seat
Paint does not Tip of gun Fluid adj. knob
flow
Tip hole of nozzle
Paint filter
ANEST IWATA Europe s.r.l.
46, Corso Vigevano
10155 Torino - Italy
Tel. +39 011-24 80 868
Fax +39 011-85 19 44
S
EDI
www.anest-iwataeu.com
E :
UROPEE e-mail: info@anest-iwataeu.com
ANEST IWATA Scandinavia A.B. ANEST IWATA France S.A.
25 Rue de Madrid - BP 7405
Ögärdesvägen 6C
38074 Saint Quentin Fallavier
433 30 Partille
Cedex Centre Evolic 7405
Tel. +46 (0)31-340 28 60
Tél. +33 (0)4-74 94 59 69
Fax +46 (0)31-340 28 69 Fax +33 (0)4-74 94 34 39
info@anest-iwata.fr
info@anest-iwata.se
Remedies
1. Thigten fluid needle packing (15).
or replace packing if damaged.
2. Thigten fluid nozzle (2).Or remove
fluid nozzle (2) and clean its seat.
1. Remove obstructions from horn holes.
But do not use metal objects to clean
horn holes.
1. Remove obstructions.
Replace if damaged.
2. Remove fluid nozzle, clean seated section
1. Adjust fluid adj. knob or
pattern adj. knob.
2. Adjus paint to increase viscosity.
1. Increase fluid output.
2. Reduce viscosity.
1. Clean or replace fluid nozzle and fluid
needle set.
2. Replace fluid nozzle and fluid needle set.
3. Clean air cap set.
Cause Remedy
Retighten Adjust Clean Replace
*Dirt or damage on seat x
*Dirt or damage on seat x
*Wear on air valve spring
*Damaged or deteriorated
*Dirt, damage, wear
on seat x
*Loose fluid needle
adj. knob x
*Wear on needle spring
*Insufficient tightening x
*Dirt or damage on seat x
*Needle does not return due
to packing set too tight x
*Needle does not return due
to paint buildup
on fluid needle x x
*Wear x
*Insufficient tightening x
*Insufficient opening x
*Clogged x
*Clogged x
ANEST IWATA (U.K.) LTD ANEST IWATA Deutschland
Unit 2, Cedar Trade Park,
Trollingerweg 14
Ferndown Industrial Estate,
D-74360 Ilsfeld-Auenstein
Wimborne, Dorset - BH21 7SB U.K.
Telefon-Fax:+49 (0)7062-62 290
Tel. +44 (0)1202 - 895999
Handy: +49 (0)172-62 74 542
Fax: +44 (0)1202 - 895666
f.e.anest-iwata@t-online.de
enquiries@anest-iwata.co.uk

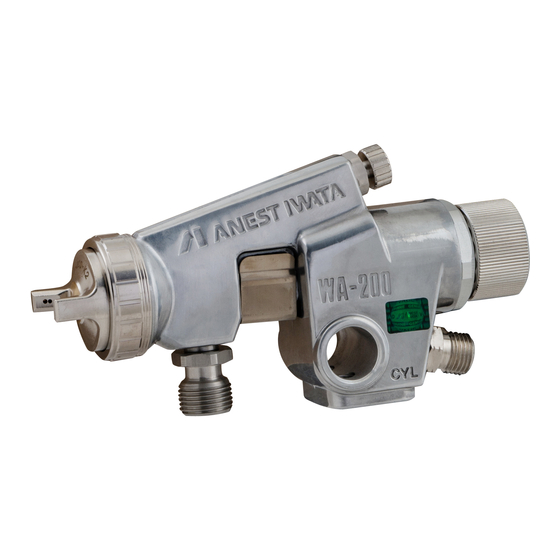

WA 200 AUTOMATIC SPRAY GUN
Before use, adjustment or maintenance, it is important to read this instruction manual very carefully.
GB
This manual must be stored in a safe place for any future reference that may be necessary.
This automatic spray gun should be operated only by an adequately trained operator for safe use and maintenance of the equip-
ment. Any misuse or handling other than those indicated in this Instruction Manual is not covered by guarantee.
ANEST IWATA disclaims all responsibility for any accident or damage caused by failure observing the operational and safety
procedures as from this manual. In the interest of user friendliness, this manual contains information in a brief and concise form.
For any additional information you may require regarding the automatic spray gun operations, or if any missing parts or any dam-
age during transportation is found, or details of training courses, please contact your nearest ANEST IWATA Company (see last
cover page).
MAIN SPECIFICATIONS
Max. Working Pressure:
Temperature range:
Model Nozzle
Orifice Consumption
mm
WA- 200-08 0.8
WA- 200-102 1.0
WA- 200-122 1.2
WA- 200-08P 0.8
x
WA- 200-102P 1.0
x
WA- 200-122P 1.2
x
WA- 200-152P 1.5
WA- 200-202P 2.0
x
WA- 200-251P 2.5
WA- 200-066P FT 0.6
x
WA- 200-086P FT 0.8
WA- 200-106P FT 1.0
WA- 200-126P FT 1.2
x
NOTE: for SPARE PARTS list see on page 3.
x
Fluid nozzle Fluid needle set
Orifice Mark Mark
x
mm
1.2 W200/12 WA12
1.5 W200/15 WA15
2.0 W200/20 WA20
x 2.5 W400/25 WA25
DIMENSIONS
x
B
C
E
A B C D E F G H J
30.5 47.5 89.5 - 149.5 23.5 35.5 40.5 85.5
Manufactured by: ANEST IWATA Corporation 1-9-14, Ebisuminami, Shibuya-ku, Tokyo, Japan
IMPORTANT
6.8 bar Noise Level (LAeqT)
5~40°C
Air Fluid Pattern Air Cap
Output Widht Set
l/min ml/min mm
270 255 280 LV2
270 255 280 LV2
270 255 280 LV2
530 500 400 G2P
530 500 400 G2P
530 500 400 G2P
330 270 340 K2
360 400 320 R2
360 500 330 WI
170 80 140
185 100 150
FT6
200 120 160
220 140 180
Instruction Manual
81.2 dB (A)
Weight Atomizing
air pressure
g bar
2.0
500
3.0
0,14
0,16
550
0,18
0,20
