1ST PRINTING MAY 01

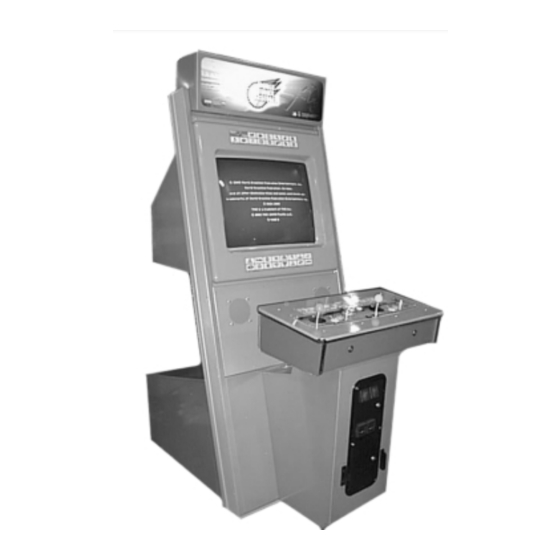

Upright Version
Owner's Manual
SEGA ENTERPRISES, INC. USA
MANUAL NO. 999-1288

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the World Series Baseball Super Major League and is the answer not in the manual?

Questions and answers

Related Manuals for Sega World Series Baseball Super Major League

Summary of Contents for Sega World Series Baseball Super Major League

  • Page 1 1ST PRINTING MAY 01 Upright Version Owner’s Manual SEGA ENTERPRISES, INC. USA MANUAL NO. 999-1288...
  • Page 2 Warranty Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman- ship or materials under normal operating conditions. This also certifies that all Interactive Control Assemblies are to be free from defects in workmanship and materials under normal operating condi- tions.
  • Page 3 BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: To maintain the safety: To ensure the safe usage of the product, be sure to read the following before using the product. The following instructions are intended for the users, operators and the personnel in charge of the operation of the product. After carefully reading and sufficiently understanding the warning displays and cautions, handle the product appropriately.
  • Page 4 SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: 1. HANDLING PRECAUTIONS ................2 2. SPECIFICATIONS ....................3 - 4 3. CONTENTS OF GAME ..................5 - 10 4. TEST MODE ......................11 - 19 A.SYSTEM MENU B.GAME TEST MODE a.INPUT TEST Switch input test is performed.

  • Page 6: Handling Precautions

    1. HANDLING PRECAUTIONS To prevent electric shock or IC Board malfunctioning, be sure to turn off the power for the cabinet when installing or removing the IC Board. Extraneous matter such as dust on the IC Board can cause the IC Board to generate heat and result in a fire due to short circuit, etc.

  • Page 7: Specifications

    2. SPECIFICATIONS Monitor Position MONITOR Horizontal Synchronous Frequency HORIZONTAL 15/31 kHz CONTROL PANEL NEW ASTRO CITY, NAOMI CABINET, NET CITY, BLAST CITY (PART NO. HOT-20011 or NOA-20010-01) 1P 2P BBUTTON BBUTTON START ABUTTON ABUTTON ANALOG BAT MECHA ANALOG BAT MECHA LEVER LEVER PLAYER 1...
  • Page 8 Removing and Attaching the BAT MECHA If you need to remove the BAT MECHA as in the case of a failure, open the control panel base and remove the BAT MECHA through the following procedure. To reinstall the BAT MECHA, reverse the removing procedure, being certain that the BAT MECHA is faced in the correct direction.

  • Page 9: Contents Of Game

    3. CONTENTS OF GAME • This is a sports action game where the Major League Baseball in the United States of America was taken as a subject matter. • In this game, the following teams appear: 14 American and 16 National teams, and two all-star teams from the two leagues.
  • Page 10 • The settings in GAME ASSIGNMENTS in the Test Mode control how the game ends: EXTRA INNING: If this is ON, the extra part of the baseball game continues to a maximum of 12th innings. If this is OFF, the baseball game ends when the bottom of the ninth inning ends (even if the score is even, i.e., the game is drawn).
  • Page 11 Pitching Gauge 1P 123000080 RECORD 200378000 2P 8921000 Batter's (Batting) Team Pitcher's (Fielding) Team A B C X Y Z By operating the lever, Select the course of the move the batting ball using the lever. cursor to aim at the ball.
  • Page 12 Fielding Team Fielding Screen Using the lever, move a Landing Point fielder to the expected landing point of the ball. By pressing the B Button, you 1P 123000080 RECORD 200378000 2P 8921000 can replace the field you want to move. When approximating to the ball, the fielder automatically catches the ball.
  • Page 13 Pitch Type Marker The pitch type marker shows the available pitch types. FAST BALL FAST BALL SLIDER S C R E W SLIDER S C R E W BALL BALL SINKER SINKER CURVE CURVE CHANGE-UP CHANGE-UP FORKBALL FORKBALL ETC. ETC. For right-hander For left-hander Original ability of pitcher...
  • Page 14 NAMES AND ABBREVIATIONS OF THE TEAMS AND BALLPARK NAMES APPEARING IN THE GAME The team names are listed alphabetically. American League National League 1. Anaheim Angels/ANA 1. Arizona Diamondbacks/ARI :Edison International Field :BankOne Ballpark 2. Baltimore Orioles/BAL 2. Atlanta Braves/ATL :Oriole Park at Camden Yards :Turner Field 3.

  • Page 15: Test Mode

    4. TEST MODE A. SYSTEM MENU When settings are changed in SYSTEM ASSIGNMENTS, COIN STOP ASSIGNMENTS, and GAME ASSIGNMENTS of GAME TEST MODE, be sure to exit from the test mode of SYSTEM MENU screen. The contents IMPORTANT of setting changes are stored in the IC on the BOARD when exiting from the Test Mode.

  • Page 16: B.game Test Mode

    B. GAME TEST MODE By selecting "GAME TEST MODE" and pressing the TEST Button on the System Test Menu Screen, the Test Mode Menu Screen (Game Test Mode Menu Screen) appears, which is unique to this game. GAME TEST MENU INPUT TEST GAME ASSIGNMENTS VOLUME SETTING...

  • Page 17: A.input Test

    a. INPUT TEST This test checks the input devices. Using this screen, check the input devices periodically. Pressing the TEST and SERVICE Buttons together returns you to the Game Test Menu Screen. INPUT TEST 1P_START :OFF 2P_START :OFF 1P_ABUTTON:OFF 2P_ABUTTON:OFF 1P_BBUTTON:OFF 2P_BBUTTON:OFF TEST-SW :OFF SERVICE-SW:OFF 1P_LEVER:(80,80) 2P_LEVER:(80,80)

  • Page 18: B.game Assignments

    b. GAME ASSIGNMENTS Once you have made change to the settings, select and run EXIT and STOP exit the GAME TEST MODE. The new settings do not take effect until this mode is exited. IMPORTANT This screen lets you make change to the game difficulty and other settings. Changing Procedure Press the SERVICE Button to move the arrow to the item to which you want to make change.
  • Page 19 • DIFFICULTY: Set the difficulty by changing the pitching speed of the pitcher or modifying the CPU's routine of thinking. Set one of the following five levels: VERY EASY - EASY - NORMAL - HARD - VERY HARD Easier Harder •...
  • Page 20 c. VOLUME SETTING Normal play is guaranteed only after all the input devices have been set STOP up properly. Be sure to make the proper settings before you begin demonstration for IMPORTANT the selling purpose. Once you have made change to the settings, select and run EXIT WITH SAVE and exit the GAME TEST MODE.
  • Page 21 Setting Procedure Move the lever and batting switch fully in the movable range. Release the lever and batting switch, and leave them unloaded. Move Lever Horizontally (LEVER-H) Move the lever fully to the left or right, and then leave it unloaded. Move Lever Vertically (LEVER-V) Move the lever fully to the top or bottom, and then leave it unloaded.
  • Page 22 d. BOOKKEEPING This screen lists the data to be saved. Pressing the TEST Button returns you to the Game Test Menu Screen. BOOKKEEPING NUMBER OF GAMES TOTAL PLAY TIME 0D 00H 00M 00S AVERAGE PLAY TIME 00M 00S LONGEST PLAY TIME 00M 00S SHORTEST PLAY TIME 00M 00S...

  • Page 23: E.backup Data Clear

    e. BACKUP DATA CLEAR BACKUP DATA CLEAR YES (CLEAR ) -> NO (CANCEL) SELECT WITH SERVICE BUTTON PRESS TEST BUTTON BACKUP DATA CLEAR Screen This screen is used to initialize BOOKKEEPING and the High Score Ranking. To clear the data about the coins/credits, you have to run BACKUP DATA CLEAR in the SYSTEM TEST MODE.

  • Page 24: Game Board

    5. GAME BOARD Do not expose the Game Board so as to avoid causing an accident or malfunctioning. Static electricity discharge can damage electronic parts on the IC Board. Before starting work by opening the Shield Case Lid, be sure to touch grounded metallic surfaces to discharge physically charged static electricity.
  • Page 25 442-00067B (STICKER 840-0067B) Attached place PART NO. DESCRIPTION 840-0001F ASSY CASE NAO DIMM BD COM KEY CHIP 840-0067B DIMM BD NAO MB2K2...

  • Page 26: Soft Kit

    6. SOFT KIT Handling the GD-ROM Disk STOP Do not contaminate the disks with your IMPORTANT fingerprints or dust particles. Contaminated disks may lower audio and video quality. When cleaning the disks, do not use volatile chemicals (benzine, thinner, etc.), cleaning sprays, and antistatic agents.
  • Page 27 PART NO. DESCRIPTION 610-0624-0010 GD SOFT KIT MB2K2 ENG GDS-0010 * NAOMI GDROM MB2K2 KEY CHIP 420-6621-0010E SERVICE MANUAL MB2K2 ENG 253-5507 DISK CASE WITH IC HOLDER...

  • Page 28: Coin Selector

    7. COIN SELECTOR HANDLING THE COIN JAM If the coin is not rejected when the REJECT button is pressed, open the coin chute door and open the selector gate. After removing the jammed coin, put a normal coin in and check to see that the selector correctly functions.
  • Page 31 OPTIONAL DOLLAR BILL ACCEPTOR THE COIN DOOR ASSEMBLY USED ON WORLD SERIES 2001 UPRIGHT COMES EQUIPPED TO ACCEPT A DOLLAR BILL ACCEPTOR. ALL NEEDED WIRING CONNECTIONS ARE CONVIENENTLY LOCATED INSIDE THE GAME FOR THIS APPLICATION. THE COIN DOOR CAN ACCCOMMODATE THE FOLLOWING VALIDATOR(S): FORWARD-MOST Mars 2000 series...

  • Page 32: Design Related Parts

    8. DESIGN RELATED PARTS ITEM NO. PART NO. DESCRIPTION 999-1216 MARQUEE WORLD SERIES BASEBALL 999-1217 DECAL INSTR. #1 UPPER BEZEL WS BASEBALL 999-1218 DECAL INSTR. #2 UPPER BEZEL WS BASEBALL 999-1219 DECAL CTRL PNL WS BASEBALL...

  • Page 33: Parts List (Control Panel)

    9. PARTS LIST (CONTROL PANEL) 1 TOP ASSY (D-1/2)
  • Page 34 1 TOP ASSY (D-2/2) ITEM NO. PART NO. DESCRIPTION 999-1198 HEADER GLASS LOC. PURCHASE FLUORESCENT FIXTURE 24” 20 WATT 999-1189 BEZEL NAOMI COBALT BLUE 999-1187 MONITOR COVER ASSY NOA-1202 SPEAKER BOX 999-1196 UPRIGHT LEFT - SILVER METALIC NOT SHOWN 999-1195 UPRIGHT RIGHT - SILVER METALIC 999-1190 SERVICE COMPARTMENT DOOR...
  • Page 35 2 ASSY CTRL PNL 2A4B2S MB2K2 ENG (NOA-20010-01) (D-1/2)
  • Page 36 2 ASSY CTRL PNL 2A4B2S MB2K2 ENG (NOA-20010-01) (D-2/2) ITEM NO. PART NO. DESCRIPTION HOT-2023 CTRL PNL BASE 2A4B2S NOA-2025-01 CTRL PNL PLATE 2A4B2S ENG 610-6723-4B02 ASSY ANALOG JOY 4B PINK 610-6723-4B01 ASSY ANALOG JOY 4B GREEN 610-0409 ASSY BAT MECHA 999-1290 PUSHBUTTON RND YELLOW W/MICRO (2 PER) 999-1086...
  • Page 37 3 SW UNIT ITEM NO. PART NO. DESCRIPTION LOC. PURCHASE COIN METER 6 VOLTS LOC. PURCHASE PUSH BUTTON SW LOC. PURCHASE 5 K POTENTIOMETER & VOLUME KNOB...
  • Page 38 4 ELEC ASSY ITEM NO. PART NO. DESCRIPTION 840-0051D-01 ASSY CASE NAO DIMM BD US 600-7009-2500 ASSY RGB CA D-SUB 15P 2500MM 837-13551-92 I/O CONTROL BD FOR JVS 600-7141-0250 USB CABLE 250 CM (2 per) 400-5397-01 POWER SUPPLY LOC. PURCHASE FUSE BLOCK LOC.
  • Page 39 5 FAN UNIT ITEM NO. PART NO. DESCRIPTION LOC. PURCHASE 4” FAN 120 V LOC. PURCHASE ROCKER SW 15 AMP 999-1204 PLATE LINE CORD...

  • Page 40: Wire Color Code Table

    8. WIRE COLOR CODE TABLE THE WIRE COLOR CODE is as follow: PINK SKY BLUE BROWN PURPLE LIGHT GREEN Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters. BLUE YELLOW GREEN WHITE ORANGE...
