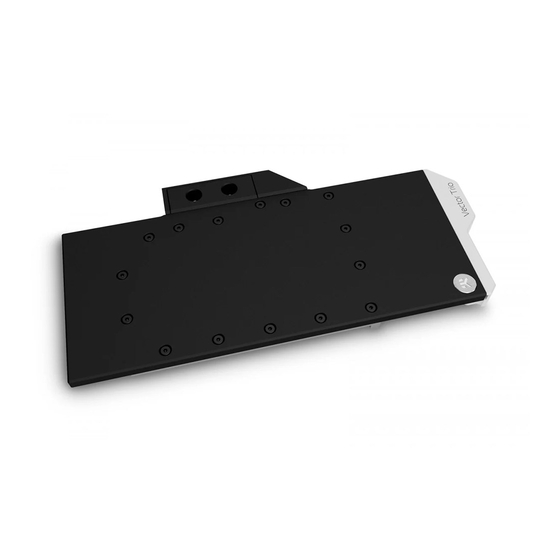

- Page 1 EK-Quantum Vector Trio RTX 3080/3090 D-RGB GPU WATER BLOCK USER GUIDE...
- Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process. Remove your graphics card from the computer for the safest mounting process to prevent any possible damage to your GPU or its circuit board (PCB).
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER AND BACKPLATE CUTTING AND PLACING THERMAL PADS CLEANING THE PCB APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE BLOCK TO THE GRAPHICS CARD CHECKING FOR CONTACT INSERTING THE GRAPHICS CARD INTO THE CHASSIS... -
Page 4: Box Contents
Universal Mounting Mechanism – You may not need every screw from this package. M2.5x4 AX1 Screw (20 pcs) M2.5x6 AX1 Screw (13 pcs) EK-Quantum Vector Trio RTX 3080/3090 D-RGB M2.5x8 AX1 Screw (2 pcs) PVC Washer M2.5 (20 pcs) EK-Plug G1/4 CSQ-Bridge (2 pcs) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 319.43 mm 134.62 mm 20.35 mm 105.62 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Technical Specification: Dimensions: (LxHxW) – 319.43 x 156.9 x 20.35 D-RGB (Adressable RGB) wire harness cable length: 335 mm D-RGB LED COUNT: 9 TERMINAL COVER D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) M4x20 DIN7984 SCREW STICKER GEFORCE TERMINAL STICKER EK... -
Page 7: Preparing The Graphics Card
PREPARING THE GRAPHICS CARD For this Step, you will need: Phillips Head Screwdriver STEP 1 REMOVING THE STOCK COOLER AND BACKPLATE Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Quantum Vector Trio RTX 3080/3090 D-RGB water block on the graphics card. -
Page 8: Cutting And Placing Thermal Pads
STEP 2 CLEANING THE PCB Carefully detach the original stock cooler after removing all screws that are securing it to the board. Wipe off the remains of the original thermal compound using a nonabrasive cloth or Q-tip, as shown in the sample image, until the components and circuit board are completely clean. -
Page 9: Applying Thermal Compound
STEP 2 RTX™ 3080/3090 Thermal Pad F 1.0 mm Once cut to size, thermal pads should be placed on the PCB, as illustrated below. EK made sure to provide you with more than an adequate quantity of thermal pads to complete this Step. STEP 2 APPLYING THERMAL COMPOUND STEP 1... -
Page 10: Installing The Water Block
INSTALLING THE WATER BLOCK STEP 1 PLACING THE BLOCK ON THE GRAPHICS CARD This procedure is the same for all full-cover water blocks. Carefully position the water block with preinstalled standoffs on the graphics card. During this process, make sure you have aligned mounting holes of the PCB with holes of the water block (the same applies to other tops). -
Page 11: Checking For Contact
Then repeat Steps from the previous section to re-attach the block. In case you fail to obtain good contact, please check again or contact our support service at https://www.ekwb.com/customer-support/. INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCIexpress expansion slot. -
Page 12: Installation Of Fittings And Tubing
INSTALLATION OF FITTINGS AND TUBING STEP 1 Screw-in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block(s) to the cooling loop. Do not forget to plug the remaining two openings with enclosed EK-Plug G1/4 or its equivalent. You can use any opening as an inlet/outlet port. -
Page 13: Testing The Loop
TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components. -
Page 14: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
