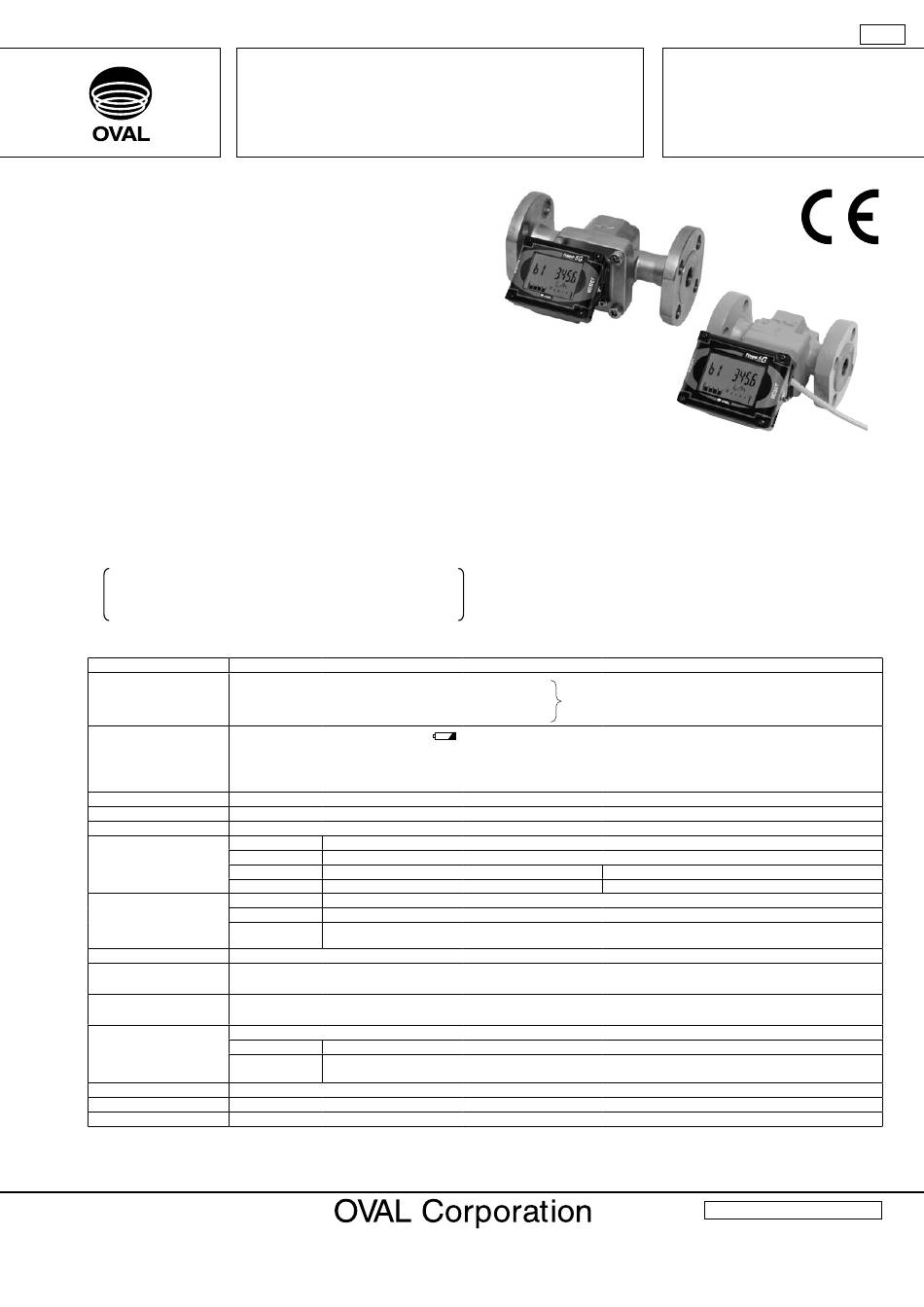

Oval FLOWPET-5G General Specification

■ GENERAL

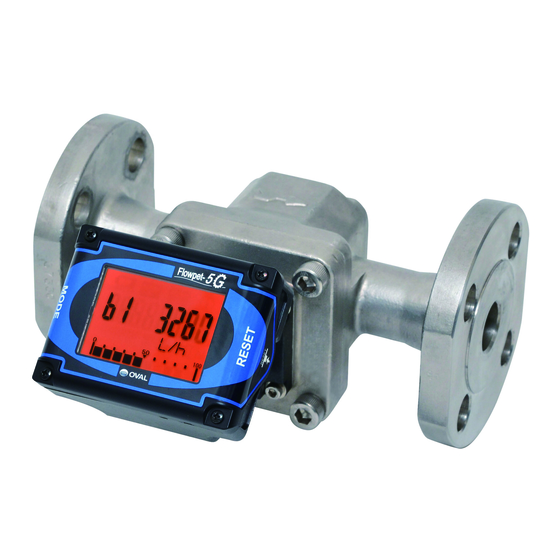

FLOWPET-5G is an OVAL flowmeter primarily intended for
use in boiler feed water and fuel oil metering applications.
Field proven accuracy and long life along with the best price/
performance and ease of use make this industrial meter ideal
as a dedicated tool for heat control.
■ FEATURES
1. Available in two product families - for water service and fuel
oil service.
2. Newly designed electronic register shows total flow and
instantaneous flow on a digital LCD at the touch of mode
select switch. The display angle can be adjusted for better
visibility (Adjustable range: 75 degrees upward, 75 degrees
downward).
3. The electronic register equipped models have an internal battery
(good for 8 years); eliminates the need for an external power
source. (Operation on external power source is recommended for
the pulse output models.)
4. Improved display capabilities compared to the previous EG
register.
・LCD character height increased to 14mm from 10mm
・Flow indicator allows user to intuitively check
instantaneous flow rate
■ Electronic Register Specifications
Item
① Accumulated total flow (8-digit)
② Instantaneous flow rate, L/h (mode: b1)
Display
③ Instantaneous flow rate, L/min (mode: b2)
④ Resettable total flow (zero start/zero resettable, mode: C) (7-digit)
① Low battery alarm (Low battery indicator "
② LCD with 7-segment, 14mm-high characters (background color: orange)
Function ③ Flow indicator (10-segment)
④ Simulated output: set any accumulated total or instantaneous flow rate for simulated outputs (unfactored, factored, and analog)
⑤ Protection against erroneous wire connection
Register accuracy Total flow: ±1 count, Instantaneous flow rate: within ±1% of full scale
Display orientation 150° range in 15° steps (From horizontal position: upward 75°, downward 75°)
Flow detection Magnetic sensor detects alternating magnetic fields. Response frequency 200Hz max.
Output type
Capacity
Pulse output
Pulse type
Pulse width
Output type
Alarm output Capacity
(optional)
Alarm
output point
Analog output 4 to 20mADC (load resistance: see P.11 "acceptable load resistance range")
1 meter of vinyl-sheathed, 4-conductor (individual elements 0.25mm
Cable
(Not furnished with models without pulse generator)
1 kilometer max. (when CVVS: 1.25 to 2.0mm
Transmission distance
If using both analog output and pulse/alarm output, the transmission distance is 100m max. (when CVVS: 1.25 to 2.0mm
Battery pack or external power source
Battery pack
Power source (※2)
External
power source
Ambient temperature range -10 to +60℃ (no condensing)
Material Polycarbonate (black)
Configuration IP65 (Install under the eaves)
※1: Adjustable with button operation within the range of 1 to 999ms in 1ms increments. Shown above are default settings.
※2: Display functions and pulse output functions can be used just with the dedicated battery pack without an external power source.
(With an external power source, there is no need to worry about the battery life. The power will be automatically switched to battery power in case of power shut-down.)
An external power source is necessary for analog output.
Head Office (Tokyo): Tel. +81 3-3360-5121 Fax. +81 3-3365-8605
International Sales Division Email: SK10@oval.co.jp
Overseas Branch Offices: Beijing, Seoul, Singapore, Taipei
Inexpensive PD for Boiler Feed Water and Oil
FLOWPET-5G
Open drain (equivalent of open collector)
Allowable current: 20mADC, Max. voltage applied: 30V
Factored
1ms, 50ms, 100ms, 250ms (※1)
Open drain (equivalent of open collector)
Allowable current: 20mADC, Max. voltage applied: 30V
Up to 2 points
("High alarm instant flow rate" or "Low alarm instant flow rate" can be set with any value for each output point)
2
Lithium battery: 3.6VDC 5400mAh Battery life: 8 years (varies with operating conditions) Storage life: 10 years
12 to 50VDC±10%
5. Factored pulse width is variable in 1ms steps with the front-
panel buttons (adjustable 1 to 999ms).
6. Simulated outputs available. (Pulse generator furnished
meter only)
Pulse and analog output can be simulated at any flow rate
for loop tests.
7. Reliable engineering-unit pulses for total flow and fast pulse
output are available.
8. Analog output available (2-wire, 4 to 20mA)
Description
Selectable with MODE switch
" flickers below 3.0V)
Unfactored
2ms (fixed)
2 , φ6.3 O.D.) cable furnished (standard)
cable is used)
Pulse output : Current capacity 10mA or more
Analog output : Current capacity 30mA or more
GENERAL SPECIFICATION
GS.No.GBB324E−1
2 cable is used)
http://www.oval.co.jp/english
Liquid
