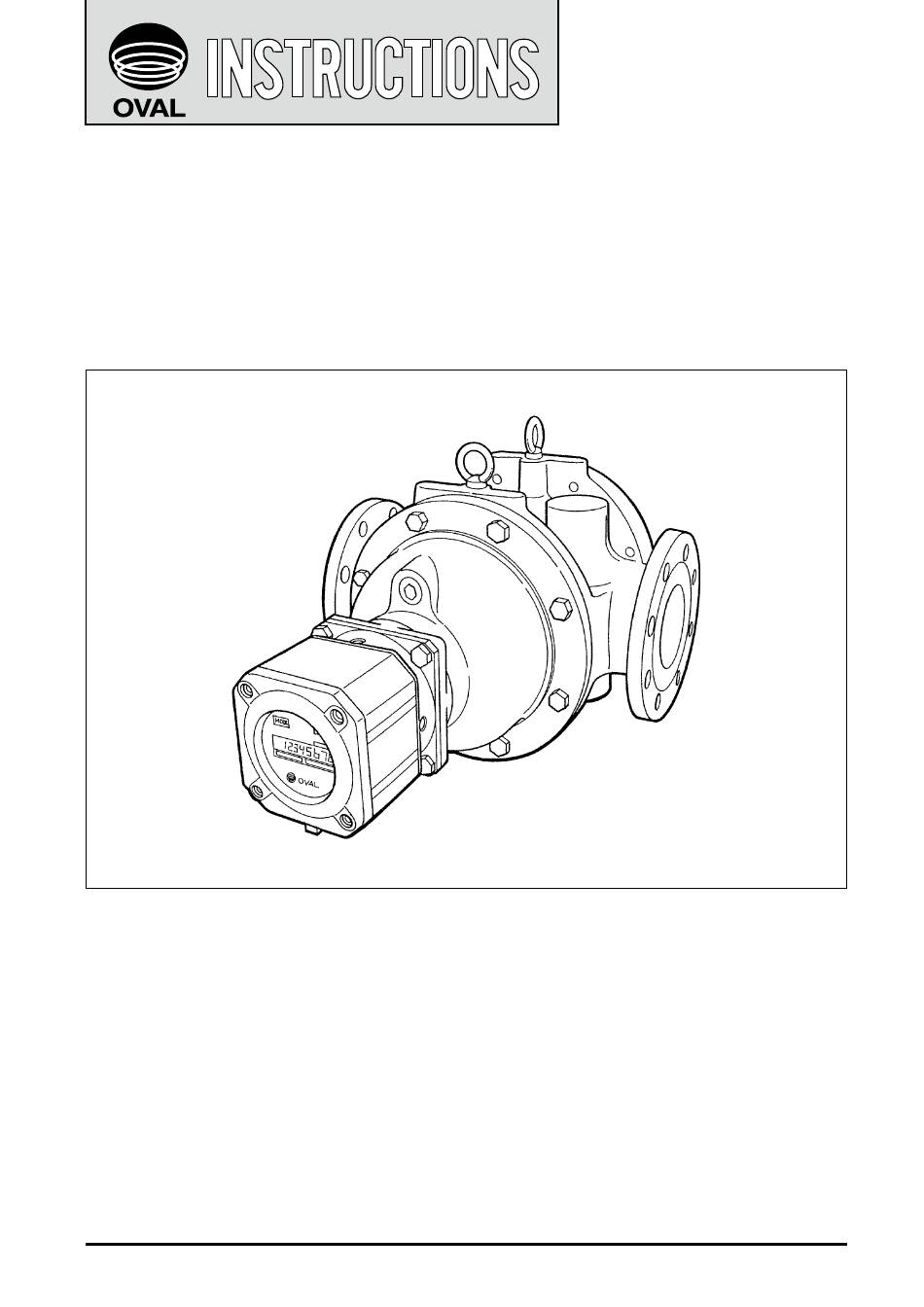

B-525-6-E
Ins. No.

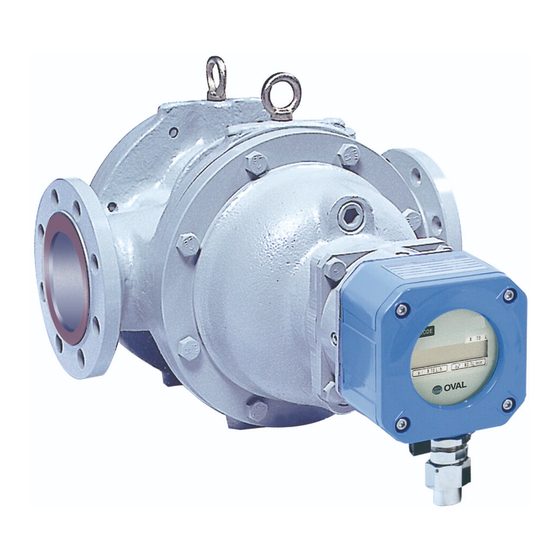

ULTRA UF-II
Meter Sizes : 80 and 81
Register Model : UA
U8 (smart type)
Every ULTRA UF-II (electronic register equipped flowmeter) is fabricated and shipped from our factory under
stringent quality control. In order to maintain its design performance throughout its life, this manual offers the
operator the necessary installation, operation and maintenance information.
Be well familiar with these instructions before you place the meter in service and retain this manual at the field
location for ready reference.
About Meter Size Designation
◆
◆
The size of OVAL positive-displacement flowmeters is basically identified by a two-
digit code. For details, see Product Code Explanation on page 42.


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULTRA UF-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oval ULTRA UF-II

Summary of Contents for Oval ULTRA UF-II

  • Page 1 Register Model : UA U8 (smart type) Every ULTRA UF-II (electronic register equipped flowmeter) is fabricated and shipped from our factory under stringent quality control. In order to maintain its design performance throughout its life, this manual offers the operator the necessary installation, operation and maintenance information.

  • Page 2: Table Of Contents

    B-525-6-E CAUTION: l marked sections apply to CONTENTS Smart type (register type: U8) . BEFORE YOU BEGIN ....................4 1.1 Confirming the Nameplate ......................4 1.2 Transportation Considerations .......................4 1.3 Storage Considerations .........................4 1.4 Structural Considerations ......................5 2. OPERATING CONDITIONS ..................5 2.1 Operating Conditions for Explosionproof Model ................6 3.
  • Page 3 B-525-6-E 11.1.2 Output Mode Setup Switch "SW1" ..................24 11.2 Individual Test Pin Functions ......................25 11.3 Accumulated Total and Instantaneous Flowrate Calculations ...........25 11.4 Parameter List ..........................26 11.5 Parameter Setup Procedure .......................28 11.5.1 Reconfiguration Procedure ....................28 11.5.2 Entering New Parameters ....................28 11.5.3 About Dummy Output Features (special functions) .............30 11.5.4 Parameter Initialization ......................30 11.5.5 About Error Messages ......................3...

  • Page 4: Before You Begin

    1.2 Transportation Considerations (1) To safeguard against damage during transit, transport the ULTRA UF-II to the installation site in the same container used for transportation from the factory if circumstances permit. (2) ULTRA UF-II is adjusted and inspected as an assembly consisting of the meter body, sensor and register.

  • Page 5: Structural Considerations

    MADE IN JAPAN MNPJ-237 2. OPERATING CONDITIONS OVAL Corporation MODEL To maintain the stated high accuracy and long service life of OVAL UF-II flowmeter, make sure TAG. No MAX PRESS. that flowrate, pressure, temperature and viscosity FLOW RANGE are held within the ratings shown in the nameplate 〜...

  • Page 6: Operating Conditions For Explosionproof Model

    B-525-6-E 2.1 Operating Conditions for Explosionproof Model This product is approved as explosionproof. Failure to comply with the following conditions will automatically nullify this rating. (1) Do not perform any unauthorized modification to this product. (2) Before opening the enclosure, if necessary for some reason, ensure safety against hazards associated with flammable gases present in the atmosphere.

  • Page 7: General

    (digital readout) and provides, by option, a pulse and analog output proportional to the rate of flow. In this meter, fluid flow is detected by sensing with an amorphous sensor the magnetic fields of permanent magnets embedded in the oval rotors. As a result, high reliability is achieved. Features (1) Uniform-speed revolution, uniform flowrate, and uniform torque.

  • Page 8: Part Names

    B-525-6-E 4. PART NAMES METER BODY FLOW DIRECTION ARROW FRONT COVER REAR COVER REGISTER (BATTERY PACK INCORPORATED) CONNECTING FLANGE NOTE : Dedicated battery pack is an option. Not built in the Smart type. Fig. 4. 5. LCD COUNTER DISPLAY 5.1 Register Model UA 5.1.1 About "MODE"...

  • Page 9: About The Displayed Messages During Operation

    B-525-6-E × 1 L ×1 L b1：× 1 L/h b2：×1L/min b1：×1 L/h b2： ×1 L/min (3) Instantaneous Flowrate (b2) (4) Resettable Total Flow An instantaneous flowrate of 20.00 L/min. is A resettable accumulated total of 34567 L is shown here. shown here. 5.1.2 About the Displayed Messages during Operation (1) Ordinary operation (2) Prolonged operation "MODE"...

  • Page 10: Register Model U8

    B-525-6-E <Smart Type> 5.2 Register Model U8 5.2.1 About "MODE" Switch Take out the selector magnet inserted at the bottom of the register, apply it to the label "MODE" on the LCD counter face and the display will scroll forward through the available readings as shown.

  • Page 11: Total Flow Reset

    <Smart Type> B-525-6-E 5.2.4 Total Flow Reset Displayed total flow can be reset either by the display select switch (see Fig. 12.1 on page 33) or through communications with the Smart Communication Unit. If your option is through communications, follow the instructions outlined in the instruction manual of Smart Communication Unit EL2310.

  • Page 12: Considerations On Installation

    (6) The strainer should be located upstream of, and as close to the meter as possible. (7) Since the sensor in ULTRA UF-II operates on the principle of sensing changes in magnetic flux density, it must be isolated from the influence of any external magnetic flux. In order to minimize the influence of...

  • Page 13: How To Change Flow Directions

    B-525-6-E 7. HOW TO CHANGE FLOW DIRECTIONS CAUTION: Do not fail to remove power to the meter if the meter is of the type to provide remote output. To change flow directions, change the orientation of both the register and the flowmeter body to the new flow direction REGISTER ADAPTER...

  • Page 14: Wiring Instructions

    B-525-6-E 8. WIRING INSTRUCTIONS ( Refer also to the wiring instructions of respective receiving instrument instruction manual.) 8.1 Wiring Connections at Terminals (1) Cables for field wiring The following cables should be used unless otherwise specified: Cables 1.25mm in conductor area and 8.5 to 12 mm in finished O.D. As to the number of conductors, select 2 to 4 according to your particular application.
  • Page 15 ＋ from current pulses into voltage pulses according to TOTALIZER − the formula of 4/20mA × load resistance. (2) If you use an OVAL receiving instrument in the ＋ configuration shown here, make sure of the current ANALOG − INDICATOR carrying capacity of receiving instrument's power supply.

  • Page 16: Preamp-To-Receiving Instrument Hookup With Register Type U8

    An OVAL receiving instrument can be coupled directly, but instruments in general which are designed to accept a voltage signal input require a load resistor RL connected in series for voltage conversion. Since the voltage signal level varies with the load resistance value, determine the load resistance value by referring to the receiving instrument specifications and the acceptable load resistance range shown below.

  • Page 17: Operating Instructions

    B-525-6-E 9. OPERATING INSTRUCTIONS 9.1 Flushing the Piping Assembly Do not fail to remove the meter from the piping assembly and install a short pipe section in place of the meter. Costly damage to the meter could result if you attempt to flush away construction debris and other foreign matter with the meter installed.

  • Page 18: Precautions For Models Without Battery Pack

    B-525-6-E CAUTIONS 9.3 Precautions for Models without Battery Pack (1) Totalized data is written for storage in a non volatile memory several seconds after the flow of a process fluid is stopped. Accordingly, a precaution to remember is not to attempt to turn off power while flowing the process fluid, or turn off power simultaneously with process fluid shutoff.

  • Page 19: Disassembly And Inspection

    B-525-6-E 10. DISASSEMBLY AND INSPECTION ◎ Although it depends on individual operating conditions, periodic disassembly and inspection should be performed at least once a year. CAUTION 1. Because the UF-II Flowmeter is a precision industrial instrument, disassembly and inspection should be performed indoors as a rule. If it is desired to disassemble and inspect it as installed in the field, an important precaution to remember is to reduce the internal pressure of the piping assembly to a safe level, shut off valves upstream and downstream of the meter fully, drain the...
  • Page 20 B-525-6-E Match mark Match mark O-Ring (5) Take off twelve fitting bolts (114) securing the (6) 1) Place the meter body with the flange face front cover, carefully lift and remove the front down. cover vertically. 2) Take off twelve rear cover fitting bolts (114) and remove the rear cover.

  • Page 21: Assembly

    B-525-6-E (9) Remove the rotors (203) and (204). Since each NOTE : Mark individual thrust rings (209) with identification marks to ensure their correct rotor is integral with its shaft, hold the rotor to be installation with respect to respective removed first with both hands and carefully slide rotors at assembly.

  • Page 22: Reconditioning The Rotor Gear Teeth

    B-525-6-E 10.4 Reconditioning the Rotor Gear Teeth The hatched areas of one rotor shown in the sketch UF-II Flowmeter Rotor at right indicate the areas in contact with the other rotor while they revolve. Do not attempt to recondition these areas unless it is absolutely necessary due to undue wear found during disassembly and inspection.

  • Page 23: Ua Register Switch Functions And Parameter Setup

    B-525-6-E 11. UA REGISTER SWITCH FUNCTIONS AND PARAMETER SETUP 11.1 Switch Names and Functions REGISTER FRONT COVER HEX BOLTS O-RING (1) Using hex key, remove four hex socket head (2) Removing the front cover provides access to the bolts securing the front cover. electronics unit.

  • Page 24: Function Setup Switch "Sw2

    B-525-6-E 11.1.1 Function Setup Switch "SW2" DIP Switch No. Description of Functions SW2−1 Parameter write-protect OFF: Rewritable "Default" ON: Write protect * To seal, set to ON before pasting the seal. SW2-2 Factored/unfactored pulse select OFF: Factored pulse ON: Unfactored pulse SW2-3 Inhibit to reset the resettable total OFF: Resettable "Default"...

  • Page 25: Individual Test Pin Functions

    3V app. FWD and its waveform is one before unfactored output amplification. Accepts a simulated pulse train from OVAL pulse checker Model PC2201, or other signal source. Input mode is PG30 mode of Model PC2201. It also accepts pulses with levels "0": 1V max. and "1": 7 to 12V min.

  • Page 26: Parameter List

    B-525-6-E 11.4 Parameter List Parameter Code Default Setting Initial Value Description Remarks Depends on - Meter factor Ex.: Given meter factor 9.918mL/P. the customer (Unit: [□/Pulse]) To change the indicated flowrate to [L] Meter factor specification. .0000-2 - Setting range: →...
  • Page 27 B-525-6-E Parameter Code Default Setting Initial Value Description Remarks Furnishes a 1Hz simulated Pulse dummy Not a parameter to — factored pulse output irrespective - This function is useful in loop check, etc. output  be set up of flowmetering. - For operation in practice, see "About Dummy Output Functions (special Furnishes a 10Hz simulated...

  • Page 28: Parameter Setup Procedure

    B-525-6-E 11.5 Parameter Setup Procedure 11.5.1 Reconfiguration Procedure Given below is the parameter sequence: (1) In "Measure Mode (normal mode)," turn MODE switch ON for 5 seconds to go into "Review Mode". ➡ (2) Using MODE and RESET switches, show the parameter you want to modify. ➡...

  • Page 29: About Dummy Output Features (Special Functions)

    B-525-6-E [Kind 2] Decimal point setup parameters (bP, SP, and CP) In the parameter setup mode, a figure representing the decimal places of interest flickers. MODE ..Not used in the setup process. RESET ..Each time the switch is turned ON, the decimal point moves one place to the left and the figure increases by one.

  • Page 30: Parameter Initialization

    B-525-6-E By the following steps, a 1 Hz or 10Hz simulated factored pulse train can be furnished irrespective of flowmeter measurement. NOTE : This feature is not available with the unfactored pulse output specification. - 1Hz simulated output mode (dummy output 1 mode Code: Pd1) (1) According to the Table 8.4 "Menu Trees and Switch Operation"...

  • Page 31: About Error Messages

    B-525-6-E 11.5.5 About Error Messages The electronics unit can be reconfigured for new parameters at your option. However, if some parameters you set up conflict, or when an erratic condition arises, the LCD display will tell you with an error message from Table 11.1 below. Table 11.1 Message Name...

  • Page 32: Table 11.2 Menu Trees And Switch Operation

    B-525-6-E Table 11.2 Menu Trees and Switch Operation Parameter review mode Measure mode (normal mode)

  • Page 33: Switch Functions And Parameter Setup, Of Register Model U8

    <Smart Type> B-525-6-E 12. SWITCH FUNCTIONS AND PARAMETER SETUP, OF REGISTER MODEL U8 12.1 Switch Names and Functions REGISTER FRONT COVER HEX BOLTS O-RING (1) Using a hex key, take off four hex socket head (2) Removing the front cover provides access to the bolts securing the front cover.

  • Page 34: Individual Test Pin Functions

    FWD and its waveform is one before unfactored output amplification. Accepts a square-wave pulse train from the pulse checker (OVAL Model PC2201, for example). Used for analog full scale adjustment, loop check, or other servicing. Input mode is Model PC2201's PG30 mode.

  • Page 35: Sensor Replacement Procedure

    B-525-6-E 13. SENSOR REPLACEMENT PROCEDURE SENSOR UNIT REGISTER ASSEMBLY SCREWS (1) Take off four hex socket head screws on the side (2) Carefully draw the register assembly out. Exercising care not to bump the sensor against adjacent of the register. components, draw it out in the horizontal direction.

  • Page 36: Battery Replacement Procedure (Register Model Ua With Battery Pack)

    Battery pack without external output Battery pack without external output When you replace batteries, contact (4 batteries) (1 battery) your nearest OVAL service station and use dedicated battery packs. WARNING Appearance This dedicated battery pack is of an intrinsic safety explosionproof configuration.

  • Page 37: Troubleshooting

    B-525-6-E 15. TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE COPING ACTION 1. Totalizer does not 1. Flowrate is too low. 1. Open valves progressively. count. 2. Insufficient pump pressure or head 2. Taking pressure loss of entire piping assembly pressure. into consideration, correct pump pressure or head pressure.

  • Page 38: Exploded Views And Parts List

    B-525-6-E 16. EXPLODED VIEWS AND PARTS LIST - When you order replacement parts, specify the stock No., flowmeter model, instruc- tion manual No., symbol No., part name and the quantity desired. <Exploded View>...

  • Page 39: Parts List

    B-525-6-E <Parts List> Sym. Sym. Part Name Q'ty Remarks Part Name Q'ty Remarks Meter Body Sensor Assembly  set (151 to 160) Front Cover Sensor Bracket Rear Cover Sensor Retainer ▲05 O-Ring Blind Plug Plug O-Ring B Thermometer Blind Lid Size 80 O-Ring C Gasket...

  • Page 40: General Specifications

    B-525-6-E 17. GENERAL SPECIFICATIONS 17.1 Register Model UA Specifications Meter Size 80 and 81 Item Grand total (8-digits) 0.01m (standard), 0.01m , 0.1m Local Resettable counter C mode The unit of total flow is the same as that of grand total. Indicator (7-digits) (LCD)

  • Page 41: Register Model U8 Specifications

    <Smart Type> B-525-6-E 17.2 Register Model U8 Specifications Meter Size 80 and 8 Item Grand total (8-digits) ×1 L (standard) ×10 L, ×100 L Local b mode ×100 L/h Display (LCD) Instantaneous p mode 0 to 100 % Mode select flowrate (4-digit) Bar graph 8-section bar graph...

  • Page 42: Product Code Explanation

    B-525-6-E 18. PRODUCT CODE EXPLANATION PRODUCT CODE ITEM DESCRIPTION (1) (2) (3) (4) (5) − (6) (7) (8) − (9) (10) (11) (12) − (13) (14) (15) Positive displacement flowmeter for liquid service Model Standard oil meter Material FC250 + surface treatment Nominal dia.

  • Page 43: Outline Dimensions

    B-525-6-E 19. OUTLINE DIMENSIONS Unit: mm × 10m L MODE ×0.1 l b1 ：         × 10   l/h b2 ：         × 0.1  l/min b1 ： × 1 L/h b2 ： × 10m L/min CABLE ENTRY  G1/2 DRAIN ATEX ...
  • Page 44 B-525-6-E 206.2 Revised 205.2 Revised 203.09 Revised 203.05 Revised△ All specifications are subject to change without notice for improvement. B-525-6-E (4)
