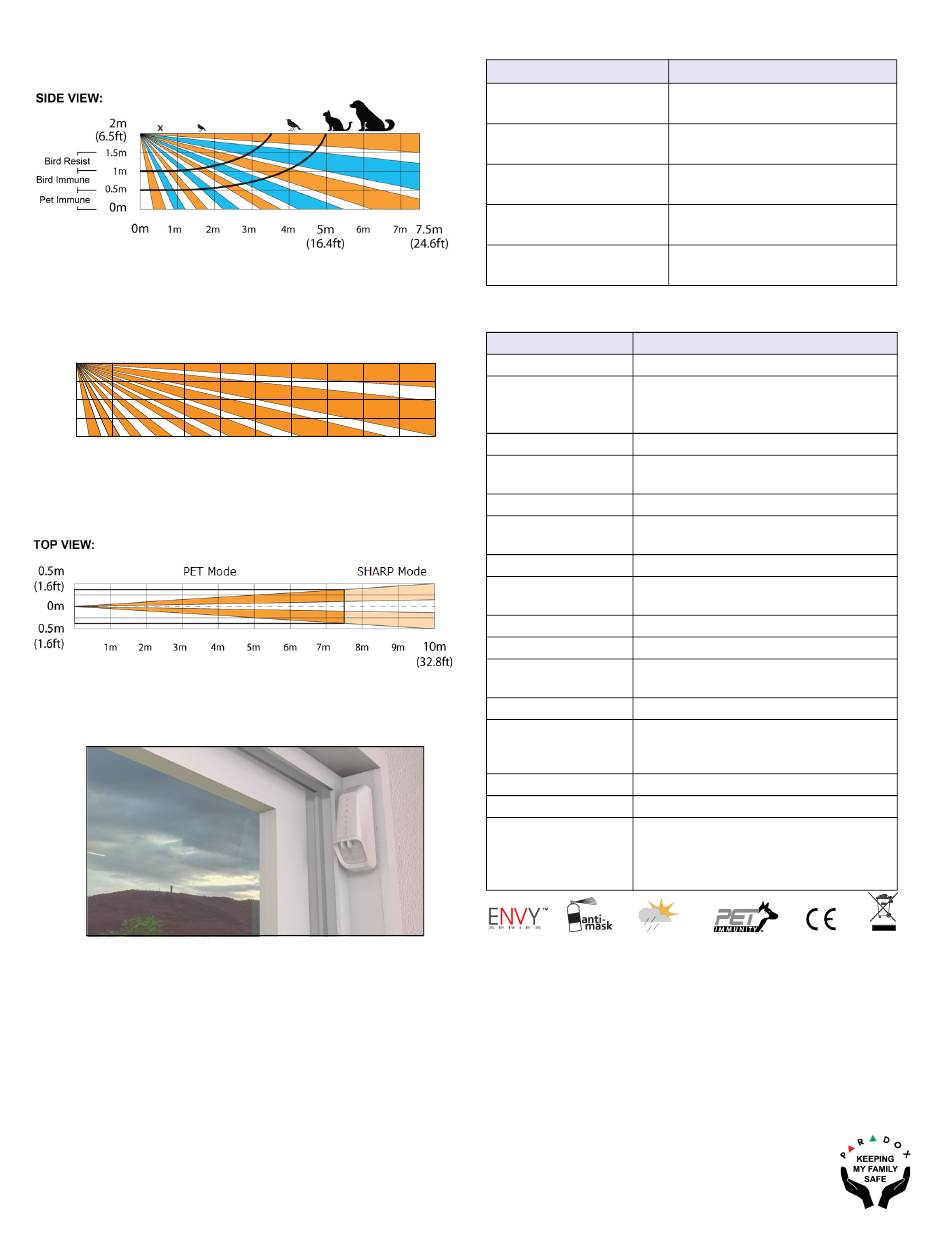

Led Display; Technical Specifications; Beam Pattern; Immunity Mode Installation - Paradox NV35MR Installation Manual

Beam Pattern

PET Mode
SHARP Mode
SIDE VIEW:
2m
(6.5ft)
1.5m
1m
0.5m
0m
0m
1m 2m 3m 4m
Top View
PET Immunity Mode Installation
Warranty
For complete warranty information on this product, please refer to the Limited Warranty Statement found on the website:
www.paradox.com/terms or contact your local distributor. Specifications may change without prior notice.
Patents
US, Canadian and international patents may apply. Paradox is a trademark or registered trademark of Paradox Security Systems
(Bahamas) Ltd.
10m
5m 6m 7m 8m 9m
(32.8ft)

LED Display

Feature
Tamper open
PIR sensitivity level setting
Alarm detection
Booting/Tamper close
Anti-mask detection

Technical Specifications

Model Number
Infrared sensor type 2 dual elements
Detection range • PET Immunity mode: 7.5m x 2m
(25 x 7 ft)
• Sharp mode: 10 x 2m (33 x 7 ft)
Super Pet Immunity Pet size approximately 50cm
Anti- mask Active IR detection for blocking 30cm and
sprayed liquid
Input voltage 3VDC=2 x1.5VDC AA Alkaline batteries
Current consumption 40µA in Standby
30mA in Alarm/RF Transmitting
Battery life 3 years of typical use
Low battery voltage 2.5V
Signal
Compatibility RTX3 and Magellan systems
Outdoor protection IP54
Operation -35°c to +50°c
temperature
Relative humidity 95% non-condensing
RF Frequency Dual Band: 433.92 MHz /868.35 MHz
IMPORTANT: For US and Canada, only
433.92 MHz is used
Dimensions 12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.)
Weight 100g / 0.2 lb
CE, EN50131-2-2 Grade 2, Class IV
Certifications
EN 50131-6 Type C
Certification Body: Applica Test &
Certification
LED Status Indicator
Green: ON for 0.3 seconds every
30 seconds
Green: Flashes 1-3 times according
to the selected level
Red: ON for 2 seconds
Power Save mode: Red blinks
Green/Red alternating flashes for
30 seconds
Orange: Flashes ON/OFF 3 times
every 60 seconds
NV35MR
