Unpacking

What is in the case?

The first thing to note is the Veracity Control Wheels ship in a customized Pelican Storm™ hard case, so repackaging for
field use is not required. The foam cut-outs provide spots for the PAN and TILT modules together on the default
baseplate as well as the ROLL wheel, which can be added at any time as an option to the system. There is also space for
the power cable, the interconnect cables that connect the modules and the data cable that plugs into the RC camera
mounting transmitter.

Mounting

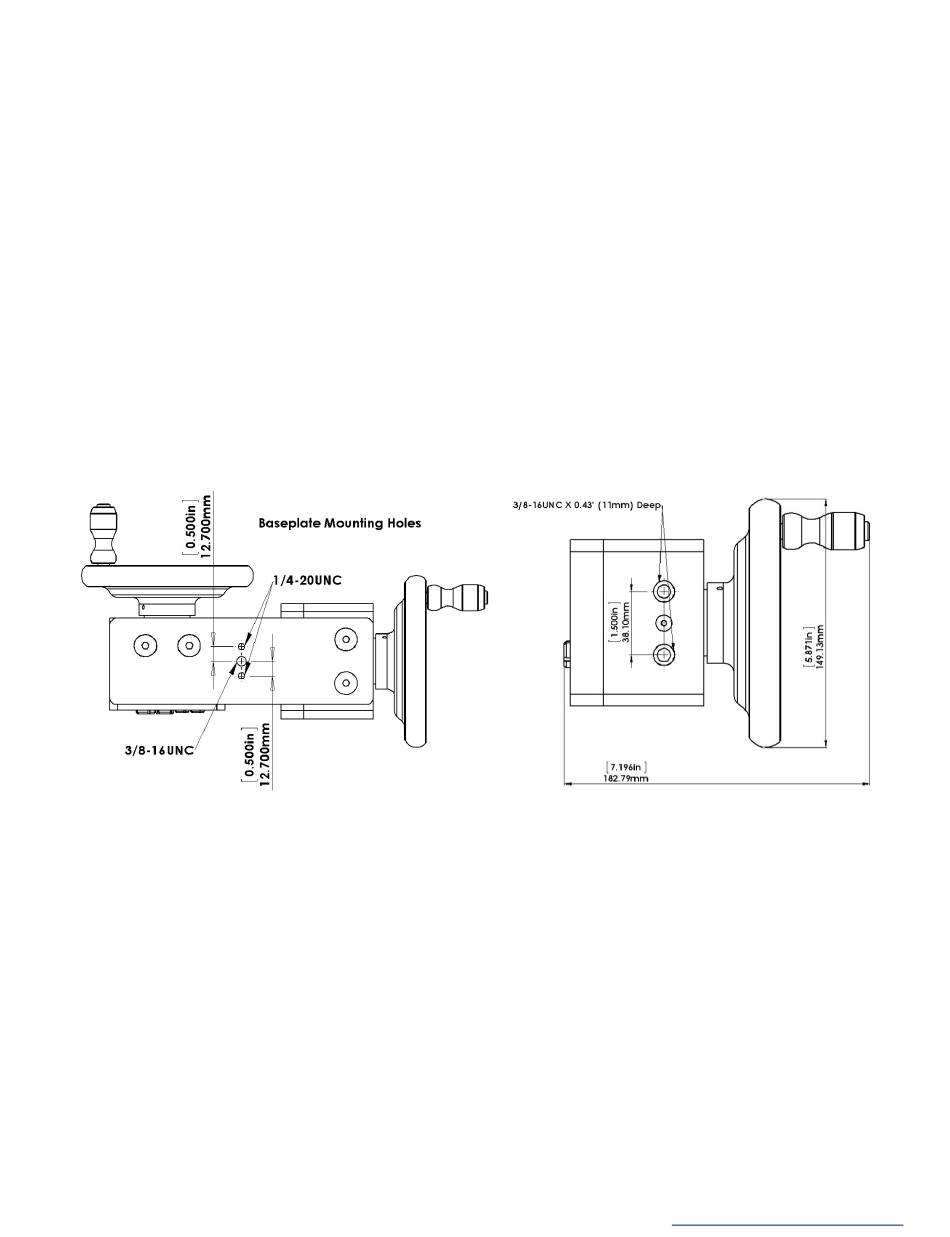

The Veracity Control Wheels basic PAN and TILT modules come pre-mounted on a machined aluminum baseplate. It is
easy to mount this plate to any number of commercially available tripods using the centrally located 3/8-16 or ¼-20
tapped holes. The modules need to be mounted on some platform or riser so the Control Wheels are clear to rotate. If
the default mounting plate is not desirable, the individual wheel modules can be removed and mounted as needed via
the 3/8-16 hard points on the bottom of the module.
