Appendix 2 - Setting up with your DX7S Spektrum Radio Controller

The Veracity Control Wheels connect to your Radio Controller via the "Trainer Port" that is located on the back of your
Radio Controller, in this case the Spektrum DX7S.
The Pan, Tilt, and Roll commands from the Control Wheels are sent to your brushless gimbal rig via the Trainer Port so
that no hardware modifications need to be made to the controller itself. Programming the Radio Controller to accept
the streaming data from the Veracity Control Wheels is quite simple.
Here is step-by-step how to set up your radio to use with the Veracity Control Wheels.
1. Ensure that nothing is plugged into the trainer port at the back of the DX7S at this time.
2. While holding on the Scroll button to the right of the display, power on the DX7S. Release the scroll button
when you see the System Setup screen.
3. Scroll down to and enter the Trainer menu.
4. From the Trainer (Mode Select) Screen, select Inhibit and scroll until Programmable Master is visible. Select it
to change to Programmable Master Mode.

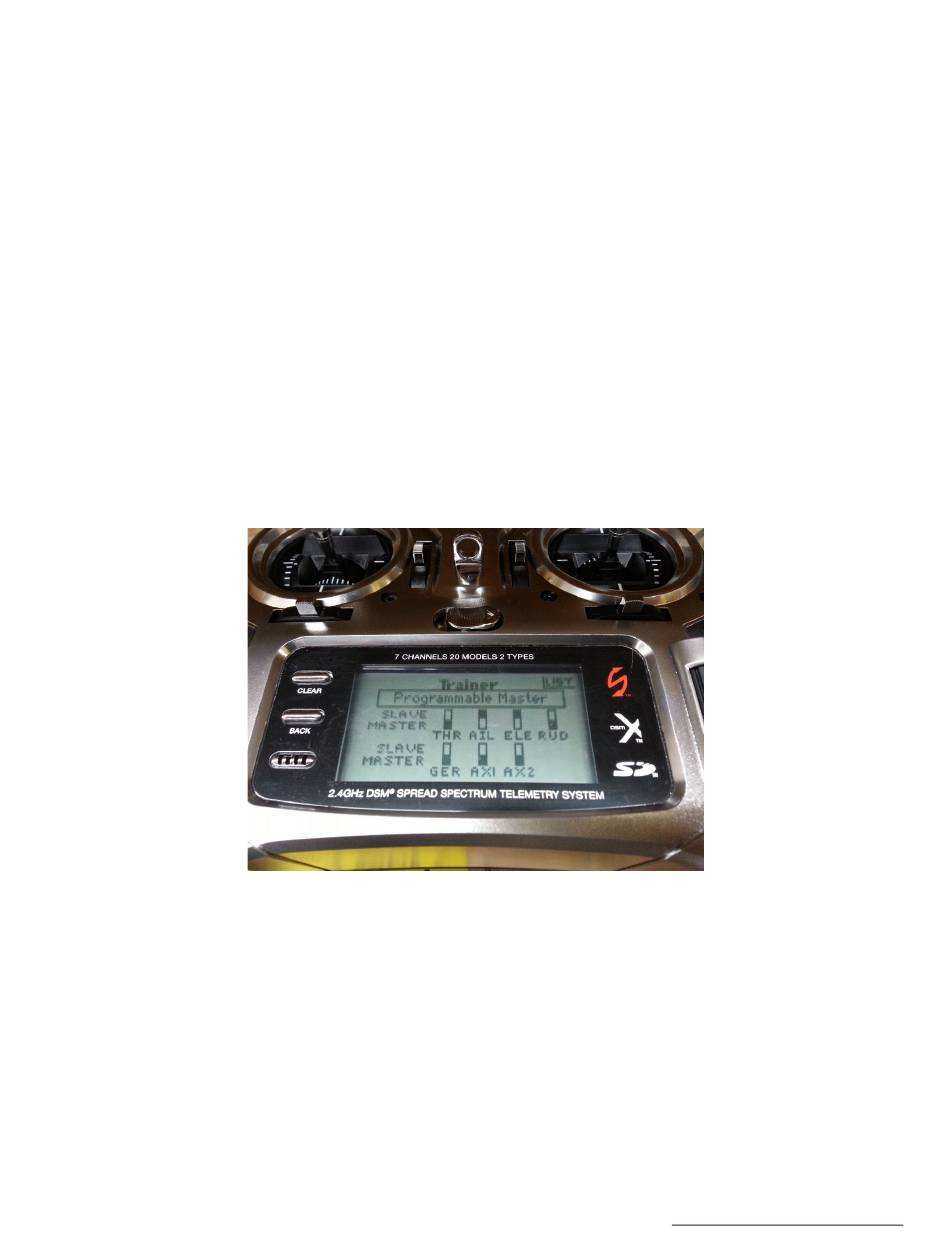

5. Scroll to select the AIL channel and switch it to Slave (see picture).
6. Scroll to select the ELE channel and switch it to SLAVE.
7. Do the following only if you are using the ROLL axis on the Veracity Control Wheels: Scroll to select the RUD
channel and switch it to SLAVE
8. Ensure THR, GER, AX1 and AX2 are set to MASTER
9. Exit into the System Setup menu to save the settings and power off the DX7S.
10. On the Control Wheels make sure that the Sensitivity Pot is at 50% and the Direction Switch is set so that you
get either a Green or Red LED meaning the Axis is enabled.
11. Power on the DX7S and plug in the Spektrum PPM Cable.
