Verify Futaba T14SG Radio Setup

If you want to double check that everything is working right see below:

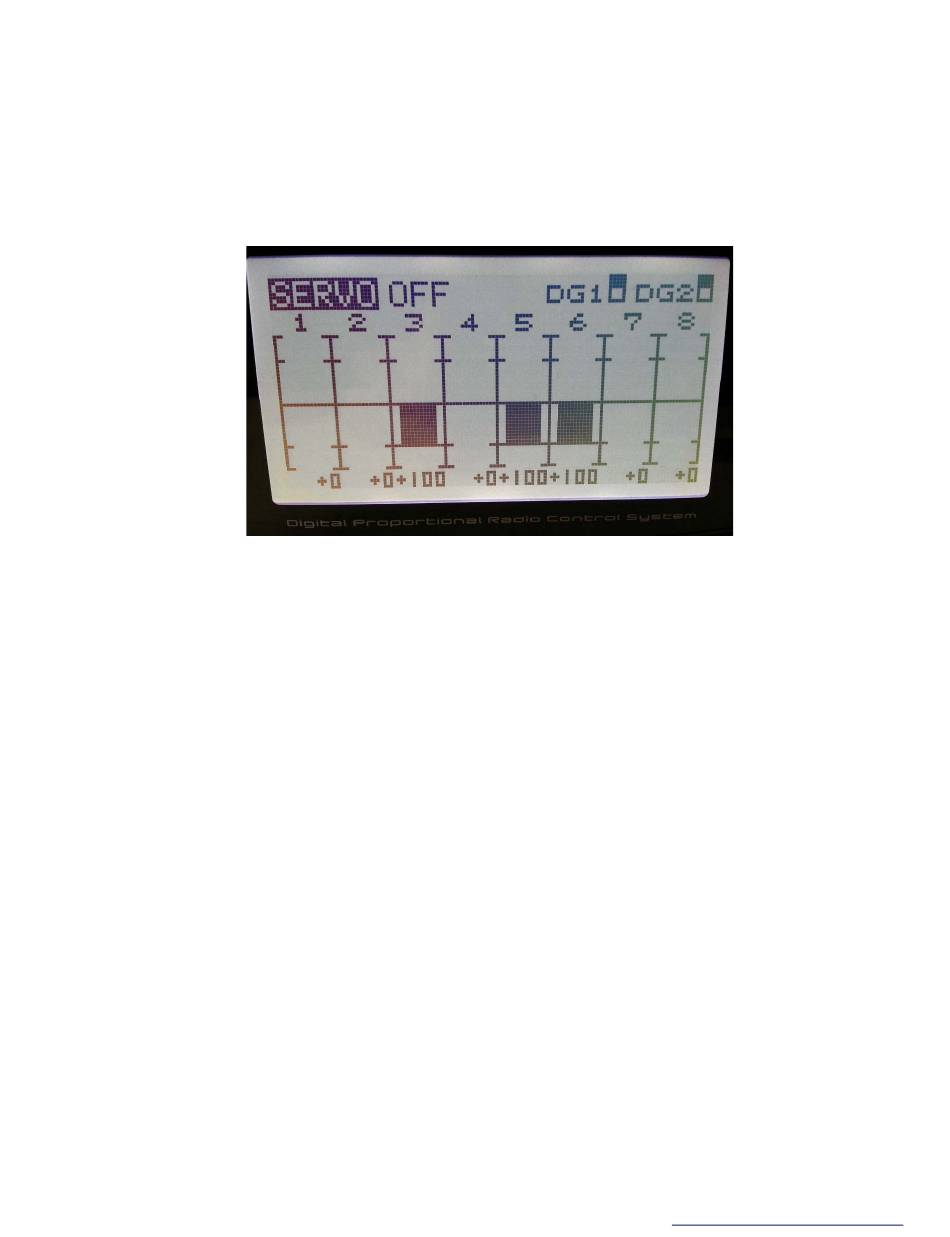

1. Double-tap the "MDL" button to go to the "Model Menu". Select "SERVO" and tap "RTN". This brings up the
Servo Monitor. This shows you what the Radio Controller is sending wirelessly to the Brushless Gimbal Rig.
• Channel 3 will respond the left control stick (Throttle) when moved up and down.
• Channels 5 and toggle between -100, +100 and 0 depending on the position of Switch B.
• Channels 6 and toggle between -100, +100 and 0 depending on the position of Switch C.
When Switch E (SE) is NOT active (Switch pointing away from user):
• If you move the right control stick on the radio controller up, down, left or right, you will see Channels 1 and 2
move relative to the stick position.
•
If you move the left control stick on the radio controller left or right, you will see Channels 4 move relative to
the stick position.
When Switch E (SE) is active (Switch in middle position or toward the user):
• When you move the Pan Wheel, Channel 1 on the monitor will move in relation to the speed of the rotation of
the wheel.
• When you move the Tilt Wheel, Channel 2 on the monitor will move in relation to the speed of the rotation of
the wheel.
If the Roll axis is set up on the Veracity Control Wheels and Switch E (SE) is active:
• When you move the Roll Wheel, Channel 4 on the monitor will move in relation to the speed of the rotation of
the wheel.
*** On each control wheel, make sure that the speed pot is initially turned half-way and the direction switch is set such
that the LED is lit (green or red).
