PLC Electronic Solutions Veracity Control Wheels Operation Manual page 15

9. Scroll to the Switch and change the Inhibit to Switch B.
Any time this switch is in the Active position the Veracity Control Wheels will work for PAN, TILT, and (if you set
up for 3 axis) ROLL as well.
10. On the Control Wheels make sure that the Sensitivity Pot is at 50% and the Direction Switch is set so that you
get either a Green or Red LED meaning the Axis is enabled.
11. Power on the DX9 and plug in the Spektrum PPM Cable.

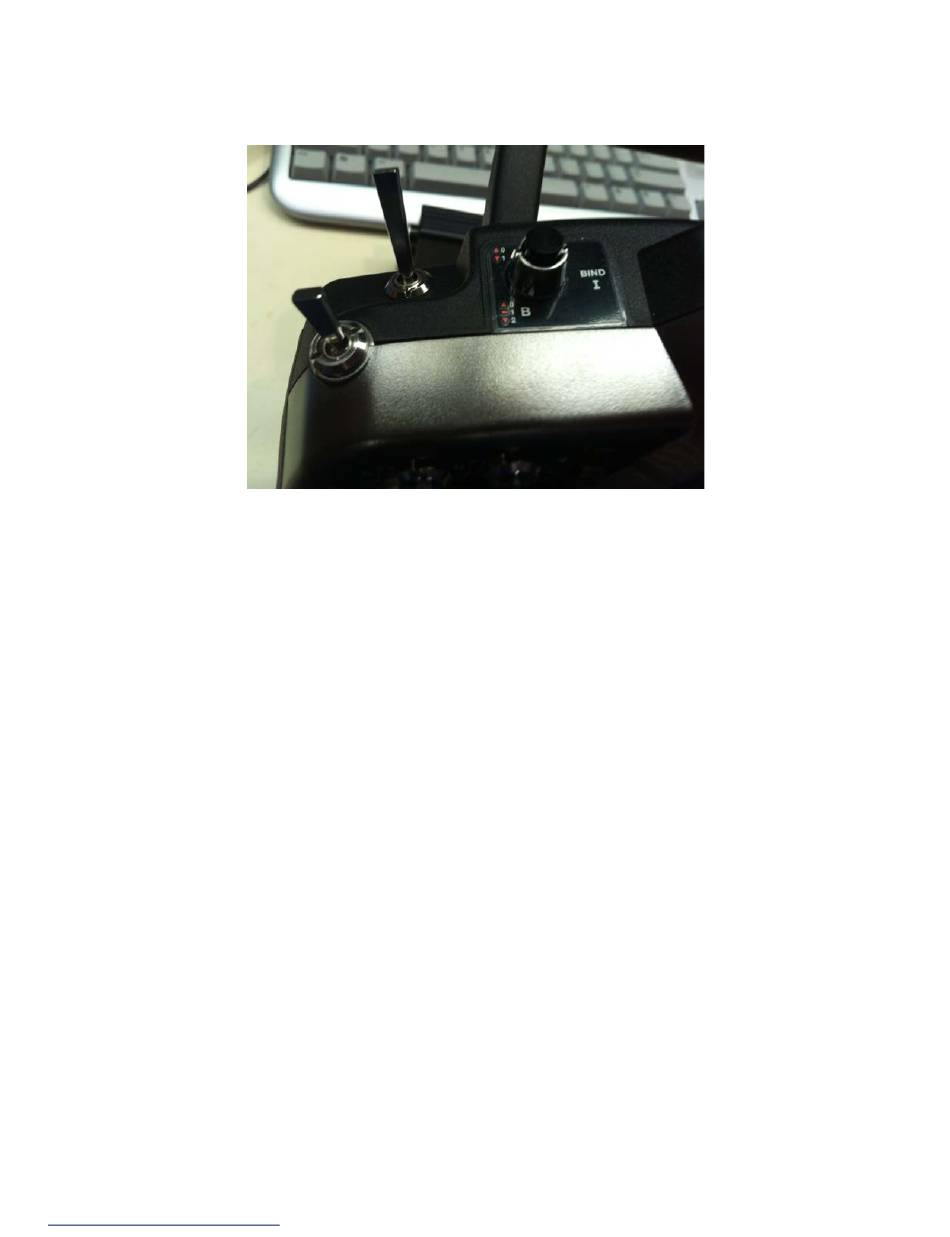

12. On the Radio Controller Set Switch B to position 1.
13. You're all set-up! Proceed to "Verify DX9 Spektrum Radio Setup" instructions to check to ensure everything is
in working order.
