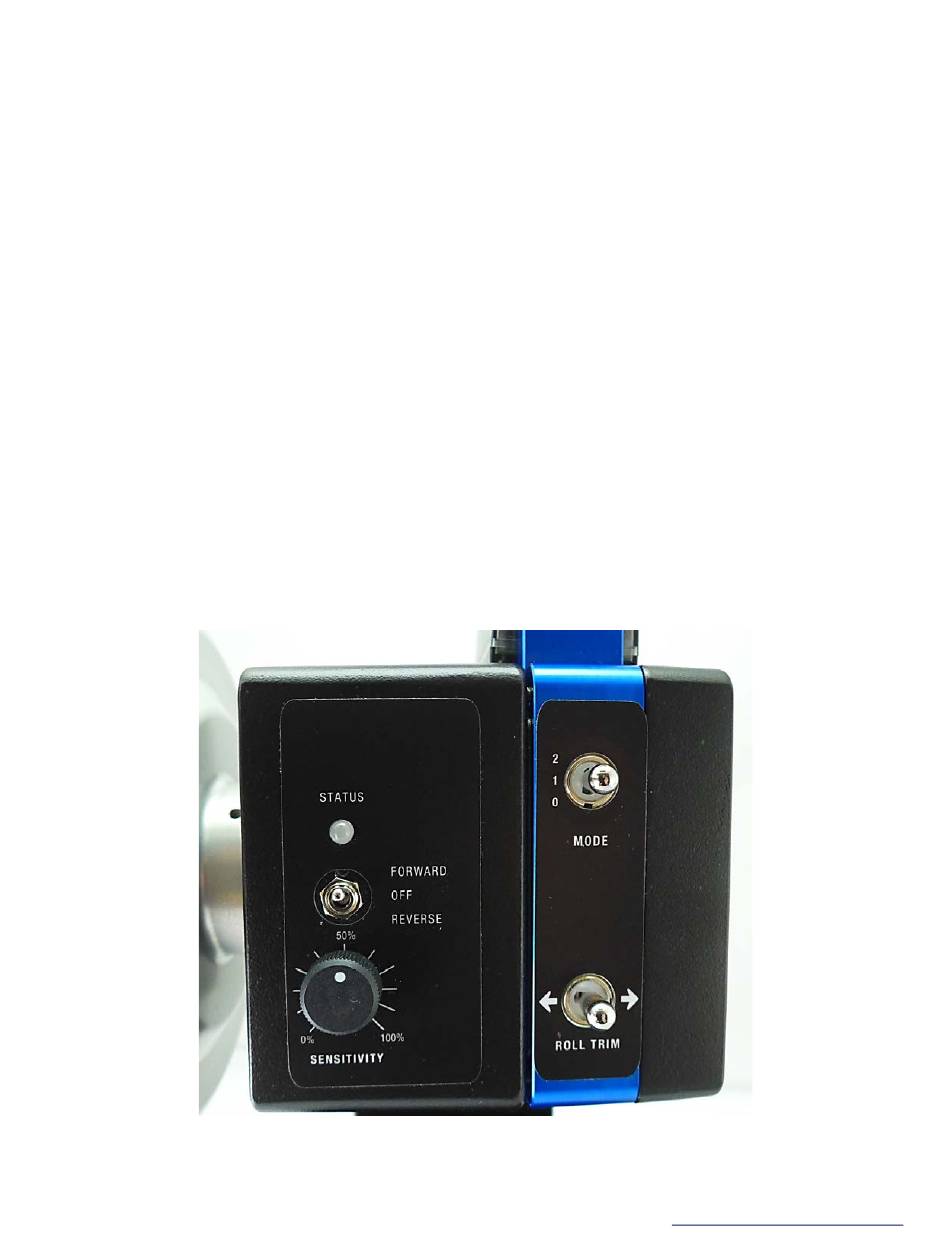

Veracity Slide Mode Switch

The MODE switch function varies depending on whether the Veracity Control Wheels are in MōVI mode, Ronin mode or
Maxima mode.
MōVI (Standard Gimbal)
With the unit in MōVI Mode, the operator has access to 3 mode-select options using the MODE select switch.
•
MODE 0 - Off
•
MODE 1 - Majestic Mode
• MODE 2 - Remote Mode
Ronin
With the unit in Ronin Mode, the operator has access to 3 mode-select options using the MODE select switch.
•
MODE 0 - Reset
• MODE 1 - Follow Mode
•
MODE 2 - 2-Person Mode
Maxima
With the unit in Maxima Mode, the operator has access to 3 mode-select options using the MODE select switch.
•
MODE 0 - Remote Mode
•
MODE 1 - Off
• MODE 2 - Remote Mode
