User Manual OPC UA Client / SNMP Agent
Document code: MN67B23_ENG
Revision 1.000
Page 10 of 30
Industrial Electronic Devices
ETHERNET:

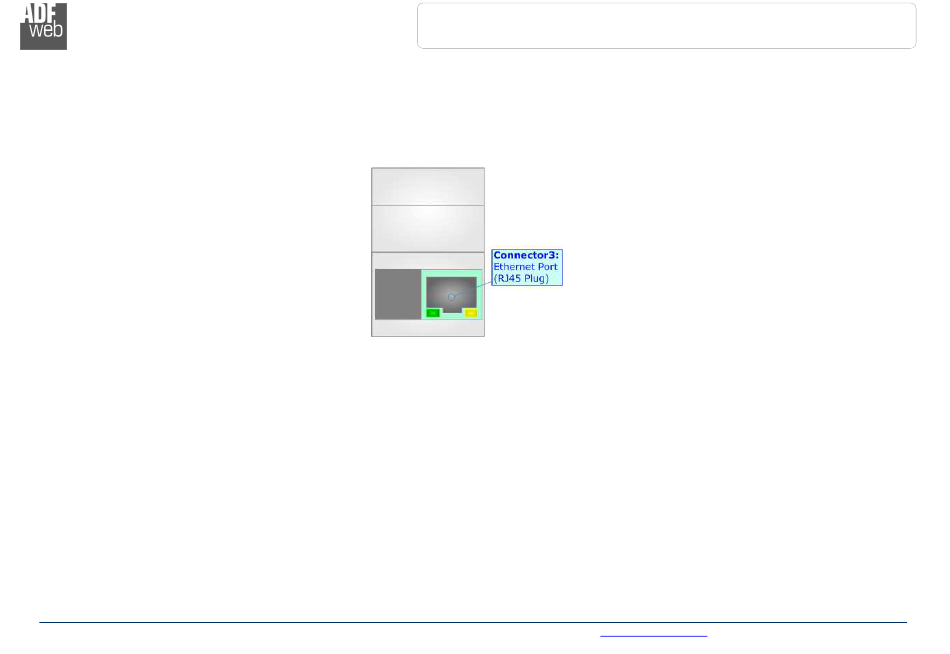

The Ethernet connection must be made using Connector3 of HD67B23-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
