SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA and
SNMP.
By Pressing the "Set Communication" button from the main window for SW67B23 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "OPC UA Client" are:
In the field "IP Address" the IP address for OPC UA side of the converter is defined;
In the field "SubNet Mask" the SubNet Mask for OPC UA side of the converter is
defined;
In the field "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out
of the net;
In the field "DNS" the IP Address of the DNS server is defined. This feature can be
enabled or disabled pressing the Check Box field.
The means of the fields for "SNMP Agent" are:
In the field "IP ADDRESS" the IP address of SNMP side of the converter is defined;
In the field "SUBNET
defined;
In the field "GATEWAY" the default gateway of the network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field "SNMP Name of
In the field "Contact" the contact for SNMP Agent station is defined;
In the field "Location" the location for SNMP Agent station is defined;
In the field "Version" the version of SNMP is defined;
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask of SNMP side of the converter is
Station" the name for SNMP Agent station is defined;
User Manual OPC UA Client / SNMP Agent
Document code: MN67B23_ENG Revision 1.000

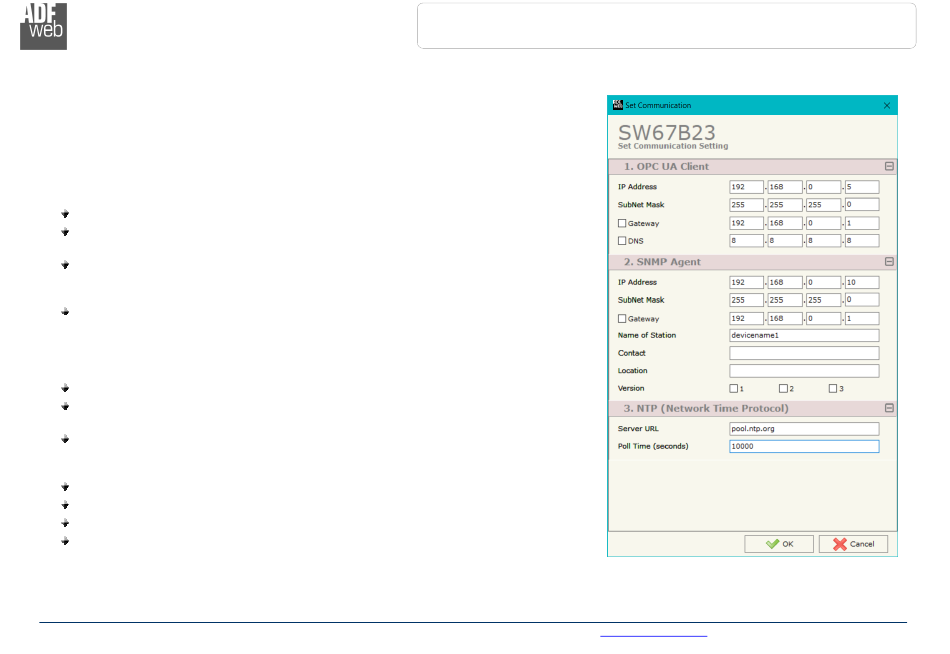

Figure 3: "Set Communication" window
