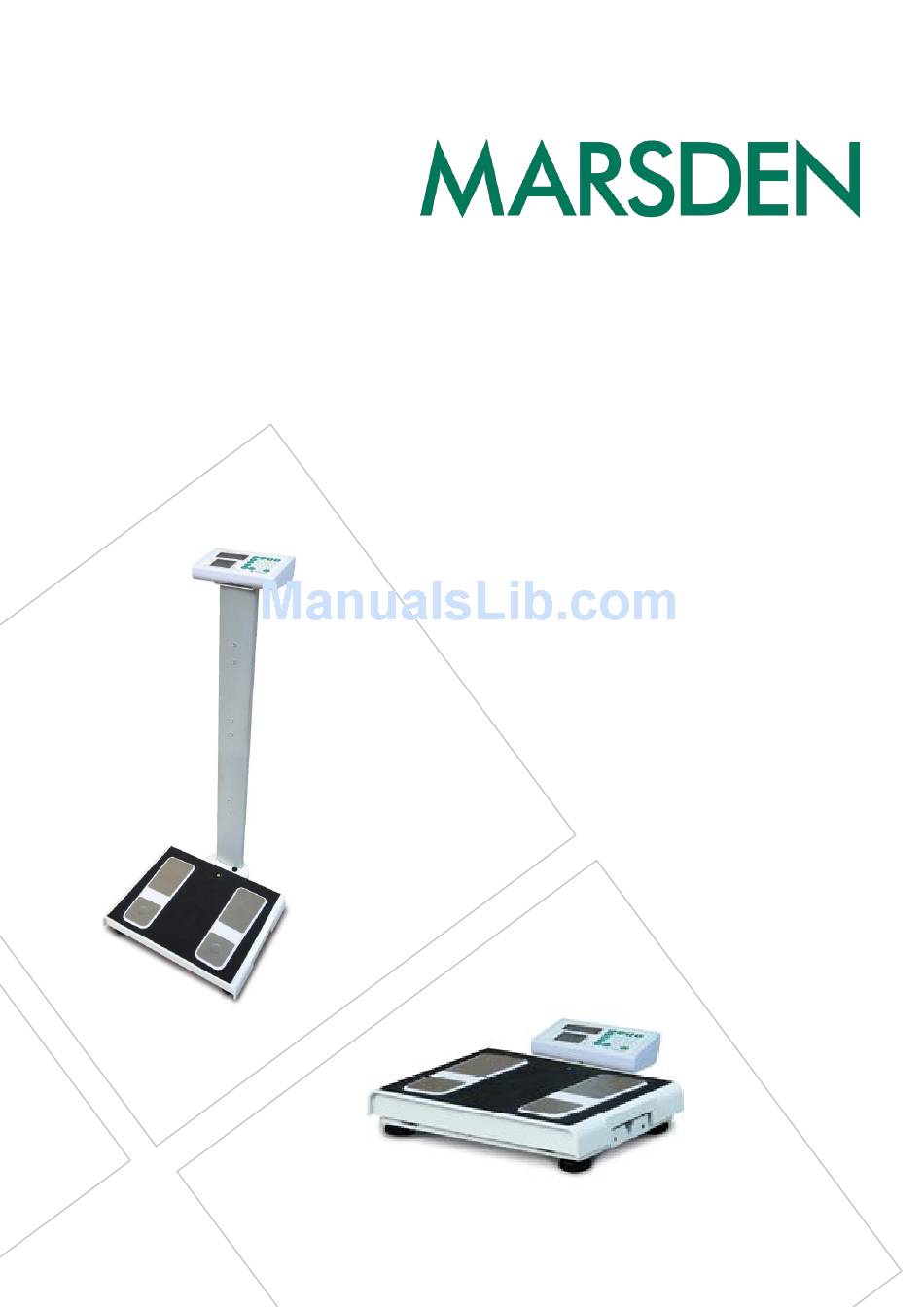

- Page 1 USER MANUAL MBF-6000 MBF-6010 Please take time to read these instructions before starting to use the scale Version 1.0 12/16...
-
Page 2: Table Of Contents
Contents Product Specification Safety Instructions Cleaning Graphic Symbols Product Structure Product Assembly (MBF-6010 only) Before Operation Setting Date & Time Operation Instructions Print-out Format Assembly Instructions: HM-201D Body Impedance Measurement Methods Replacing the Battery Error Messages ROHS Compliance EMC Guidance & Manufacturer’s Declaration Page 2... -
Page 3: Product Specification
Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 300kg which must not be exceeded. - Page 4 Measurement System 4 Polar Bioelectrical Impedance Analysis Measurement Current 50kHz 500uA Measurement Style Left leg; right leg Measurement Range 200 ~ 1000 /0.1 Gender: Male/Female Body Type: Standard/Athletic Input Items Age: 10-80 years old Height: 60-210cm / 2ft-7ft 11.0in Page 4...
-
Page 5: Safety Instructions
The device is designed to detect when a stable weight is achieved. The indicator will beep twice to indicate a stable weight value, at which point your reading can be taken. Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: •... -
Page 6: Cleaning
Maintenance The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. If any inaccuracies occur, please contact Marsden, your local dealer or service partner. Cleaning • We recommend using alcohol-based wipes or similar when cleaning the scale. Do not wipe the platform with strong chemicals. -
Page 7: Graphic Symbols
Dispose of old appliances separately from your household waste. This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden products. Page 7... -
Page 8: Product Structure

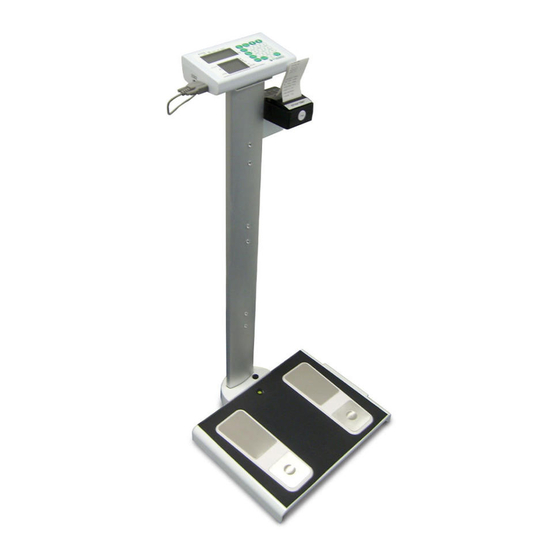

Product Structure: MBF-6000 A: Remote Display B: Digital LCD C: Control Panel D: Posterior Electrodes E: Platform F: Adjustable feet G: Battery in holder Page 8... - Page 9 Product Structure: MBF-6010 A: Remote Display B: Digital LCD C: Control Panel D: Posterior Electrodes E: Platform F: Adjustable feet G: Battery in holder Page 9...
-
Page 10: Product Assembly (Mbf-6010 Only)
Product Assembly (MBF-6010 only) Please note: For safety and ease, recommend this scale is assembled by two people. 1. Position the column of the MBF- 6010 on top of the base, as shown in the graphic on the left, ensuring wires are neatly fed from the base through the inside of the column. -
Page 11: Before Operation
Before Operation • Install rechargeable battery pack in the battery compartment of the indicator. Alternatively, plug the connector of the AC adaptor into the port on the indicator (shown below). • Attach the printer to the scale using its 9D connector. •... -
Page 12: Setting Date & Time
Setting the Date & Time 1. Press ON/OFF to switch on the scale. 2. Press TIME, entering the Date/Time setting menu. Year of last date record will be displayed; the 1 digit will flash. 3. Change the flashing digit by using the numerical key on the control panel. -
Page 13: Operation Instructions
Operation Instructions 1. Press ON/OFF. “0.0” will appear in the top LCD display. 2. Ensure the printer is connected to the back of the indicator. The printer can be switched on by pressing the I/O switch. 3. Press PRE-TARE. Input the weight of your clothes. - Page 14 Operation Instructions 7. Press ENTER, and a flashing arrow will appear in the lower right corner. When this displays you can stand on the scale. Heel 8. Step on the four electrodes of platform Electrodes Electrodes with bare feet. Stand straight without bending your knees.
-
Page 15: Print-Out Format
Print-out Format Page 15... -
Page 16: Assembly Instructions: Hm-201D
Assembly Instructions: HM-201D The connection point between the scale’s indicator and HM-201D is illustrated below. Insert the HM-201D data cable into the socket of the indicator before use. Page 16... -
Page 17: Body Impedance Measurement Methods
Body Impedance Measurement Methods In the conventional 4-electode method, current is supplied from the electrodes at the tips of the toes on both feet, with the voltage measured on the heel. This current flows from one lower limb through the lower abdomen and then into the other lower limb, and the bio electrical impedance (hereinafter, impedance,) thus measured is the impedance between the two feet. -
Page 18: Replacing The Battery
Replacing the Battery 1. Open the battery housing cover, and take out the battery housing. Reset the rechargeable battery. Make sure the rechargeable battery is properly placed. 2. Place the battery housing back making sure that the housing pin is connecting to the right point. -
Page 19: Error Messages
Error Messages Page 19... -
Page 20: Rohs Compliance
ROHS Compliance EU Directive 2012/19/EU restricts the use of the six substances below in the manufacture of specified types of electrical equipment. The product does not contain any of the restricted substances in concentrations and ⚫ applications banned by the directive; and for components, the product is capable of being worked on at higher temperatures ⚫... -
Page 21: Emc Guidance & Manufacturer's Declaration
EMC Guidance and Manufacturer’s Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MEDICAL SCALE MBF6000/MBF6010 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MBF6000/MBF6010 should assure that it is used in such an environment. Electromagnetic Emission test Compliance... - Page 22 Voltage Dips, <5% UT(>95% <5% UT(>95% Mains power quality should be short dip in UT) for 0,5 dip in UT) for that of a typical commercial or interruptions cycle 40% 0,5 cycle 40% hospital environment. If the user and voltage UT(60% dip in UT(60% dip in of the MEDICAL SCALE...
- Page 23 Radiated RF 3 V/m 80MHz to 2,5 3 V/m symbol: IEC 61000-4-3 NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE2 . These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects/people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 24 Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: 93/42/EEC as amended by 2007/47/EC Medical Device Directive 2011/65/EU Non-automatic Weighing Instruments Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd.
- Page 25 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk CD-IN-1193 【11069H】REV 07/2018...
