Precision Digital Corporation PD675 Manual

4½ Digit loop-powereD meters
•
•
•
speCiFiCAtioNs
Except where noted all specifications apply to operation at +25°C.
general
Input: 4-20 mA @ 24 VDC maximum
Accuracy: ±0.05% FS ±2 counts
Decimal Point: User selectable
Calibration Range: 4 mA input: -5000 to +5000;
20 mA input: between 200 and 20000 above 4 mA input
Maximum Voltage Drop: 5.2 VDC @ 20 mA
Display Update Rate: 2.5/second
Operating Temperature: -20 to 65°C
Storage Temperature: -40 to 80°C
Relative Humidity: 0 to 90% non-condensing
Connections: Removable screw terminals accept 12 to 22 AWG
Warranty: 2 years parts & labor
pD675
Display: 0.7" (17.8 mm) LCD, 4½ digits; 19999
Approvals: FM Approved & CSA Certified as non-incendive for Class I,
Division 2, Groups A, B, C, & D; suitable for Class II, Division 2, Groups
F & G; suitable for Class III, Division 2, indoor and outdoor, hazardous
(classified) NEMA 4X locations.
Enclosure: Impact-resistant polycarbonate body, color: gray; clear
polycarbonate cover; NEMA 4X, IP67. ½" conduit hole provided at base.
Weight: 12 oz (340 g)
Precision Digital corPoration
model pD675 NemA 4X

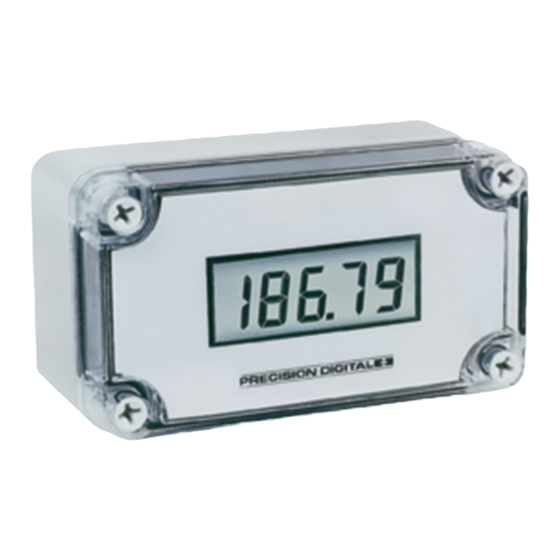

4½ Digits 0.7" (17.8 mm) lCD, 19,999
operates from -20 to 65°C
easy to Calibrate
DimeNsioNs
pD675
4.72 (120)
3.15
(80)
5.51 (140)
orDeriNg iNFormAtioN
PD675 • 4½ Digits Loop-Powered Meter
Model Description
PD675-N NEMA 4X Loop-Powered Meter
Accessories
Model Description
Panel Mounting Kit for PD675
PDA6844
(PDA6844 does not provide NEMA 4X seal to the panel)
PDA6845 2" Pipe Mounting Kit
PDA6845-SS 2" Pipe Mounting Kit SS
®
Units: Inch (mm)
Wall
Mounting
2.56 (65)
Holes
Beneath
Cover
Screws
2.36
(60)
www.predig.com
0.79
(20)
