Installation

The TYCO Series TY-B and TY-FRB
sprinklers must be installed in accor-
dance with this section.
General Instructions
Do not install any bulb type sprin-
kler if the bulb is cracked or there is
a loss of liquid from the bulb. With the
sprinkler held horizontally, a small air
bubble should be present. The diam-
eter of the air bubble is approximately
1/16 in. (1,6 mm) for the 135°F (57°C)
and 3/32 in. (2,4 mm) for the 360°F
(182°C) temperature ratings.
A 1/2 in. NPT sprinkler joint should be
obtained with a minimum to maximum
torque of 7 to 14 lb-ft (9,5 to 19,0 N∙m).
A 3/4 in. NPT sprinkler joint should be
obtained with a minimum to maximum
5/8±1/4"
(15,9±6,4 mm)
FACE OF
SPRINKLER
FITTING
MOUNTING
SURFACE
SERIES TY-B or TY-FRB
CLOSURE
(TY-FRB SHOWN)

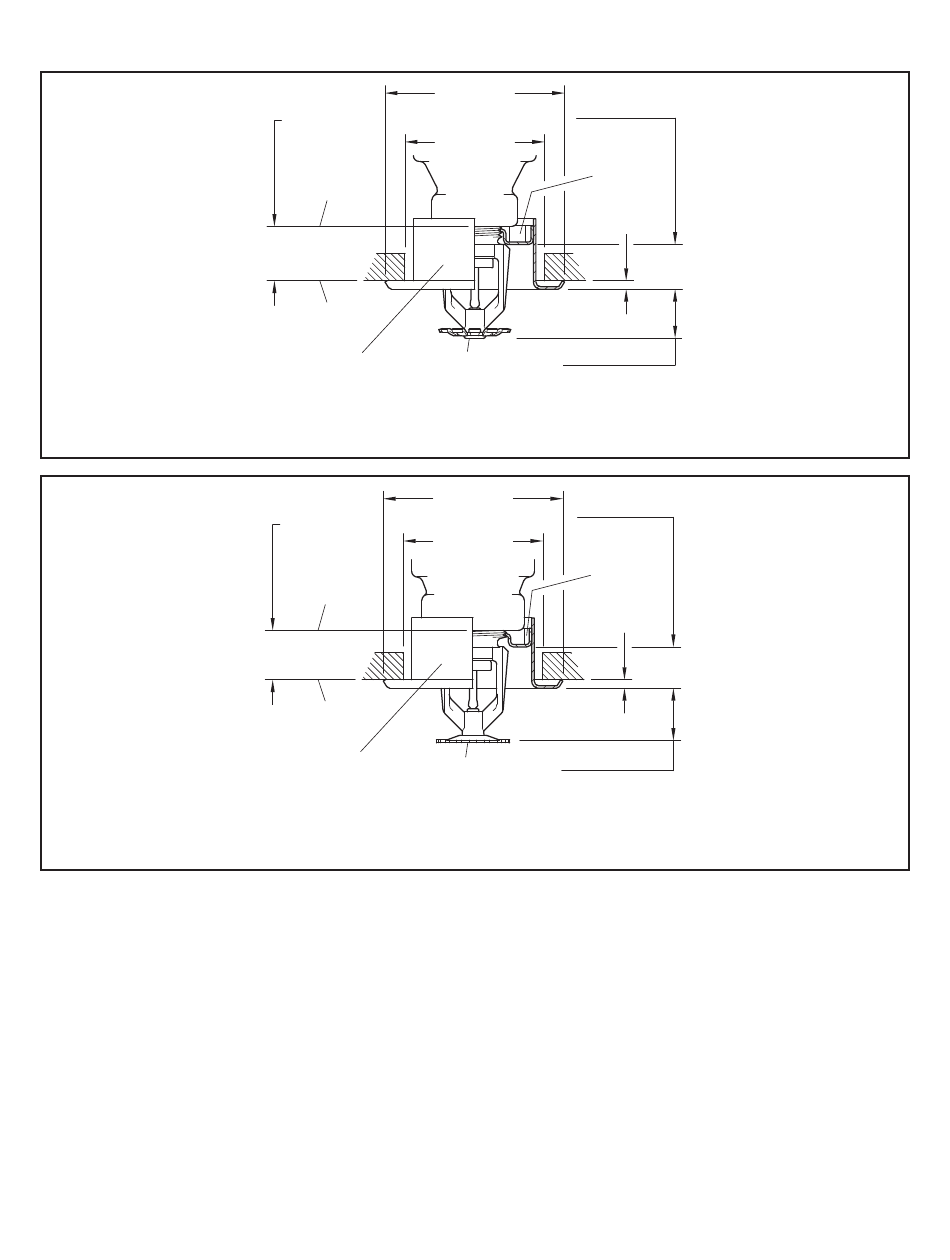

SERIES TY-B OR TY-FRB PENDENT SPRINKLER ASSEMBLY
WITH STYLE 10 RECESSED ESCUTCHEON
5.6 K-FACTOR, 1/2 IN. NPT
5/8±1/4"
(15,9±6,4 mm)
FACE OF
SPRINKLER
FITTING
MOUNTING
SURFACE
CLOSURE
SERIES TY-B or TY-FRB
(TY-FRB SHOWN)
SERIES TY-B OR TY-FRB PENDENT SPRINKLER ASSEMBLY
WITH STYLE 40 RECESSED ESCUTCHEON
8.0 K-FACTOR, 3/4 IN. NPT
torque of 10 to 20 lb-ft (13,4 to
26,8 N∙m). Higher levels of torque may
distort the sprinkler inlet and cause
leakage or impairment of the sprinkler.
Do not attempt to compensate for
insufficient adjustment in the Sprinkler
by under- or over-tightening the Sprin-
kler. Re-adjust the position of the sprin-
kler fitting to suit.
Series TY-B and TY-FRB Upright
and Pendent Sprinklers
The Series TY-B and TY-FRB Upright
and Pendent Sprinklers must be
installed in accordance with the fol-
lowing instructions:
Step 1A. Pendent sprinklers must be
installed in the pendent position, and
upright sprinklers are to be installed in
the upright position.
2-7/8" DIA.
(73,0 mm)
3/4" (19,1 mm)
1/4" (6,4 mm)
2-1/4" DIA.
(57,2 mm)
MOUNTING
PLATE
(3,2 mm)
1-5/16" (33,3 mm)
13/16" (20,6 mm)
FIGURE 13
2-7/8" DIA.
(73,0 mm) 3/4" (19,1 mm)
1/4" (6,4 mm)
2-1/4" DIA.
(57,2 mm)
MOUNTING
PLATE
1/8"
(3,2 mm)
1-3/8" (34,9 mm)
7/8" (22,2 mm)
FIGURE 14
1/8"
Step 2A. With pipe thread sealant
applied to the pipe threads, hand
tighten the sprinkler into the sprinkler
fitting.
Step 3A. Tighten the sprinkler into the
sprinkler fitting using only the W-Type
6 Sprinkler Wrench (See Figure 16).
With reference to Figures 1, 2, 3, and
4, the W-Type 6 Sprinkler Wrench is to
be applied to the wrench flats.
