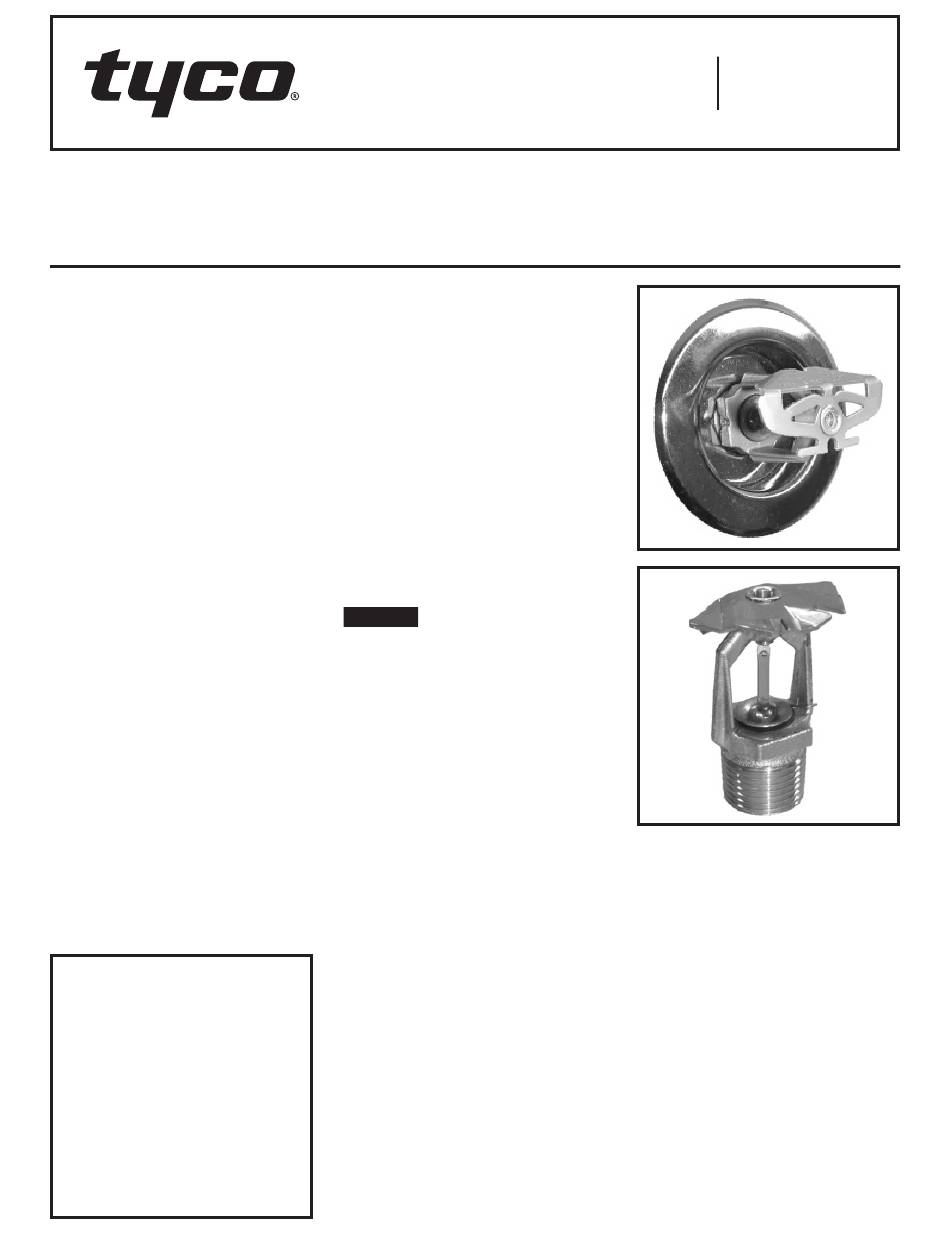

Johnson Controls tyco TY-FRB Series Manual

Series TY-FRB — 5.6 K-factor
Horizontal and Vertical Sidewall Sprinklers
Quick Response, Standard Coverage
General
Description

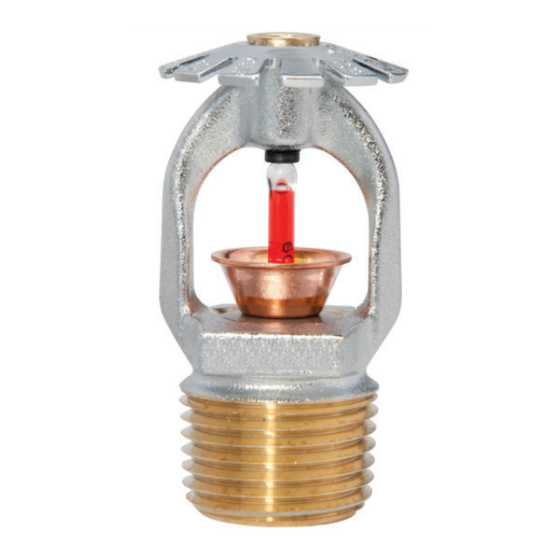

The Series TY-FRB, 5.6 K-factor, Hori-
zontal and Vertical Sidewall Sprinklers
described in this data sheet are quick
response -standard coverage, dec-
orative 3 mm glass bulb type spray
sprinklers designed for use in light and
ordinary hazard, commercial occu-
pancies such as banks, hotels, shop-
ping malls, etc. They are designed for
installation along a wall or the side of
a beam and just beneath a smooth
ceiling. Sidewall sprinklers are com-
monly used instead of pendent or
upright sprinklers due to aesthetics or
building construction considerations,
where piping across the ceiling is not
desirable.
The recessed version of the Series
TY-FRB Horizontal Sidewall Sprinkler
is intended for use in areas with a fin-
ished wall. It uses a two-piece Style
10 Recessed Escutcheon with 1/2 in.
(12,7 mm) of recessed adjustment or up
to 3/4 in. (19,1 mm) of total adjustment
from the flush sidewall position, or a
two-piece Style 20 Recessed Escutch-
eon with 1/4 in. (6,4 mm) of recessed
adjustment or up to 1/2 in. (12,7 mm)
of total adjustment from the flush side-
wall position. The adjustment provided
by the Recessed Escutcheon reduces
the accuracy to which the fixed pipe
nipples to the sprinklers must be cut.
Corrosion resistant coatings, where
applicable, are utilized to extend the life
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
of copper alloy sprinklers beyond that
which would otherwise be obtained
when exposed to corrosive atmo-
spheres. Although corrosion resistant
coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently,
it is recommended that the end user
be consulted with respect to the suit-
ability of these coatings for any given
corrosive environment. The effects of
ambient temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
NOTICE
The Series T Y-FRB
described herein must be installed
and maintained in compliance with
this document, as well as with the
applicable standards of the National
Fire Protection Association, in addition
to the standards of any other authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers
TY3331. . . . . . . . . . . . . . . . Horizontal
TY3431. . . . . . . . . . . . . . . . . . Vertical
JULY 2018
Worldwide
Contacts
Sprinklers
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
LPCB Approved
NYC Approved
(Refer to Table A for complete approval
information including corrosion resistant
status.)
Maximum Working Pressure
Refer to Table B
Discharge Coefficient
K=5.6 GPM/psi
Temperature Ratings
Refer to Table A
www.tyco-fire.com
1/2 (80,6 LPM/bar 1/2 )
TFP176
