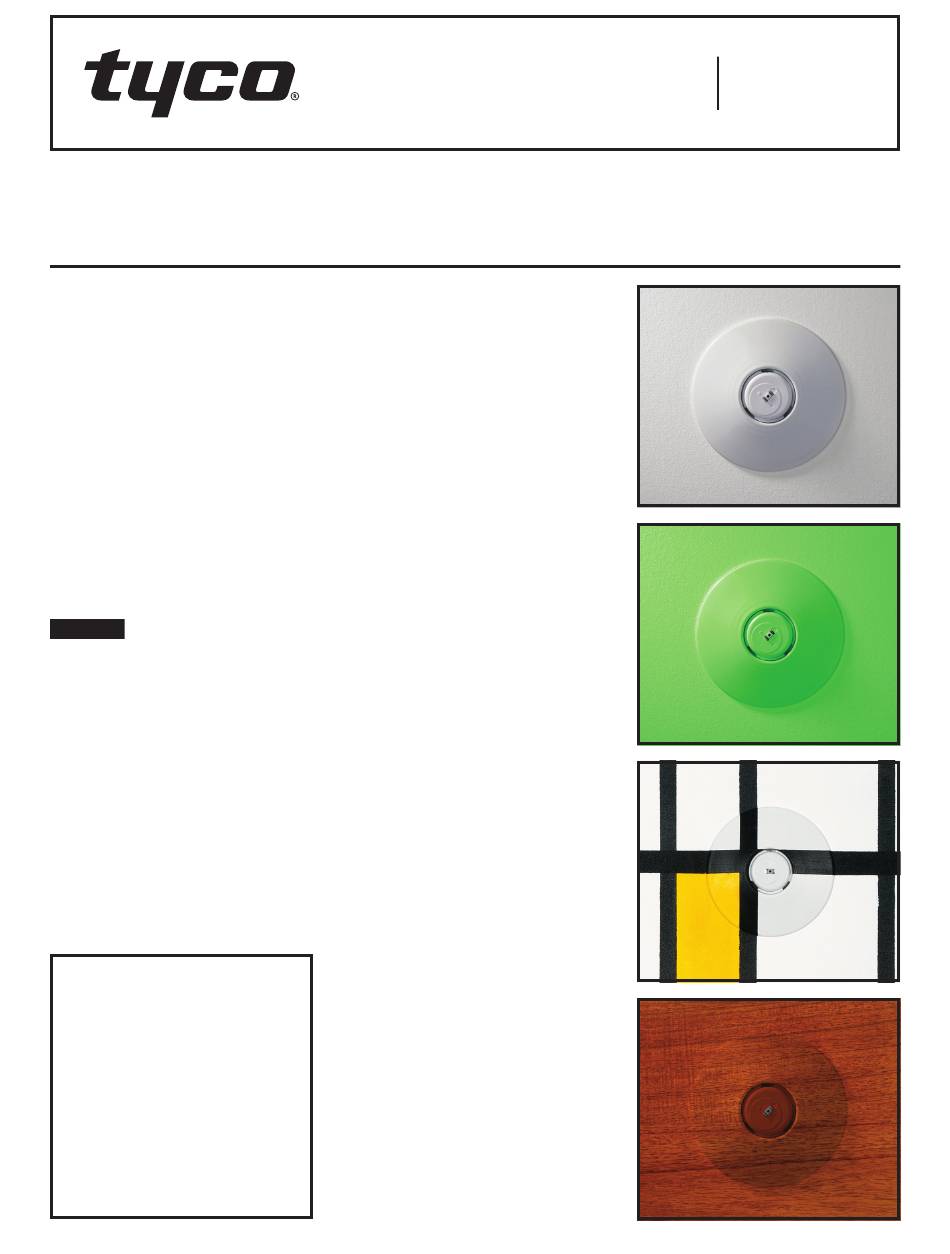

RAVEN Studio Sprinklers
5.6K Pendent and Horizontal Sidewall
Quick Response, Standard and Extended Coverage
General
Description
TYCO RAVEN Studio Sprinklers 5.6K
Pendent and Horizontal Sidewall (HSW)
Quick Response, Standard Coverage
for Light and Ordinary Hazard applica-
tions and Extended Coverage for Light
Hazard applications only, are intended
for use in areas as designed per NFPA
13.

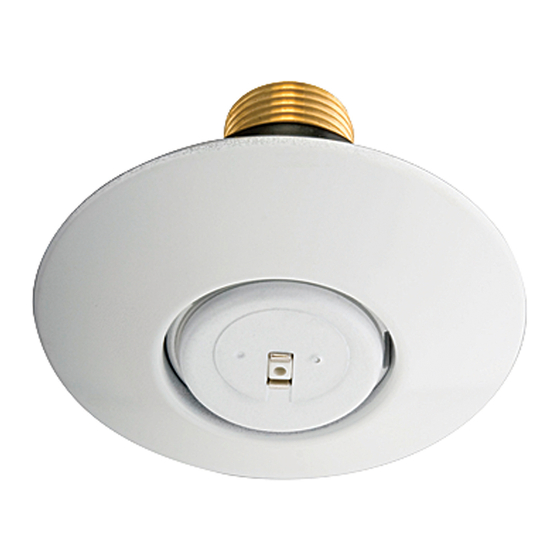

The flush design is made aesthetically
appealing by concealing the deflec-
tor and other operating parts behind
the link assembly. The RAVEN Studio
Sprinklers, with a heat sensitive solder
type release element, are listed as
quick response sprinklers.
NOTICE
RAVEN Studio Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment and with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any authorities having
jurisdiction. Failure to do so may impair
the performance of these devices.
Johnson Controls specifically dis-
claims any liability for damages or
injury (including death) arising out of
or caused by manipulation, disman-
tling, or misuse of RAVEN Studio Sprin-
klers or the use or attempted use of the
RAVEN Studio Sprinklers or any com-
ponent thereof as an instrument unre-
lated to its intended function as a fire
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 16
protection device.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Numbers (SINs)
Standard Coverage
TY1281 – Pendent
TY1381 – Horizontal Sidewall
Extended Coverage
TY1282 – Pendent
TY1382 – Horizontal Sidewall
Technical
Data
Approvals
UL and C-UL Listed
Maximum Working Pressure
175 psi (12,1 bar)
Thread Connection
Adapter: 1/2 in. NPT x ISO 228 G3/8 in.
Sprinkler: ISO 228 G3/8 in.
Note: Threads per ISO 228 are parallel
pipe threads.
Discharge Coefficient
K=5.6 gpm/psi 1/2 (80,6 lpm/bar
Temperature Rating
165°F (74°C)
Finishes
Sprinkler: White, Grey, or Custom Color
Escutcheon: White, Grey, Chrome,
Primed*, Custom Color, or Electropolish**
(Refer to Ordering Procedure for details.)
* Ready to paint-in-place
** Chrome-coated appearance, available for Stainless
Steel only
Physical Characteristics
Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Brass
Deflector Assembly . . . . . . . . . . . . . . . . . Bronze
Sealing Assembly . Beryllium Nickel w/TEFLON
Link Assembly . . . . . . . . . . . . . . . . . . . . . Copper
Thread Adapter . . . . . . . . . . . . . . . . . . . . . Brass
Escutcheon . . . . . . . . Carbon or Stainless Steel
