TFP620
Page 6 of 8
NO
MAXIMUM
HEIGHT 1/2" (12,7 mm)
TO 4" (101,6 mm)
13'-0"
NON-OPERABLE
(3,96 m)
GLASS WINDOW
MAXIMUM
EXPOSED
GLAZING INSTALLATION NOTE:
HEIGHT POSITION SPRINKLER
WITH FRAME ARMS
ALIGNED VERTICALLY
AND MARKED SIDE OF
DEFLECTOR FACING
AND PARALLEL
TO GLAZING
MODEL WS HORIZONTAL SIDEWALL SPRINKLER
"TOP"
INDICATED ON
SPRINKLER DEFLECTOR

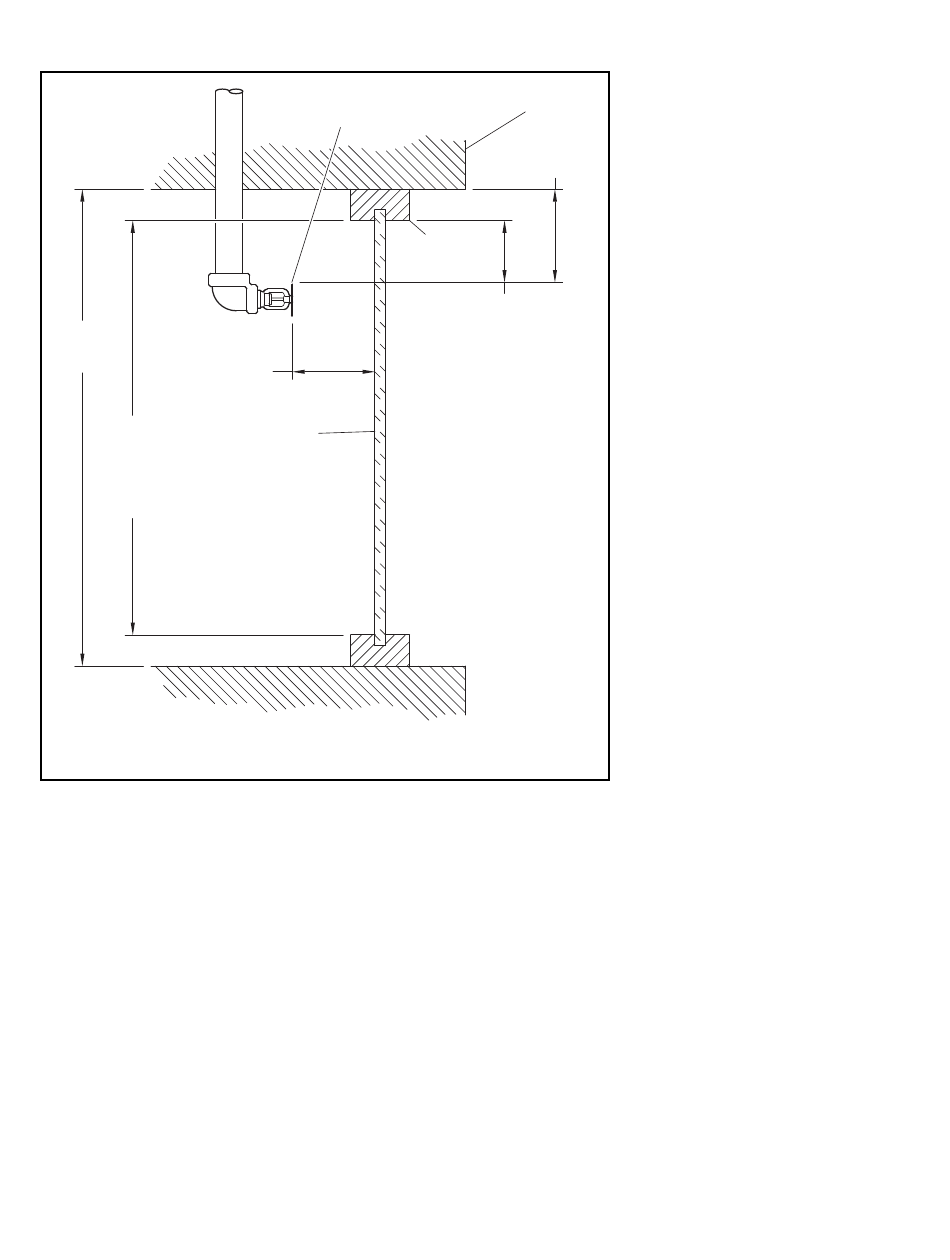

FIGURE 3C
TYPICAL INSTALLATION
BUILDING
STRUCTURE
NO MAXIMUM
DISTANCE
WINDOW
FRAME
2" (50,8 mm)
± 1" (25,4 mm)
FOR GLASS TYPES
OTHER THAN FIRELITE
PLUS WS CERAMIC GLASS
BY TGP, ALL COMBUSTIBLE
MATERIALS SHALL BE
KEPT 2" (50,8 mm) MINIMUM
FROM SPRINKLERED FACE
OF GLAZING. THIS MAY BE
DONE THROUGH USE OF
MINIMUM 3'-0" (0,9 m)
PONY WALL
MODEL WS SPRINKLER
SHOWN ON ONE SIDE OF
GLAZING FOR CLARITY

Installation

The TYCO Model WS Specific Appli-
cation Window Sprinklers must be
installed in accordance with this
section.
General Instructions
Do not install any bulb-type sprinkler
if the bulb is cracked or there is a loss
of liquid from the bulb. With the sprin-
kler held horizontally, a small air bubble
should be present. The diameter of the
air bubble is approximately 1/16 in. (1,6
mm).
A leak-tight 1/2 in. NPT sprinkler joint
should be obtained by applying a min-
imum-to-maximum torque of 7 to 14
ft-lb (9,5 to 19,0 N∙m). Higher levels of
torque may distort the sprinkler inlet
with consequent leakage or impairment
of the sprinkler.
Step 1. Install the pendent vertical
sidewall sprinkler only in the pendent
position with the center-line of the
sprinkler parallel to the glass surface.
Orient the sprinkler so that the direc-
tion of flow indicated on the sprinkler
deflector is facing the window.
Step 2. Install the horizontal sidewall
sprinkler only in the horizontal position
with the center-line of the sprinkler per-
pendicular to the glass surface. Orient
the sprinkler so that the word "Top"
indicated on the sprinkler deflector is
facing the top of window frame.
Step 3. With pipe-thread sealant
applied to the pipe threads, hand-
tighten the sprinkler into the sprinkler
fitting.
Step 4. With reference to Figures 1 or
2, apply End A of W-Type 20 Sprinkler
Wrench only (Figure 4) to the sprinkler
wrench flats and tighten the sprinkler
into the sprinkler fitting.
