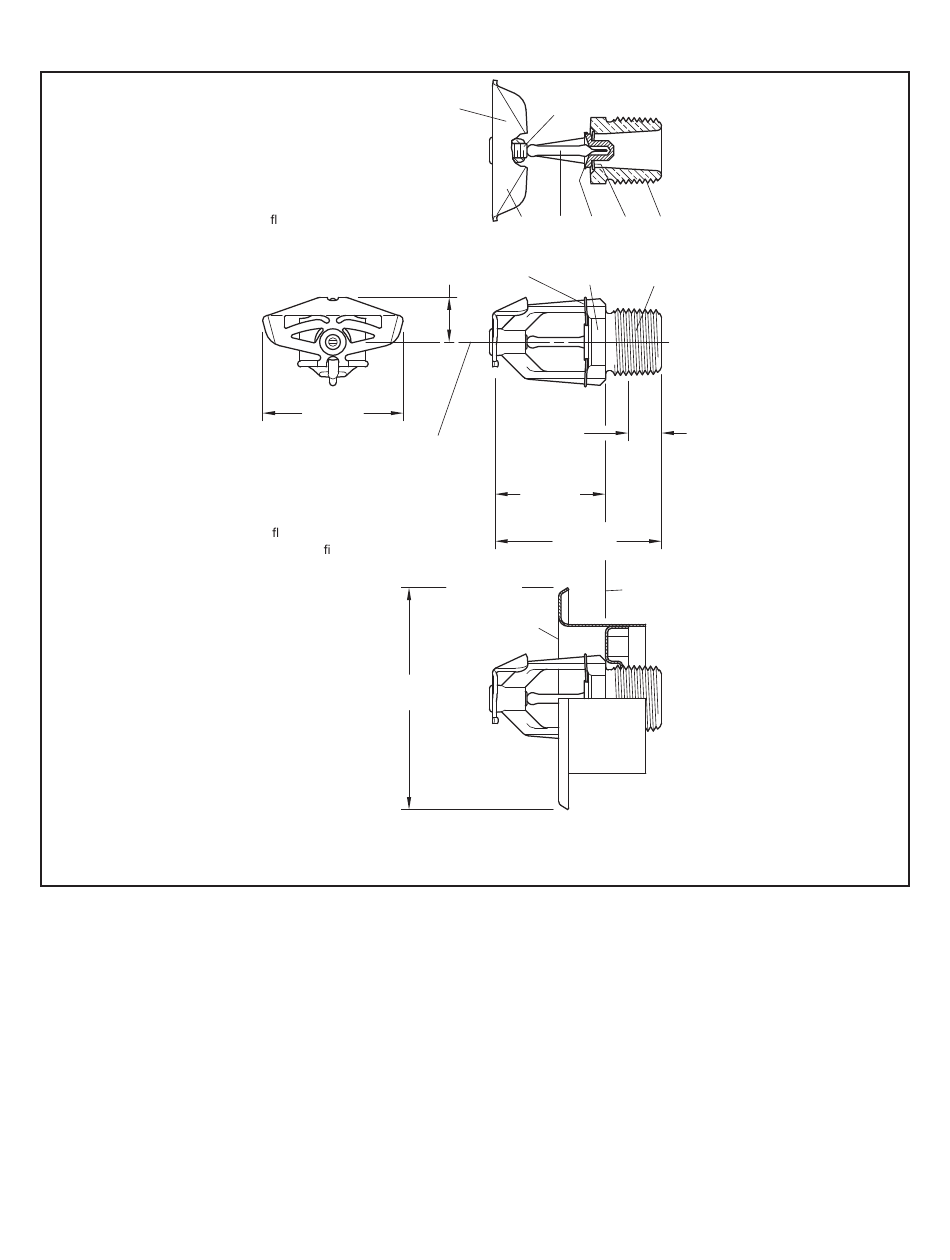

SERIES TY-FRB HORIZONTAL SIDEWALL QUICK RESPONSE SPRINKLER
STAINLESS STEEL (TY8381), SMO (TY8382) AND TITANIUM (TY8383)
Components:
DEFLECTOR
*
-
1 Frame
-
2 Button
-
3 Sealing
Assembly
-
4 Bulb
-
5 Compression
Screw
*
-
6 De ector
-
7 Ejection
Spring
1-13/16"
(46,0 mm)
CENTERLINE
OF SPRINKLER
WATERWAY
*
Temperature
rating is indicated
on de ector or
adjacent to ori ce
seat on frame.
**
Pipe thread
connections per
ISO 7-1 can be
provided on
special request.
2-7/8" DIA.
(73,0 mm)
5.6 K-FACTOR, 1/2 IN. NPT
5
HAT
*
6 4 2
WRENCH
9/16"
(14,3 mm) 7 FLATS
7/16"
(11,1 mm)
NOMINAL
MAKE-IN
1-1/2"
(38,1 mm)
2-1/4"
(57,2 mm)
STYLE 10
RECESSED
ESCUTCHEON
FIGURE 10
*
3 1
**
1/2"
NPT
ESCUTCHEON
PLATE SEATING
SURFACE
