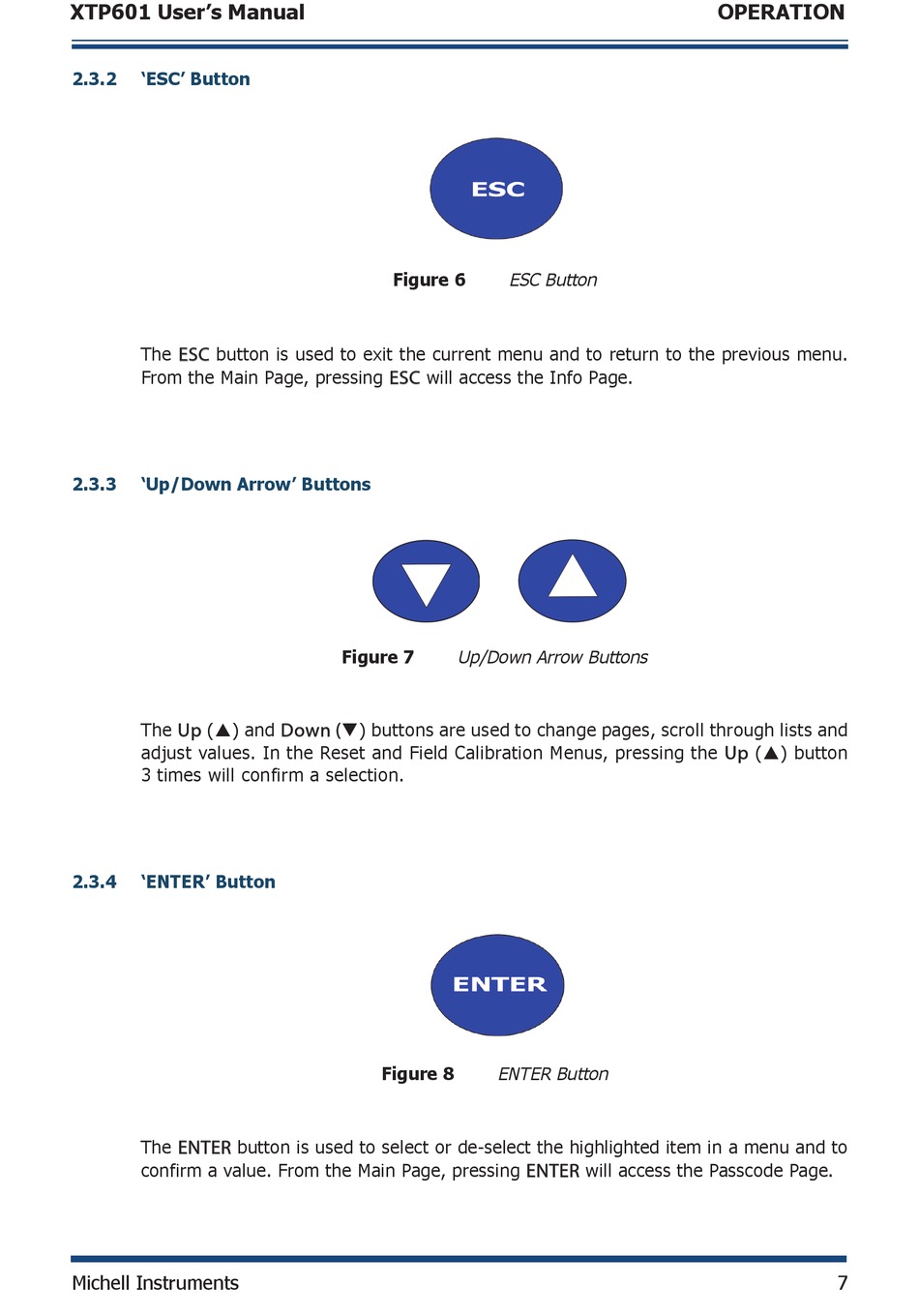

XTP601 User's Manual
2.3.2

'ESC' Button

The ESC ESC button is used to exit the current menu and to return to the previous menu.
From the Main Page, pressing
2.3.3 'Up/Down Arrow' Buttons
The Up Up () and
adjust values. In the Reset and Field Calibration Menus, pressing the
3 times will confirm a selection.
2.3.4

'ENTER' Button

The ENTER ENTER button is used to select or de-select the highlighted item in a menu and to
confirm a value. From the Main Page, pressing
Michell Instruments
Figure 6
ESC ESC will access the Info Page.
Figure 7
Down ( Down ( ) buttons are used to change pages, scroll through lists and
Figure 8
ESC Button

Up/Down Arrow Buttons

ENTER Button
ENTER ENTER will access the Passcode Page.
OPERATION
Up Up () button
7
