RUPTELA HCV5 Connection Instructions

Tracking devices and LLS (RS485 Digital Fuel level Sensor)
LLS Configuration
It is very important to configure your LLS correctly before connecting it to the tracking device. Key points
for the configuration:
The LLS Baud rate value has to be set to 19200
❖
The LLS must be configured to send data only upon request from the tracking device
❖
LLS data output should be binary, 10 or 12 bits
❖
Connecting the LLS to the Tracking Devices

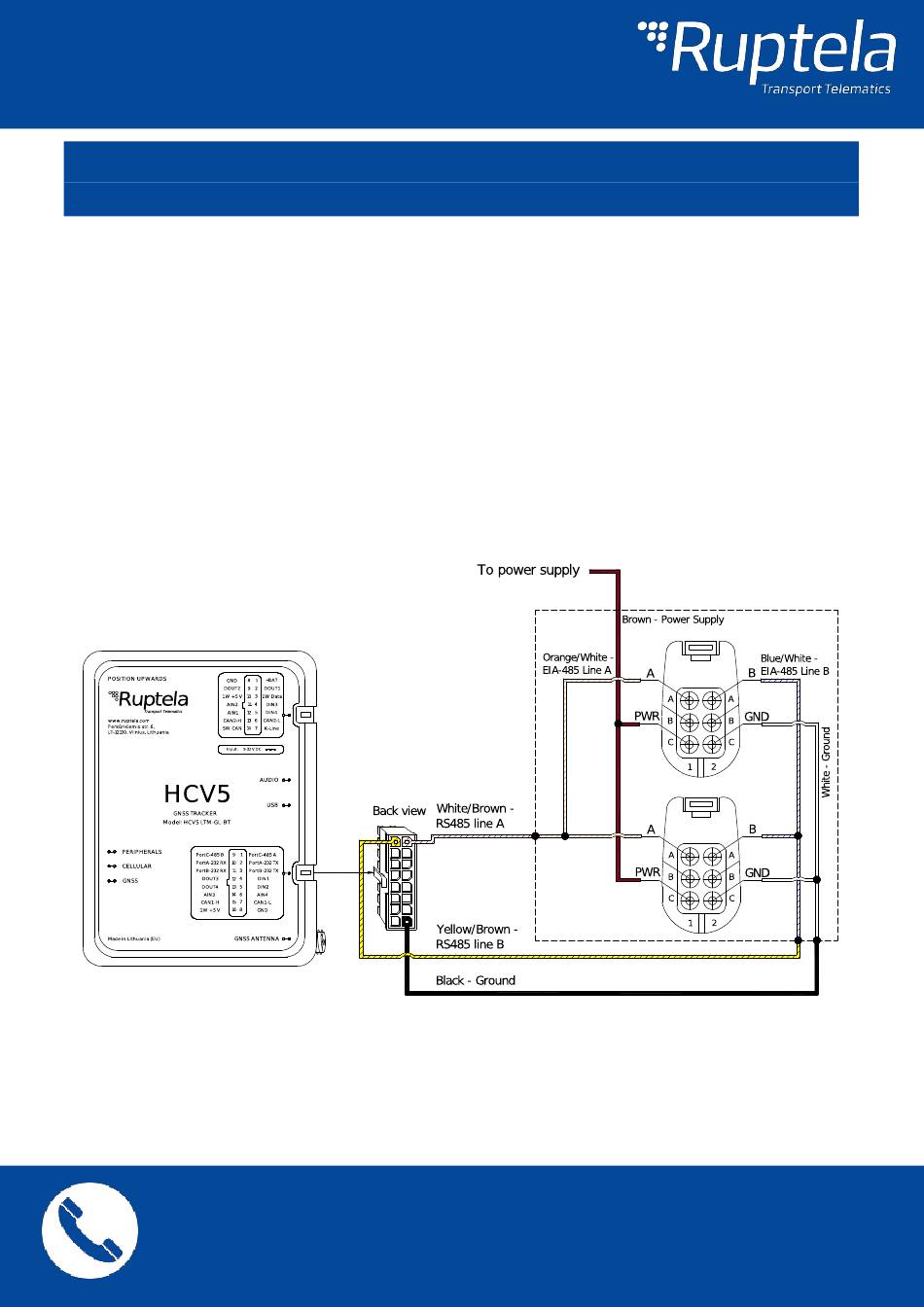

LLS (20160, RS485) should be connected to the tracking device as follows ( see the pictures below):
Advanced Family devices:
Contacts:
Connection Instructions
