Tracking Devices and LLS (RS232 Digital Fuel Level Sensor)

LLS Configuration

It is very important to configure your LLS correctly before connecting it to the tracking device. Key points
for the configuration:
The LLS Baud rate value has to be set to 19200.
The LLS must be configured to send data only upon request from the tracking device.
LLS data output should be binary, 10 or 12 bits.

Connecting the LLS to the Tracking Devices

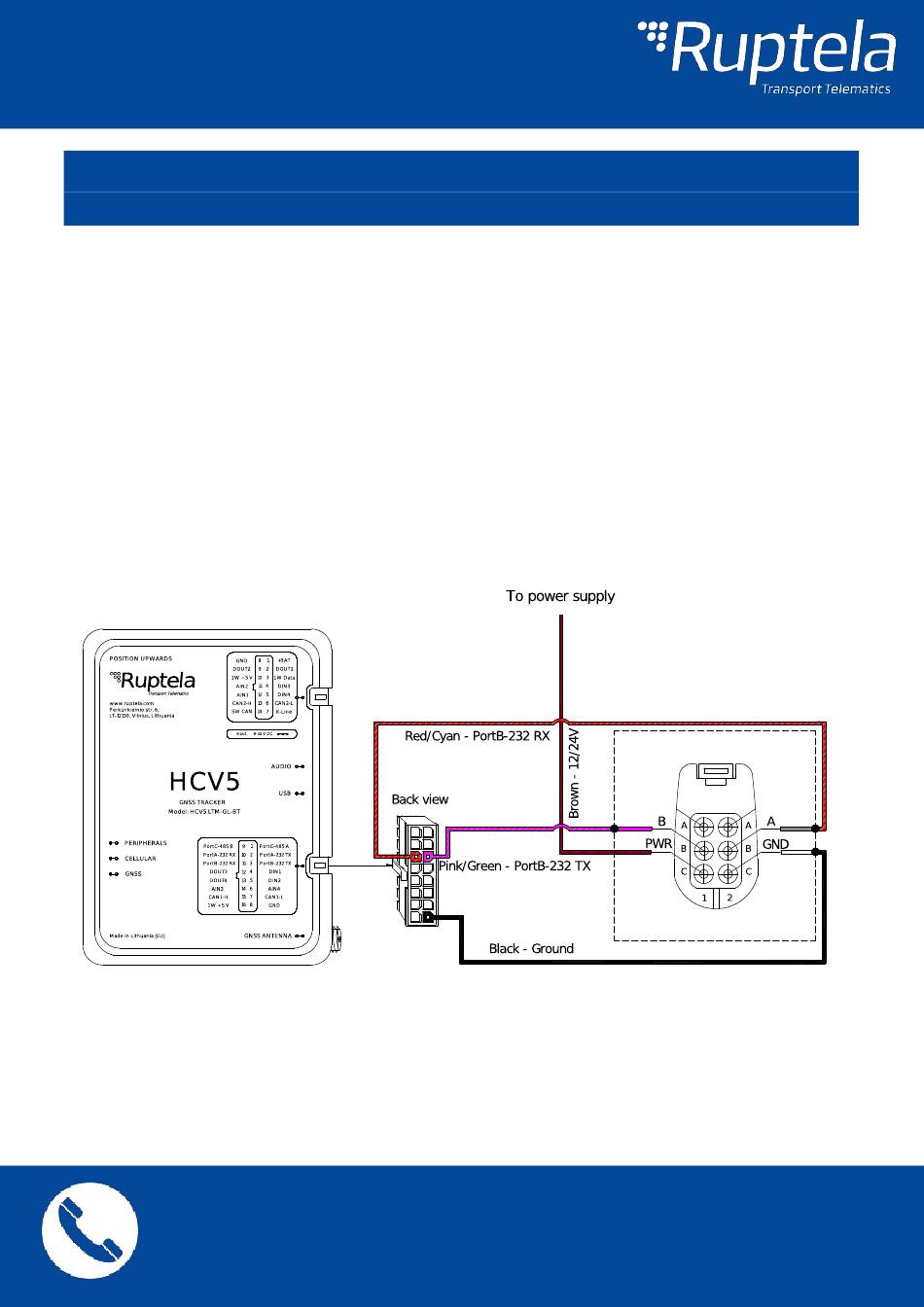

LLS (20160, RS232) should be connected to the tracking device as follows ( see the pictures below) :

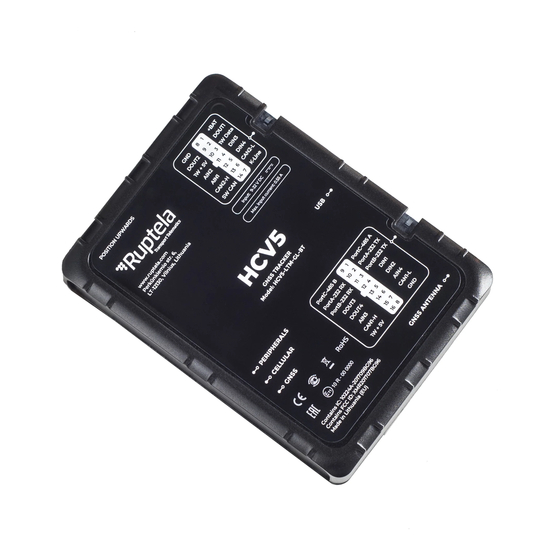

Advanced Family devices:
Contacts:
Connection Instructions
Main Support no.: +370 5 2045030
Polish Support no.: +48 22 2092532
Ukrainian Support no.: +380 947 107319
Web: www.ruptela.lt
Email: support@ruptela.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCV5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RUPTELA HCV5

  • Page 1 Connecting the LLS to the Tracking Devices LLS (20160, RS232) should be connected to the tracking device as follows ( see the pictures below) : Advanced Family devices: Main Support no.: +370 5 2045030 Web: www.ruptela.lt Contacts: Polish Support no.: +48 22 2092532 Email: support@ruptela.com...
  • Page 2 RS-232 “Rx” Pin5 (PortA RX) Pin10 (PortA RX) Orange-White (A1) EIA-485 “Line A” Blue-White (A2) EIA-485 “Line B” Main Support no.: +370 5 2045030 Web: www.ruptela.lt Contacts: Polish Support no.: +48 22 2092532 Email: support@ruptela.com Ukrainian Support no.: +380 947 107319...
  • Page 3 Fuel temperature ❖ You can connect only one LLS to the RS232 Port. You can use both PortA and PortB. Main Support no.: +370 5 2045030 Web: www.ruptela.lt Contacts: Polish Support no.: +48 22 2092532 Email: support@ruptela.com Ukrainian Support no.: +380 947 107319...
