Table of Contents

Make sure that you have:
•
An OBD2 standard compatible vehicle
•
A computer with Windows 7/8/10
•
An internet connection (or a predownloaded
•
A USB A to USB micro (Type B) cable
•
An
OBD2 harness

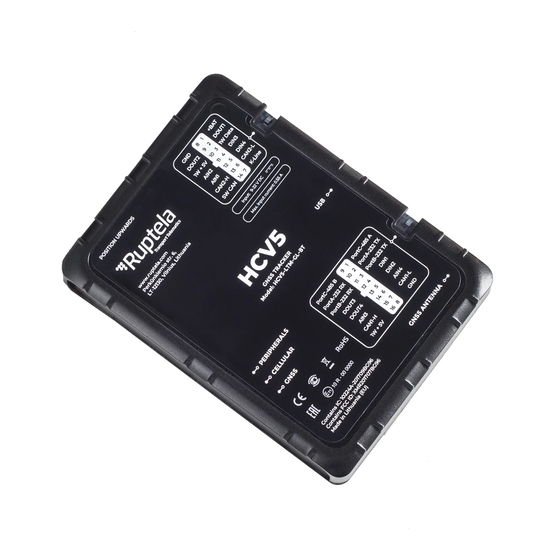

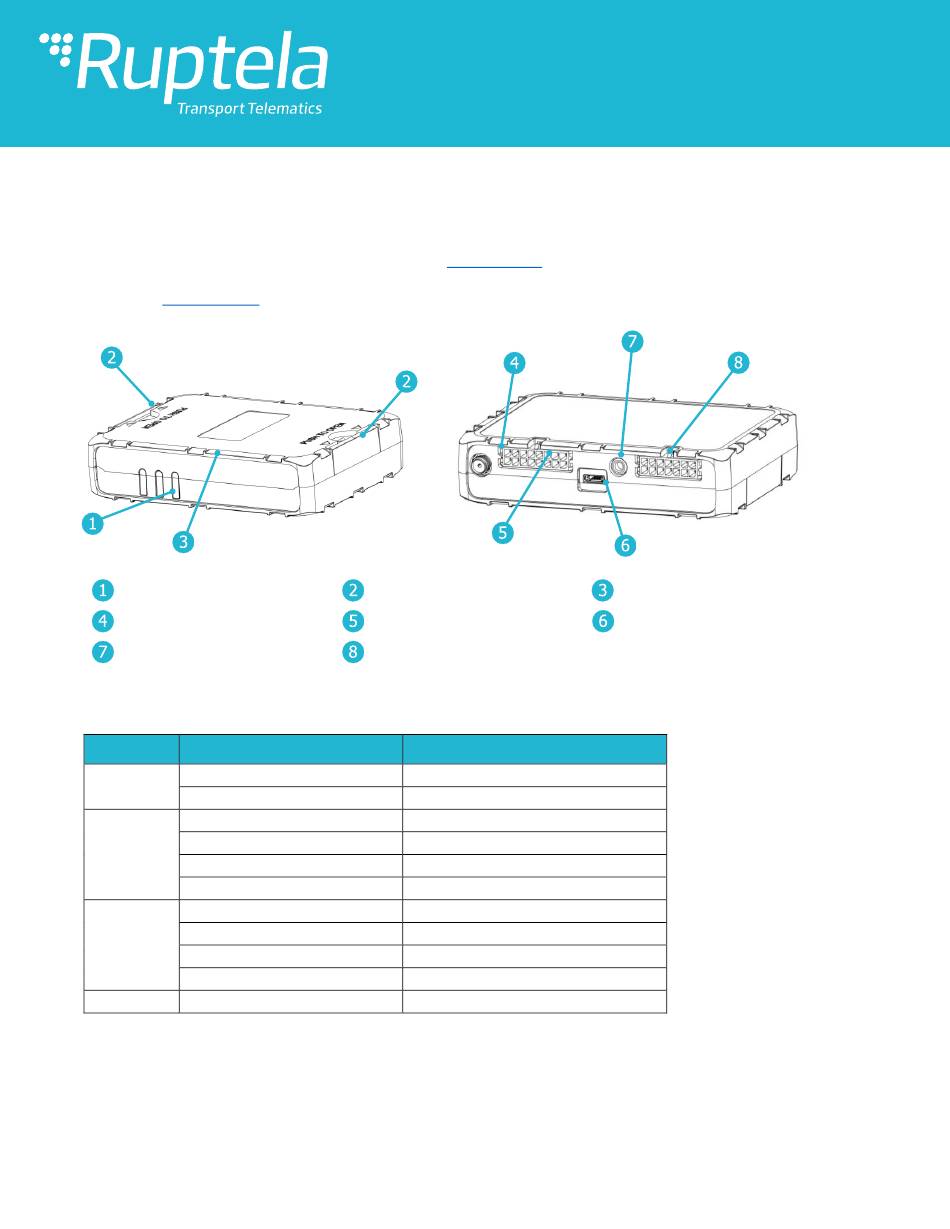

Device overview
Indication LEDs
GNSS antenna port
Audio port
Indication LED patterns
LED
Pattern
GNSS
Once every second
Once every 0.4 seconds
Cellular
Once every 4 seconds
Once every second
Once every 0.2 seconds
Always on
Peripherals
Always off
Once every 5 seconds
Twice every 5 seconds
Three times every 5 seconds
All
Once every 5 seconds
www.ruptela.com
OBD Solution
Quick Start Guide
Q
(recommended)
Opening handles
16 Pin port
14 Pin port
Description
Accurate signal
No signal
Connected to network and internet
Connected to network, no internet
No signal
Link with the server is open
No devices connected
One device connected
Two devices connected
Three devices connected
Sleep mode
support@ruptela.com | +370 5 2045030
Device
Center)
Grooves for zip-ties
Micro USB port
HCV5
LCV5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCV5 and is the answer not in the manual?

Questions and answers

Related Manuals for RUPTELA HCV5

Summary of Contents for RUPTELA HCV5

  • Page 1 Peripherals Always off No devices connected Once every 5 seconds One device connected Twice every 5 seconds Two devices connected Three times every 5 seconds Three devices connected Once every 5 seconds Sleep mode www.ruptela.com support@ruptela.com | +370 5 2045030...

  • Page 2: Device Pinout

    Analogue input 1 DOUT3 White/Purple Digital output 3 CAN2-H White CAN High DOUT4 White/Orange Digital output 4 Analogue input SW CAN Green/White Single-Wire CAN AIN3 White/Grey CAN1-H White/Red CAN High 1W+5V Red/ Yellow 1-Wire power www.ruptela.com support@ruptela.com | +370 5 2045030...
  • Page 3 Connect the device to your computer using a USB Select your device. cable. Click Connect device. Open the Connection settings. Configure Fleet Management System Main Server settings (TrustTrack server settings are entered by default). Configure GSM provider APN settings. www.ruptela.com support@ruptela.com | +370 5 2045030...
  • Page 4 All other needed settings are enabled by default. Note: If you are using our standard OBD2 harness, then CAN1 should be configured. Click Save to device to upload the config to the device. www.ruptela.com support@ruptela.com | +370 5 2045030...

  • Page 5: Installation

    If • Avoid installing near metal surfaces the status is red, click the Troubleshoot button for troubleshooting. Incorrect Correct Check what parameters are received by clicking Details in the CAN/K-Line Interfaces section. www.ruptela.com support@ruptela.com | +370 5 2045030...

  • Page 6: Wiring Diagram

    We highly recommend you read the user manual before using the device. Legal information Copyright © 2021 Ruptela. All rights reserved. Reproduction, transfer, distribution or storage of parts or all of the contents in this document in any form without the prior written permission of Ruptela is prohibited. Other products and company names mentioned in this document are trademarks or trade names of their respective owners.

This manual is also suitable for:

Lcv5

Table of Contents
