  • Page 1 FM-Eco4 Family User Manual 2018/05 Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 2: Table Of Contents

    IO settings ......................26 Integration protocol ......................31 Installation recommendations ....................32 Device installation ......................32 Device installation position ....................32 Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 3: Preface

    1.2 Document change log Date Version Change details 2018-04-30 Initial draft. 2018-05-11 Added description of automatic firmware update from configurator. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 4: Introduction

    Copyright © 2018 Ruptela. All rights reserved. Reproduction, transfer, distribution or storage of parts or all of the contents in this document in any form without the prior written permission of Ruptela is prohibited. Other products and company names mentioned in this document are trademarks or trade names of their respective owners.

  • Page 5: References

    Caution! If an incorrect type of battery is used for replacement, there is a high explosion risk. Dispose of used batteries according to the environmental requirements. For configuration use cables that were purchased from Ruptela. Ruptela is not responsible for any harm or damage caused, while using wrong cables for the computer ↔ device connection.

  • Page 6: Device Description

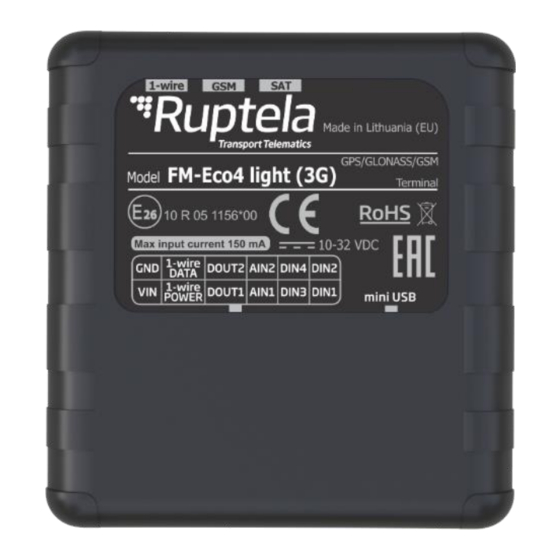

    FM-Eco4 light S (the most basic version, no internal battery) FM-Eco4 light+ S (includes an internal battery) FM-Eco4 light 3G (no internal battery, includes UMTS (3G) connectivity) FM-Eco4 light+ 3G (includes an internal battery and UMTS (3G) connectivity) FM-Eco4 light S FM-Eco4 light 3G 3.2 Package contents...

  • Page 7: Physical Characteristics

    1-Wire data transfer 3.6 Peripheral accessories There are several peripheral accessories that can be connected to FM-Eco4 devices. With these peripherals you can get even more features and extended functionalities. All available peripherals can be purchased from Ruptela. Please contact your sales manager for more details.

  • Page 8: Certification

    3.7 Certification FM-Eco4 devices have passed quality tests and comply with the following certifications: E-Mark CE ready RoHS 3.8 LED Status 3.8.1 GNSS LED When no GNSS signal is received or it is not accurate, the GNSS LED blinks as follows: When an accurate GNSS signal is received, the GNSS LED blinks as follows: 3.8.2 GSM LED...

  • Page 9: 1-Wire Led

    3.8.4 LED status in sleep and deep sleep modes When the device is in sleep/deep sleep mode, all three LEDs blink at the same time as follows: Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 10: Device Preparation

    ( ). Then push the remaining side down until the housing is fully closed. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 11: Connecting The Usb Cable

    Connect the 12 Pin cable plug to the Micro-Fit slot on see the picture on the right the device ( ). The cable can be connected only in one way. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 12: Device Configuration

    If you are running a 64-bit OS, launch dpinst_amd64.exe (2.) Windows 7 Users might get a Security Warning message. Click Yes (3.). Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 13 Wait for the setup to complete the installation and click Finish (5.). The driver is now installed and ready to use. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 14: Sample Configuration

    3. In the dialog window, select the sample configuration file that you have downloaded from the documentation website. 4. Click Open. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 15: Configuration Information

    4. Click the Send CFG button. The configuration will be sent to the device. Note The APN name, login and password should be provided by your mobile network operator. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 16: Advanced Configuration

    Particular attention must be paid when creating a DIFF file to avoid accidental changes to the configuration. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 17: Global Settings

    The first part of the configuration tool is Global settings. Global settings include connection and other settings independent from the profile settings – the global settings are the same for all profiles. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 18 SIM card. Once you enter the PUK code, you must set a new PIN. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 19 Towing detection – with towing detection the driver can be informed in case his vehicle is being towed. Information about towing events is sent to the server, therefore the driver might still have time Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 20 Eco-Drive options are used to configure the Eco-Drive functionality. It rates drivers according to how safe they drive or their behavior. The full functionality description can be found on our documentation website: Eco-Drive. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 21: Profile Settings

    Authorized IDs allows you to fill in a list of authorized IDs which can start the engine when ignition blocking is used. More information about this functionality is available on our documentation website: FM-Eco4 Pro4 Tco4 + Driver registration. Movement sensor sensitivity allows you to configure the sensitivity of the movement sensor according to your needs.
  • Page 22 Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 23 The Distance that was set has been travelled; The Time with engine has passed; The Radial turn of degrees that was entered has been detected. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 24 – the device operates only in 2G mode; UMTS only – the device operates only in 3G mode. Note FM-Eco4 devices with hardware versions that do not have a GSM/UMTS modem operate only in 2G Auto, GSM only UMTS only mode. For these devices the options have no effect.
  • Page 25 Almost all functionalities that are available in FM-Eco4 devices are also available in FM-Eco4 devices with a UMTS modem. Amongst the previously mentioned exceptions, the GSM/UMTS modem in this device does not support modem firmware update over the air. Operator list …...
  • Page 26 Note This functionality might be compatible with and might be supported by the 3G modems used in Ruptela FM devices. Key points regarding the temporary blacklist: The ban period is configurable. When all operators get into the ban list, the ban list is cleared;...

  • Page 27: Io Settings

    , the device will wait for suitable conditions to open the link to server and send the record. 10. You can configure the device to Switch to another profile after a change in parameter values. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 28 Clear all IO button, which disables all the enabled IOs along with their configuration in the selected profile. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 29 Lastly, the Enable IO button enables IOs for the selected interface. This button is available only if Protocol v1.1 is enabled! Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
  • Page 30 Examples of the custom SMS fields are shown below: Standard rules for SMS alerts apply, described in the “SMS Command list”, available at doc.ruptela.lt, section 1.2.2 “SMS alerts with date & time”. The maximum length of a custom SMS is 50 symbols.
  • Page 31 The selection of the digital input mode depends solely on the peripheral devices connected to the digital inputs. A connection example for both connection modes is shown below. Positive mode: Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...

  • Page 32: Integration Protocol

    Ground mode: Note FM-Eco4 light 3G devices do not have invertible digital inputs, therefore this functionality is unavailable for these devices. Integration protocol All integration and documentation related questions can be answered by Ruptela technical support: support@ruptela.com Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532...

  • Page 33: Installation Recommendations

    The device can be installed with an angle of up to 45° in any axis, but the top surface must be facing up in any case. Main Support no.: +370 5 2045030 Polish Support no.: +48 22 2092532 Ukrainian Support no.: +380 947 107319 support@ruptela.com www.ruptela.com...
