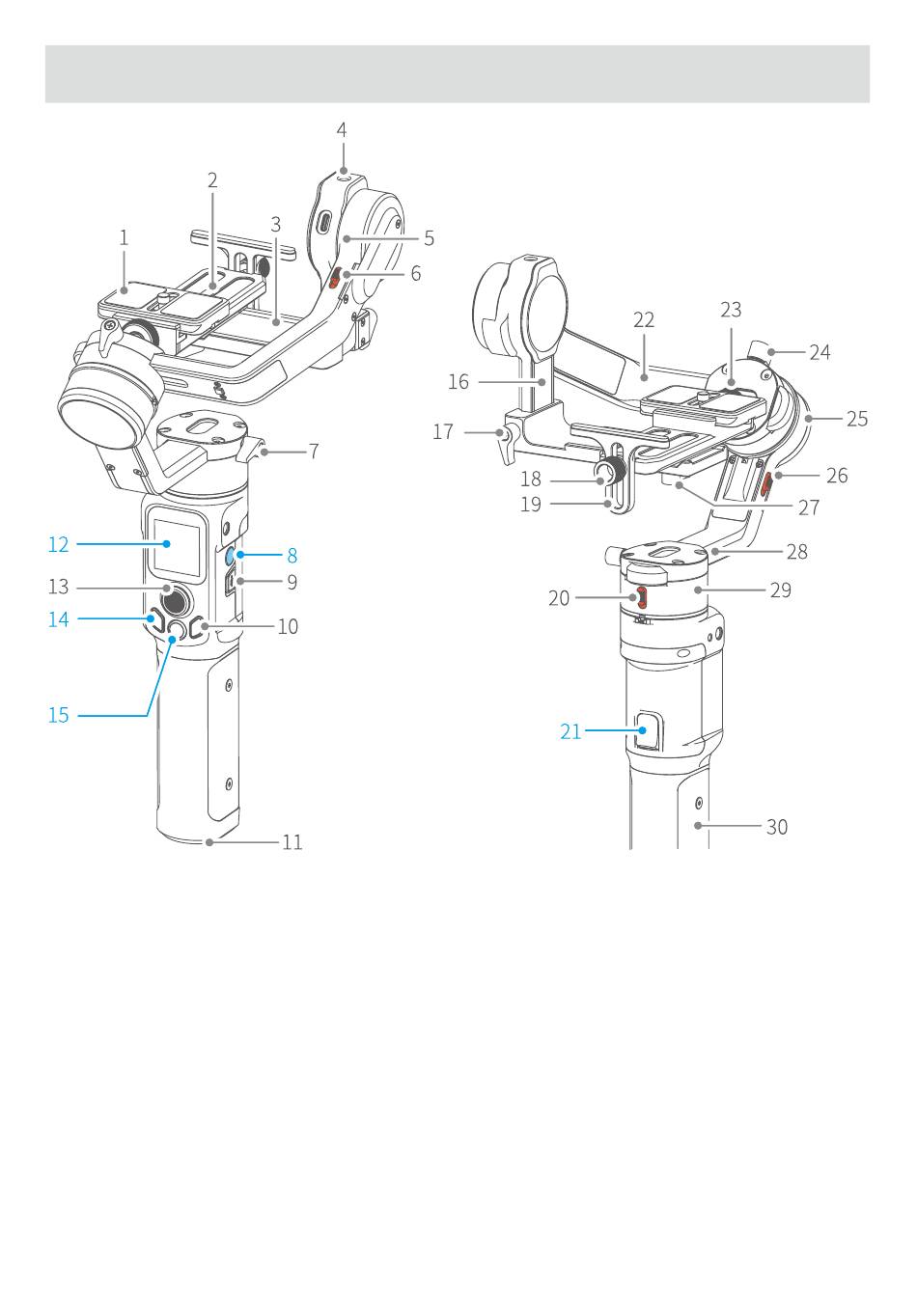

1. Product Overview

1. Arca quick release plate
2. Quick release plate
3. Fixed plate
4. 1/4 inch thread hole
5. Tilt axis
6. Tilt axis position lock
7. Vertical arm lock screw
8. Power button
9. USB-C port
10. Function button
11. 1/4 inch thread hole
3/8 inch thread hole
* This product does not include the camera.
12. Touch screen
13. Joystick
14. Mode button
15. Shutter button
16. Sliding arm
17. Sliding arm lock screw
18. Thumb screw
19. Lens holder
20. Pan axis position lock
21. Trigger button
22. Cross arm
23. Arca quick release plate
safety lock
24. Cross arm lock screw
25. Roll axis
26. Roll axis position lock
27. Quick release plate safety
lock
28. Vertical arm
29. Pan axis
30. Handle (built in battery)
