Safety Notes
Gloves should be worn during installation to
prevent crushing and cutting injuries.
The hot and cold supplies must be of equal
pressures.

Installation Instructions

• Prior to installation, inspect the product for
transport damages. After it has been installed, no
transport or surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
Technical Data
Operating pressure:
Recommended hot water temp.:
Test pressure:
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
The product is exclusively designed for drinking
water!
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
(1 MPa = 10 bar = 147 PSI)
max. 70°C
max. 70°C / 4 min
Assembly (see page 4)
English

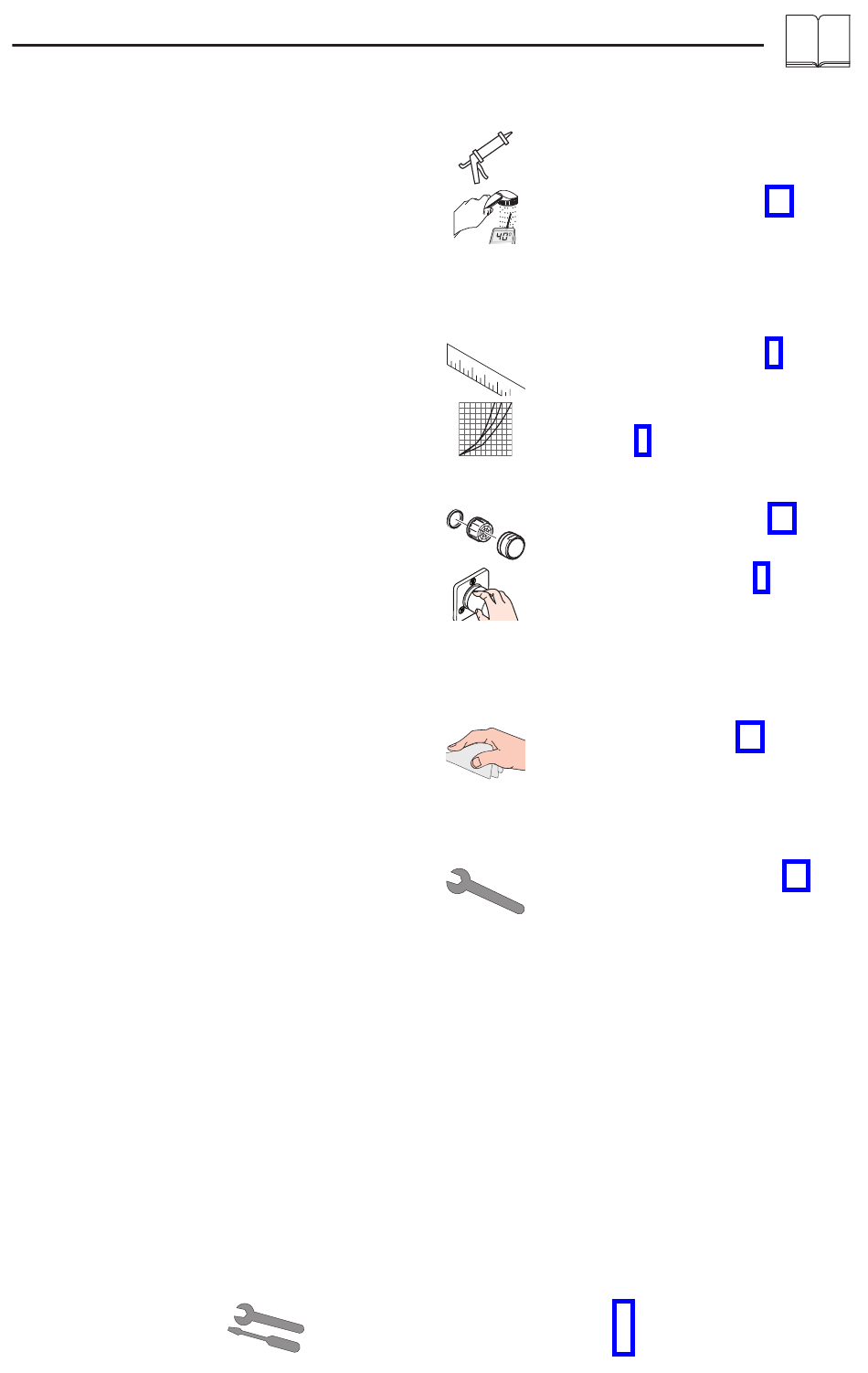

Symbol description

Do not use silicone containing acetic
acid!
Adjustment (see page 13)
To adjust the hot water limiter. Using a
hot water limiter in combination with
a continuous flow water heater is not
recommended.
Dimensions (see page 6)

Flow diagram

(see page 7)


Spare parts (see page 14)
Operation (see page 8)
Hansgrohe recommends not to use
65°C
as drinking water the first half liter of
water drawn in the morning or after a
prolonged period of non-use.
Cleaning (see page 10)
If the waterflow drops, clean the filter
located between hose and handspray.
Maintenance (see page 12)
The check valves must be checked
regularly according to DIN EN 1717 in
accordance with national or regional
regulations (at least once a year).
Normal spray
Regular
