If the field "On CMD" is checked, the converter publishes the topic when a new message from OPC UA is received;
If the field "On Timer" is checked, the converter publishes the topic cyclically with the delay defined in the field
In the field "Mnemonic" a description of the topic is defined.
MQTT S
UBSCRIBE

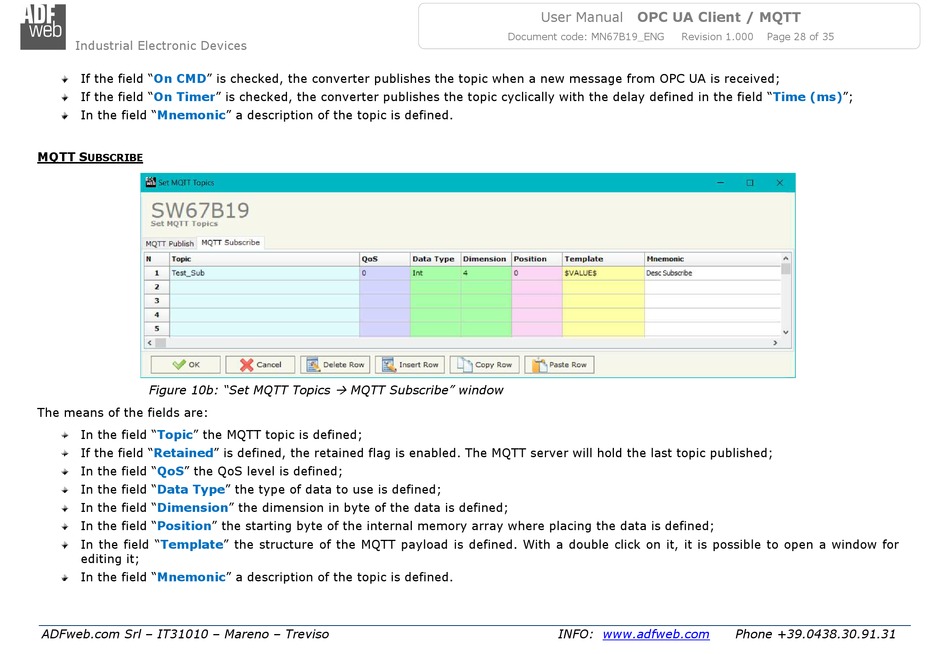

Figure 10b: "Set MQTT Topics
The means of the fields are:
In the field "Topic" the MQTT topic is defined;
If the field "Retained" is defined, the retained flag is enabled. The MQTT server will hold the last topic published;
In the field "QoS" the QoS level is defined;
In the field "Data Type" the type of data to use is defined;
In the field "Dimension" the dimension in byte of the data is defined;
In the field "Position" the starting byte of the internal memory array where placing the data is defined;
In the field "Template" the structure of the MQTT payload is defined. With a double click on it, it is possible to open a window for
editing it;
In the field "Mnemonic" a description of the topic is defined.
