Industrial Electronic Devices
User Manual
Revision 1.002
English

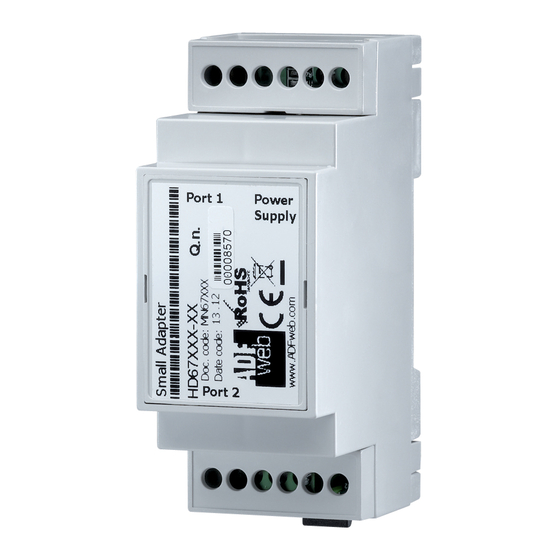

OPC UA Client / BACnet Slave - Converter
(Order Code: HD67B11-IP-B2 , HD67B11-MSTP-B2)
for Website information:
http://www.adfweb.com/?Product=HD67B11
for Price information:
http://www.adfweb.com/?Price=HD67B11-IP-B2
http://www.adfweb.com/?Price=HD67B11-MSTP-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Client / BACnet Slave
Document code: MN67B11_ENG
Revision 1.002
For others OPC UA Client devices, see also the following links:
OPC UA Client from/to ...
www.adfweb.com?Product=HD67B08
www.adfweb.com?Product=HD67B09
www.adfweb.com?Product=HD67B10
www.adfweb.com?Product=HD67B12
www.adfweb.com?Product=HD67B13
www.adfweb.com?Product=HD67B14
www.adfweb.com?Product=HD67B15
www.adfweb.com?Product=HD67B16
www.adfweb.com?Product=HD67B17
www.adfweb.com?Product=HD67B18
www.adfweb.com?Product=HD67B19
www.adfweb.com?Product=HD67B20
www.adfweb.com?Product=HD67B21
www.adfweb.com?Product=HD67B22
www.adfweb.com?Product=HD67B23
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Page 1 of 33
(Serial)
(Modbus Slave)
(Modbus TCP Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Slave)
(J1939)
(KNX)
(MQTT)
(NMEA0183)
(NMEA2000)
(PROFINET)
(SNMP Agent)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67B11-IP-B2
Summary of Contents for ADF Web HD67B11-IP-B2
- Page 1 Page 1 of 33 Industrial Electronic Devices User Manual Revision 1.002 English OPC UA Client / BACnet Slave - Converter (Order Code: HD67B11-IP-B2 , HD67B11-MSTP-B2) for Website information: http://www.adfweb.com/?Product=HD67B11 for Price information: http://www.adfweb.com/?Price=HD67B11-IP-B2 http://www.adfweb.com/?Price=HD67B11-MSTP-B2 For others OPC UA Client devices, see also the following links: OPC UA Client from/to …...
-
Page 2: Table Of Contents
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 2 of 33 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 3 of 33 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 4 of 33 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 5 of 33 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67B11-IP-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 6 of 33 Industrial Electronic Devices Figure 1b: Connection scheme for HD67B11-MSTP-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 7: Characteristics
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 7 of 33 Industrial Electronic Devices CHARACTERISTICS: The HD67B11-xxx-B2 is a OPC UA Client / BACnet Slave converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between BACnet and OPC UA;... -
Page 8: Power Supply
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 8 of 33 Industrial Electronic Devices POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin... -
Page 9: Function Modes
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 9 of 33 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. -
Page 10: Leds
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 10 of 33 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 11: Rs485 (For Bacnet Ms/Tp)
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 11 of 33 Industrial Electronic Devices RS485 (for BACnet MS/TP): For terminating the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). -
Page 12: Ethernet
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 12 of 33 Industrial Electronic Devices ETHERNET: The Ethernet connection must be made using Connector3 of HD67B11-xxx-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 13: Use Of Compositor Sw67B11
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 13 of 33 Industrial Electronic Devices USE OF COMPOSITOR SW67B11: To configure the Converter, use the available software that runs with Windows called SW67B11. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 14: New Project / Open Project
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 14 of 33 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “OPC UA Client / BACnet Slave Converter”... -
Page 15: Software Options
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 15 of 33 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 16 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 16 of 33 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 17: Set Communication
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 17 of 33 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, OPC UA Client and Modbus TCP. By Pressing the “Set Communication”... - Page 18 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 18 of 33 Industrial Electronic Devices OPC UA C LIENT The means of the fields for “OPC UA Client” are: In the fields “IP Address” the IP address for OPC UA side of the converter is defined;...
- Page 19 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 19 of 33 Industrial Electronic Devices MS/TP): LAVE This section is used to define the main parameters of BACnet MS/TP line. The means of the fields are: In the field “Baudrate”...
-
Page 20: Opc Ua Access
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 20 of 33 Industrial Electronic Devices OPC UA ACCESS: By Pressing the “OPC UA Client Access” button from the main window for SW67B11 (Fig. 2) the window “OPC UA Client Access” appears (Fig. - Page 21 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 21 of 33 Industrial Electronic Devices By clicking on “Add”, it is possible to add a new OPC UA Server inserting its characteristics (Server Address, Authorization, Security Type…). The window “Add OPC UA Server”...
- Page 22 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 22 of 33 Industrial Electronic Devices By clicking on “Scan”, it is possible to get the list of available variables from the selected Server. The window “Scan Server OPC UA” appears (Fig.
- Page 23 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 23 of 33 Industrial Electronic Devices After the scan, the selected variables will appear in “Variables in Read” and/or “Variables in Write” sections, in the lower part of the window “OPC UA Client Access”...
- Page 24 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 24 of 33 Industrial Electronic Devices The “Variables in Write” section is used to define the OPC UA variables to which map the data of Modbus TCP Slave (Fig. 9). Figure 9: “Variables in Write”...
- Page 25 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 25 of 33 Industrial Electronic Devices In the field “Position” the starting byte of the internal memory arrays where getting the value is defined; In the field “Mnemonic” a description of the variable is defined. Note: By clicking on “Auto...
-
Page 26: Set Bacnet Access
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 26 of 33 Industrial Electronic Devices SET BACNET ACCESS: By Pressing the “Set BACnet Access” button from the main window for SW67938 (Fig. 2) the window “BACnet Set Access” appears (Fig. 5). The window is divided in two parts, the “BACnet in Read”... - Page 27 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 27 of 33 Industrial Electronic Devices Is possible to insert directly the Unit (using its unique number) by compiling “Selected BACnet Engineering Unit” field; or by selecting with the fields “Select the Type”...
-
Page 28: Update Device
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 28 of 33 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 29 User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 29 of 33 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B11 device. Warning: If Fig.
-
Page 30: Mechanical Dimensions
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 30 of 33 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 14: Mechanical dimensions scheme for HD67B11-xxx-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 31: Ordering Informations
IP: BACnet/IP MSTP: BACnet MS/TP Device Family HD67B10: OPC UA Client / BACnet Slave - Converter Order Code: HD67B11-IP-B2 OPC UA Client / BACnet/IP Slave – Converter Order Code: HD67B11-MSTP-B2 OPC UA Client / BACnet MS/TP Slave – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 32: Disclaimer
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 32 of 33 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 33: Warranties And Technical Support
User Manual OPC UA Client / BACnet Slave Document code: MN67B11_ENG Revision 1.002 Page 33 of 33 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
