E :
THERNET
This section is used to define the general parameters of Ethernet. The means of the
fields are:
In the field "Ip Address" the IP address of the converter is defined;
In the field "SubNet Mask" the Subnet Mask of the converter is defined;
In the field "Gateway" the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used
for going out of the net.
W -F :
I I
This section is used to define the general parameters of Wi-Fi. It is possible to
defined the type of Wi-Fi communication:
Access Point;
Client.
The means of the fields for Access Point configuration are:
In the field "IP Address" the IP address of the converter is defined;
In the field "Subnet Mask" the SubNet Mask of the converter is defined;
In the field "GATEWAY" the default gateway of the net is defined. This
feature can be enabled or disabled pressing the Check Box field. This feature
is used for going out of the net;
In the field "DNS" the DNS address is defined. This field is required if the
server address is define by URL and not IP Address.
In the field "Port" the port used for MQTT communication is defined;
In the field "SSID" the name of the Wi-Fi network to create is defined;
In the field "Password" the password used for Wi-Fi connection is defined;
In the field "Type" the type of security protocol used by the Wi-Fi network is
defined;
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual OPC UA Client / MQTT
Document code: MN67B19_ENG Revision 1.000

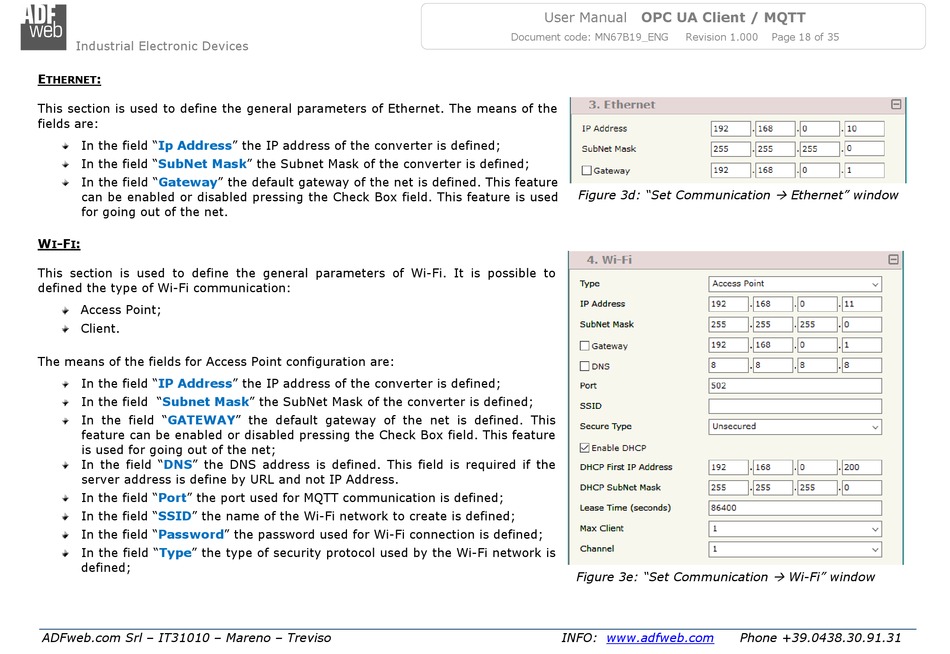

Figure 3d: "Set Communication
