- Page 1 AT90-DIG A120799...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2019-07-16...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of signal words ..............2 Safety instructions..................3 Intended use .................... 6 Unintended Use ..................6 General information ..................7 Liability and warranty ................7 Copyright protection ................. 7 Declaration of conformity ................. 7 Transport, packaging and storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: Preparation of meat, fish and vegetables. Baking bread, pies and cakes. -
Page 9: General Information
General information General information Liability and warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data

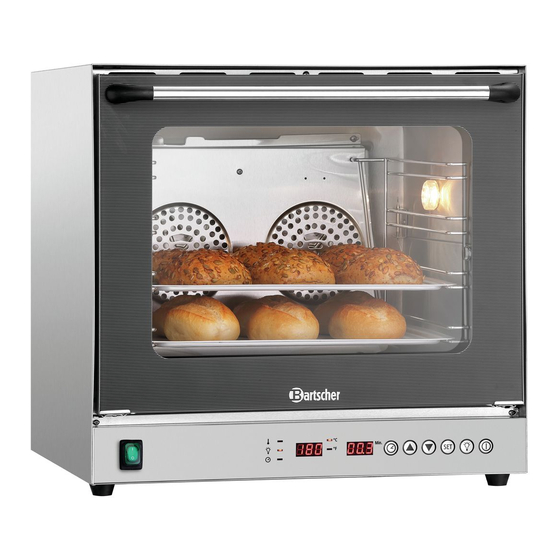

Technical data Technical data Technical specifications Name: Convection oven AT90-DIG A120799 Art. No.: Material: Stainless steel Chamber material: Stainless steel Chamber dimensions (W x D x H), in mm: 460 x 370 x 350 Number of guide rail pairs: Guide rail dimensions (W x D), in mm:... -
Page 12: Functions Of The Appliance
Technical data • Type of guide rails: crosswise • Internal lighting • Digital display of temperature and time • Control: electronic • Appliance connection: ready to plug in • ON/OFF switch • Indicator lights: ON/OFF, heating, timer, lighting • Audible signal after expiry of time •... -
Page 13: List Of Components Of The Appliance
Technical data List of components of the appliance 1. Housing 2. Glass pane door 3. Glass pane door handle 4. Fan motors (2x) 5. ON/OFF switch with integrated power indicator light (green) 6. Adjustable feet (4x) 7. Control panel 8. Sheets (4x) 9. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 Installation and operation 4. Now set the temperature and time with buttons on the control panel. Functions of buttons / indicators / LED indicators A Indicator lights: heating / lighting / F Settings value quick increase timer button (temperature, time) B Temperature digital display G Settings value quick decrease button (temperature, time,...
- Page 17 Installation and operation Thermal Processing Time Setting The thermal processing time may be set in the range of 0–99 minutes. 1. Set the required thermal processing time with the use of settings value increase or decrease buttons. The set thermal processing time is displayed in the digital thermal processing time display.
- Page 18 Installation and operation Temperature Unit (°C / °F) Change The temperature may be set in Fahrenheit and Celsius degrees. By factory default, the set temperature unit is “°C”. The set temperature unit may be changed in the following way: – Switch the appliance on with the ON/OFF switch. –...
- Page 19 Installation and operation 5. Open glass pane door using the door handle. 6. Remove the prepared dishes carefully from the convection oven using kitchen mitts resistant to high temperatures. Turning the Appliance off Operation of the appliance may be interrupted during thermal processing by pressing Start/Stop button.
-
Page 20: Cleaning
Cleaning Cleaning Safety Instructions for cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 21: Possible Malfunctions
Possible Malfunctions 8. Clean the baking sheets with a paper towel or damp cloth. To remove stubborn roasting leftovers, pour a little oil onto the sheet and leave it to soak for 5–10 minutes. Wipe the sheet with a damp cloth or paper towel. 9. -
Page 22: Disposal
Disposal Malfunction Possible Cause Solution Cooking/baking effect is Damaged fan. Contact the supplier. not uniform. Damaged thermostat. Contact the supplier. Top clearance between Maintain clearance of at dishes and sheets is least 40 mm. too small. The oven chamber lighting Damaged bulb.
