H3C MSR 3600 Quick Start

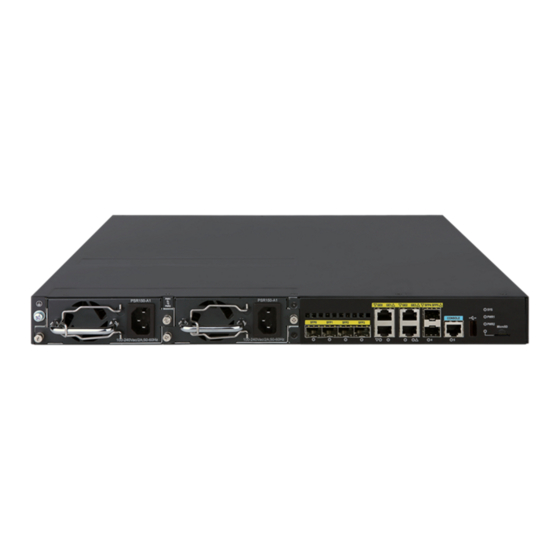

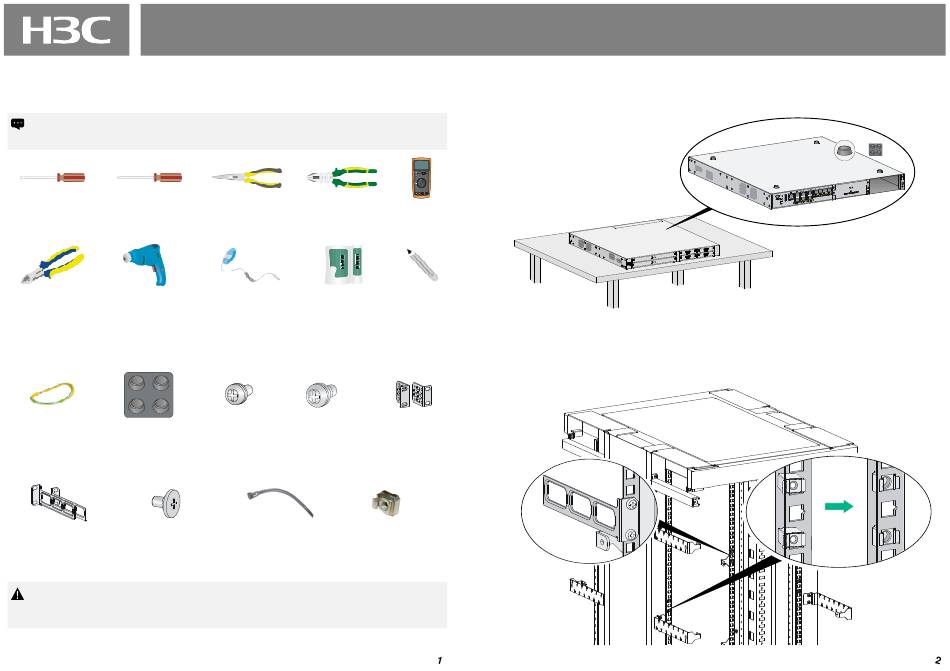

H3C MSR 3600 Routers Installation Quick Start (For MSR3620-DP)-6PW103
H3C MSR 3600路由器 快速安装指南(For MSR3620-DP)-6PW103
Tool list 工具参考
The installation tools are not provided with the router. Prepare them yourself.
路由器不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
Diagonal pliers Blow dryer
斜口钳 热吹风
Introduction to installation accessories 安装附件介绍
Grounding cable Rubber feet
地线 胶垫贴
Rear mounting brackets Load-bearing screw
后挂耳
承重螺钉
Wear an ESD-preventive wrist strap, and make sure the wrist strap makes good skin
!
contact and is well grounded.操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好
接触，并确认防静电腕带已经良好接地。
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
ESD wrist strap Network cable tester
防静电腕带 测线仪
M6 screw Front mounting
M4 screw
(user supplied)
M4 螺钉
M6 螺钉(用户自备)
Removable cable tie Cage nut
(user supplied)
(user supplied)
可拆卸式扎带(用户自备)
浮动螺母(用户自备)
Mounting the router to a workbench 安装路由器到工作台
Stick the rubber pads to the appropriate
positions on the router bottom.
粘贴胶垫到路由器底部。
Multimeter
万用表
Marker
记号笔
Mounting the router to a rack 安装路由器到机柜
Attach cage nuts and rear mounting brackets to the rack. 安装浮动螺母及后挂耳。
brackets
前挂耳
BOM:3104A0HF
Mount the router to the workbench.
将路由器安装到工作台。
