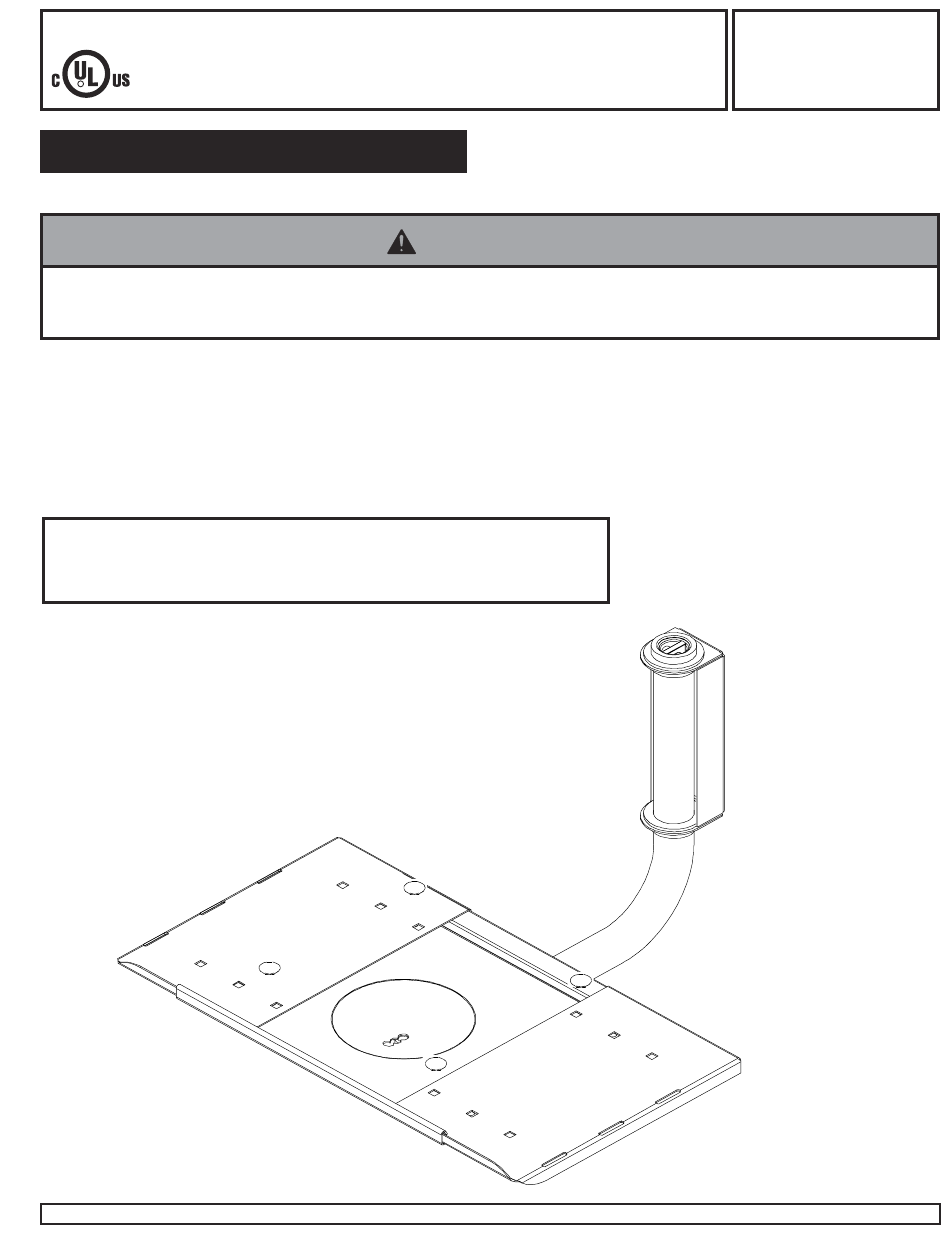

Installation and Assembly - TV Wall Mount
This product is UL Listed.
In the U.S.A. this product is intended
R
for use with UL Listed TVs only.
Please read this information first
Read through instruction sheet and check to make sure you have all parts before beginning assembly and installation.
• Installer must verify that the wall will safely support four times the combined weight of all attached equipment and
hardware.
TOOLS REQUIRED: Electric drill; Phillips head screwdriver or 3/8" socket; Socket wrench with 11/16" and 1/2" sockets,
plus a socket extender; level; stud finder (for wood stud wall installations).
If you are planning to include a Peerless VCR/DVD Mount as part of your TV installation, you will want to do that at the same
time you are assembling your TV Mount. Otherwise, you will have extra work to do later!
Do not force inner tube D into outer tube E as they may get jammed. A screw has been inserted to hold these tubes for
shipping purposes. Remove that screw and use parts L and T as noted on page 5 for final assembly.
IMPORTANT! Turn to the appropriate page for your wall construction.
For installation to a wood stud wall, see page 3
For installation to a concrete, cinder block, or brick wall, see page 4
Visit the Peerless Web Site at www.peerlessindustries.com
WARNING
1 of 13
For customer service call 1-800-729-0307 or 708-865-8870.
Models:
PM1327, PM1327S,
PM1327W
*Maximum Load Capacity:
100 lb
ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04
Advertisement
Related Manuals for PEERLESS PM1327
Summary of Contents for PEERLESS PM1327
- Page 1 (for wood stud wall installations). If you are planning to include a Peerless VCR/DVD Mount as part of your TV installation, you will want to do that at the same time you are assembling your TV Mount. Otherwise, you will have extra work to do later! Do not force inner tube D into outer tube E as they may get jammed.
-
Page 2: Parts List
590-0097 590-0097 590-0097 Note: Tray is shipped preassembled 2 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870. - Page 3 5/32" (4 mm) dia. 3/8" (10 mm) 3 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 4 WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 5 Set arm in desired position for the size TV you are mounting. Secure arm into desired position with screw (L) and nut (T) as shown below. 13" 20" 27" 5 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 6 TV. Fasten with bolts (R) and nuts (S). Note: Install nut with plastic washer side down. 6 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 7 à montants en bois). Si va a incluir la Montura para VCR (videocasetera) de Peerless Si l’on prévoit d’ajouter un support de magnétoscope Peer- como parte de su instalación de TV, es mejor que lo haga al mismo less à...
-
Page 8: Liste Des Pièces
590-0097 590-0097 590-0097 Remarque : Le plateau est préassemblé Nota: La charola se envía preensamblada 8 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870. - Page 9 ¡reduciendo en gran medida su poder de sujeción¡ 5/32" (4 mm) dia. 3/8" (10 mm) 9 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 For customer service call 1-800-729-0307 or 708-865-8870. Visit the Peerless Web Site at www.peerlessindustries.com...
- Page 10 AVERTISSEMENT • lors du montage de supports muraux Peerless sur des parpaings, vérifier que le béton est épais d’au moins 40 mm (1 5/8 po) dans les trous de 6 mm (1/4 po) à percer pour les chevilles à béton. Il est recommandé d’utiliser une perceuse électrique standard réglée à...
- Page 11 11 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 12 (L) y la tuerca (T) y tire del brazo hasta la posición deseada. Sujete el brazo en la posición deseada con el tornillo (L) y la tuerca (T). 13" 20" 27" 12 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
- Page 13 Sujete con pernos (R) y tuercas (S). 13 of 13 ISSUED: 03-23-00 SHEET #: 170-9011-8 10-28-04 Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870. © 2003 Peerless Industries, Inc. All rights reserved. Peerless is a trademark of Peerless Industries, Inc.
