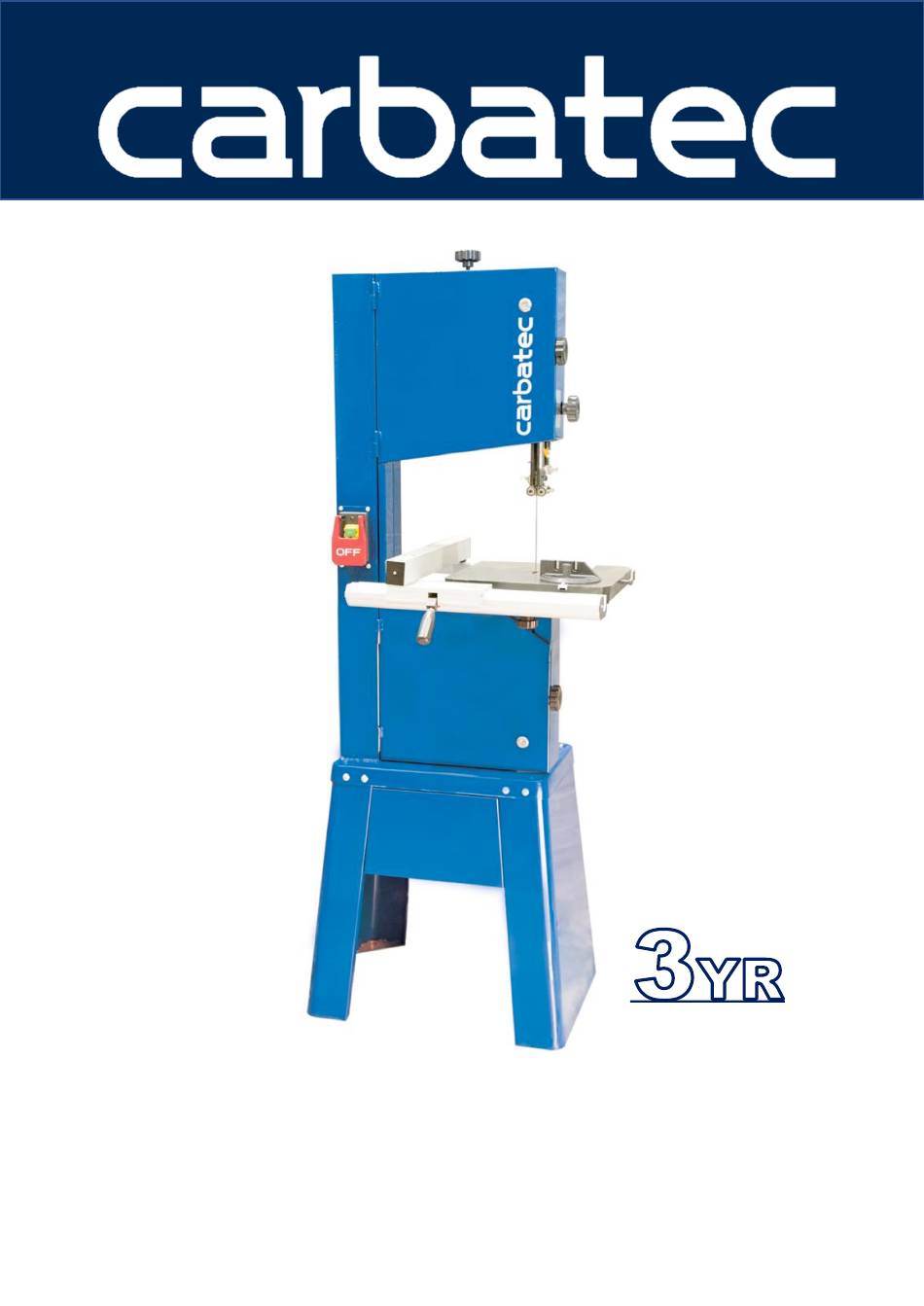

  • Page 1 WARRANTY OWNERS MANUAL 345MM (14”) HEAVY DUTY BANDSAW BS-345C...
  • Page 2 2. WARNINGS Misuse of this machine can cause serious injury. Misuse of this machine can cause serious injury. Never leave machine runn unning while you are away from it. − − Always shut off the mach chine when not in use. For safety, machine must be set up, use ed and serviced −...
  • Page 3: General Electrical Cautions

    GENERAL ELECTRICAL CAUTIONS Caution: This saw should be grounded in accordance with the National For circuits which are far away from the electrical Electrical Code and local codes and ordinances. This work should service box, the wire size must be increased in order to deliver be done by a qualified electrician.
  • Page 4: Rip Fence

    ASSEMBLY • To lock in position push down locking handle. • When you receive your new bandsaw, the stand will not be assembled. Use the carriage bolts and nuts (M8 TILTING THE TABLE x 16), Flat washes (M6 x 13) and hex head bolts (M6 x M M A A K K E E S S U U R R E E T T H H E E M M A A C C H H I I N N E E I I S S N N O O T T C C O O N N N N E E C C T T E E D D T T O O 16).
  • Page 5: Blade Tension

    BLADE TENSION • If the blade tension is not correct you will need to adjust the blade tension hand wheel. Fig.8 A. There is an indicator that gives you the correct tension for the width of the blade. Fig. 7B. Fig.
  • Page 6: Dust Collection

    DUST COLLECTION This bandsaw is equipped with a 4” dust port Fig.10 Carba-Tec strongly recommends this machine should be used with an appropriate dust extractor. Fig. 10 BLADE GUIDE HEIGHT The upper blade guide should have as little clearance as possible from the material. It is adjusted by loosen- ing the locking knob Fig.11A and raising or lowering the guide via the rack and pinion knob Fig.
  • Page 13 3 years from the invoice date (less specifically noted invoice exclusions). Carbatec Pty Ltd ABN 84 010 706 242 callcentre@carbatec.com.au | Phone +61 (0)732920300 | www.carbatec.com.au 128 Ingleston Road, Wakerley, Queensland, Australia 4154  ...
