Touch Wheel RF Remote Controller
Model No.: R21/R22/R23
23-Key/Touch color wheel/Wireless remote 30m distance/AAAx2 battery/Magnet stuck fix
R21
1 Zone RGB/RGBW
Features
● Apply to RGB,RGBW or RGB+CCT LED controller.
●
Ultra sensitive color adjustment touch wheel.
● Each remote can match one or more receiver.
● AAAx2 b atter y powered.
● Operate with LED indicator light.
● Magnet on the back which can be easily stuck on back holder or any metal surfaces.
Technical Parameters
Input and Output
Output signal
Working voltage
Working current
Standby current
Standby time
Remote distance
Warranty
Warranty
User Manual Ver 1.0.2

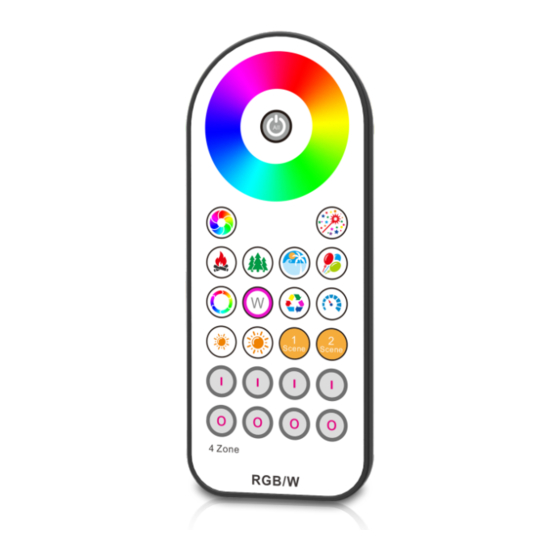

R22
4 Zone RGB/RGBW
RF 2.4GHz
(
)
3VDC AAAx2
(
)
＜5mA
＜10μA
1 year
30m
5 years
www.iskydance.com
R23
1 Zone RGB+CCT
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
LVD RED
EN301 489,EN 62479
EN60950
EN300 328
CE,EMC,LVD,RED
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
Page 1
Advertisement
Table of Contents
Related Manuals for SKYDANCE R21
Summary of Contents for SKYDANCE R21
- Page 1 Touch Wheel RF Remote Controller Model No.: R21/R22/R23 23-Key/Touch color wheel/Wireless remote 30m distance/AAAx2 battery/Magnet stuck fix 1 Zone RGB/RGBW 4 Zone RGB/RGBW 1 Zone RGB+CCT LVD RED Features ● Apply to RGB,RGBW or RGB+CCT LED controller. ● Ultra sensitive color adjustment touch wheel.
- Page 2 R21,R22,R23 Touch Wheel RF Remote Controller Mechanical Structures and Installations 55.00 mm 3VDC(AAAx2) Battery Back holder with magnet To x the remote, three options are offered for selection: Option 1: stuck the remote on any metal surfaces directly. Option 2: fix the remote' back holder on the wall with two screws.
- Page 3 R21,R22,R23 Touch Wheel RF Remote Controller Key function ● R21 1 zone RGB/RGBW remote Touch color wheel Turn on/off light 6 dynamic mode Static RGB color +/- Brightness +/- Dynamic mode +/- Speed +/- red, green, blue, white color 4 scene memory, short press recall the scene , long press 2s for save.
- Page 4 R21,R22,R23 Touch Wheel RF Remote Controller ● R23 1 zone RGB+CCT remote Touch color wheel Turn on/off light Brightness +/- Cold white Color temperature +/- Warm white Static RGB color +/- 6 dynamic mode Dynamic mode +/- Speed +/- 4 scene memor y, short press recall the scene, long press 2s for save.
