SKYDANCE R2 Manual

10-Key CCT Zigbee 3.0 Remote Controller
Model No.: R2(WZS)
10-key/Zigbee 3.0/Wireless remote 30m distance/CR2032 batter y
Features
● Apply to Zigbee 3.0 dual color LED controller or driver.
● Built-in Tuya Zigbee 3.0 remote module, supports scenario linkage and one-click execution.
● Each remote can match one or more receiver.
● R C 2032 attery powered. b
● Operate with LED indicator light.
● White & Black available.
Technical Parameters
Input and Output
Output signal Zigbee 3.0
Working voltage 3VDC(CR2032)
Working current <15mA
Standby current <16μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Mechanical Structures and Installations
44.50 mm

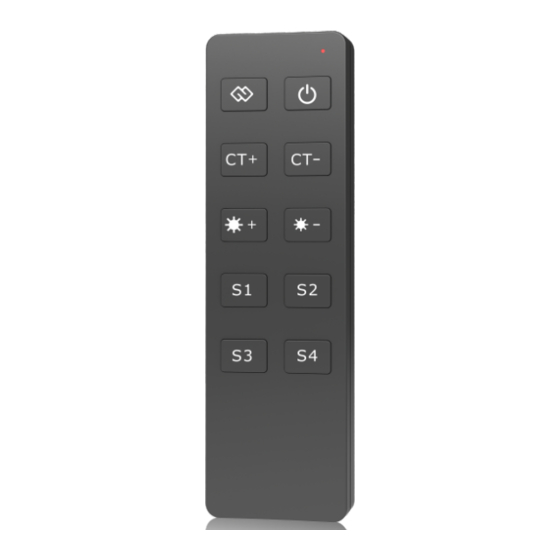

Key function
LED indicator
CT -
CT +
-
+
S1 S2
S3 S4
User Manual Ver 1.0.1
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certi cation
11mm
Note: Before the first use,
please remove the protective film on the battery.
CT +
+
S1 S2 S3
Before use the remote, please edit the scene setting through Tuya APP firstly.
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
CR2032 Batter y
: Turn on/off light.
: Network pairing
: Adjust color temperature, short press 11 levels, 10% step.
CT -
: Adjust brightness, short press 11 levels, 10% step.
-
: Short press to recall the scene 1-4.
S4
1
Environment
Operation temperature
Package
Size
Gross weight
Warranty
Warranty
To fix the remote, three options are offered for selection:
Option 1: fix the remote' back holder on the wall with two screws.
Option 2: adhere the remote' back holder to the wall with paster.
Back holder
LVD RED
O O
Ta: -30 C ~ +55 C
L138x W50 x H22mm
0.064kg
5 years
