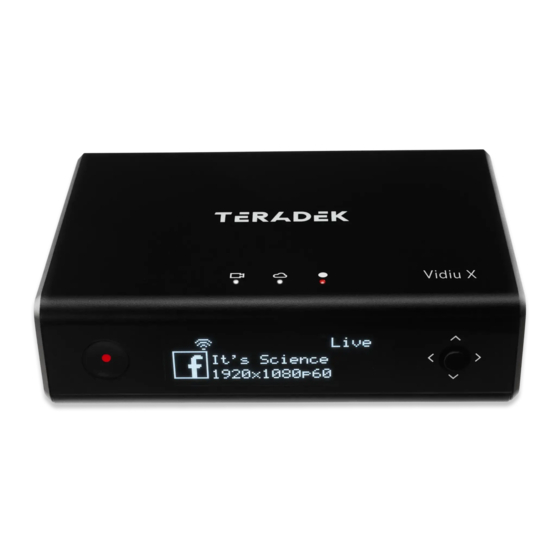

Teradek Vidiu X Reference Manual

Live streaming encoder
Hide thumbs Also See for Vidiu X:
Table of Contents

Advertisement

Quick Links

Vidiu X
Live Streaming Encoder
Reference Guide
v1
© 2021 Teradek, LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vidiu X and is the answer not in the manual?

Questions and answers

Related Manuals for Teradek Vidiu X

Summary of Contents for Teradek Vidiu X

  • Page 1 Vidiu X Live Streaming Encoder Reference Guide © 2021 Teradek, LLC. All rights reserved.

  • Page 2: Table Of Contents

    Choose a Platform ........9 Internet Streaming with Airmix ....10 4. Settings Overview ........10 Streaming: Configure Destination ....11 Streaming: Recording ......14 Audio/Video ..........15 Network ..........16 System ...........17 5. Troubleshooting .........18 6. Technical Specifications .......20 7. FCC Statement...........22 Teradek, LLC 2021. All rights reserved. v1-0521...

  • Page 3: Introduction

    In addition to this reference guide, there are a number of resources available for more information on Vidiu X’s features and operation. For tips, information, or to submit help requests to Teradek’s support team, visit https://teradek.com/pages/contact. For all the latest firmware and software updates, visit https://teradek.com/pages/downloads.

  • Page 4: Physical Properties

    Use the Menu Joystick to navigate the front panel interface. Menu Joystick Broadcast/Record Button Use the arrow buttons to navigate Start/stop broadcast or through the menus. Press the joystick to confirm or open recording. selection. Teradek, LLC 2021. All rights reserved. v1-0521...

  • Page 5: Getting Started

    1. Connect the USB-C A/C adapter to the USB-C port (Fig. 2-1) located on the back of the device. Vidiu X begins to boot as soon as the power is connected. NOTE: Leave sufficient clearance underneath the unit to allow airflow.

  • Page 6: Connect To A Network

    Vidiu X supports two wireless (Wi-Fi) modes; Access Point (AP) Mode and Client Mode. In AP Mode, Vidiu X generates a Wi-Fi network for your phone or laptop to connect to. To use Wi-Fi as your Internet connection, you’ll need to connect Vidiu X to another network using Client mode.
  • Page 7 CONNECT TO AN ETHERNET NETWORK Plug an Ethernet cable from the Vidiu X’s Ethernet port to an Ethernet switch or router. Fig. 2-7 VERIFY ETHERNET CONNECTION From the front panel: Verify that the icon is displayed on the front panel, indicating that Vidiu X is connected to an Ethernet network (Fig.
  • Page 8 CHOOSE YOUR DESTINATION Vidiu X offers native integration with many popular video streaming services, making it capable of broadcasting to any compatible online platform. Simply enter your credentials using the Vidiu app, Web UI, or the front panel interface. CONNECT USING THE VIDIU APP 1.

  • Page 9: Choose A Platform

    Airmix offers an entire suite of tools such as switching, graphics, lower-thirds, looping in pre-recorded videos and more. CONNECT AND BROADCAST WITH AIRMIX 1. Connect your iPad to the same network as Vidiu X. Airmix or Airmix Solo Airmix is compatible with iPad Air 1 and newer.

  • Page 10: Internet Streaming With Airmix

    SETTINGS OVERVIEW NAVIGATING THE SETTINGS MENU The Settings menu allows you to customize and control Vidiu X’s streaming, audio/video, and network settings. Use the Vidiu app, Web UI, or the front panel interface to access the Settings menu, then select a setting to modify.

  • Page 11: Streaming: Configure Destination

    STREAMING Vidiu X is capable of streaming video to some of the most popular streaming platforms using a number of different protocols. To view or modify the current streaming mode, enter the Streaming menu, then select a Stream Mode. Choose the Stream Mode best suited for your application.
  • Page 12 Add (Fig. 3-5). Fig. 3-5 FACEBOOK, YOUTUBE LIVE, AND VIMEO LIVESTREAM Vidiu X features native integration with some of the most popular streaming platforms. Select a Stream Mode (Facebook, YouTube Live, or Vimeo Livestream), then follow the prompts to link your account.
  • Page 13 WOWZA STREAMING CLOUD 1. Select Wowza Streaming Cloud mode. 2. Enter the connection code from your Wowza Streaming account then click Connect (Fig. 3-7). 3. Enter your credentials, then return to the web UI Home screen. Fig. 3-7 RTMP(S) Vidiu can stream to other video platforms, CDNs, and streaming servers using RTMP mode, which is supported by most video streaming platforms.

  • Page 14: Streaming: Recording

    Fig. 3-10 RECORDING With Vidiu X, you can record your broadcasts directly to a compatible SD card. Each recording is saved with the same resolution and bitrate set on the device. From the front panel interface, Web UI, or the Vidiu app, go to your Settings, then select Recording.

  • Page 15: Audio/Video

    AUDIO/VIDEO The Video/Audio menu contains input source information and audio source configuration options. Navigate to Settings>Video/Audio (Video Settings or Audio Settings from the front panel), then tap the Video/Audio button to configure the audio or video settings. AUDIO/VIDEO SETTINGS ● DEINTERLACER - The Deinterlacer converts interlaced video into progressive video before streaming, improving the appearance of video that has been scaled down from the original input resolution.

  • Page 16: Network

    Wi-Fi or cellular connection. Connect an Ethernet cable to Vidiu X, select Wired, then choose a configuration mode: ● Dynamic (DHCP): When set to DHCP, Vidiu X will request an IP address and network configuration from the network’s DHCP server.

  • Page 17: System

    System menu in the web UI. SYSTEM SETTINGS ● FIRMWARE - Check for new updates and upgrade Vidiu X’s firmware to the latest version. If an update is available, simply follow the prompts to complete the firmware update. ● SECURITY - Add, change, or delete your password.

  • Page 18: Troubleshooting

    TROUBLESHOOTING MY FIREWALL/ROUTER IS BLOCKING RTMP STREAMING. Vidiu X uses a set of ports for RTMP streaming. Make sure the required ports are allowed through your firewall or router. The list can be found at https://support.teradek.com/hc/en-us/ articles/226177168. WHAT ARE THE SUPPORTED RESOLUTIONS FOR EACH SOCIAL MEDIA CDN? Every live streaming platform’s specifications are different, and generally change over time.

  • Page 20: Technical Specifications

    1x ¼-20 plus 2 x M3 on the bottom plate ENVIRONMENTAL Operating Temperature Operating: 14ºF to 104ºF (-10ºC to 40ºC) Storage: -40ºF to 194ºF (-40ºC to 90ºC) Humidity Operating: 5% to 95% (non-condensing) Storage: Max. 90% Teradek, LLC 2021. All rights reserved. v1-0521...
  • Page 21 INTERFACES Configuration Interface OLED display with navigation joystick, Feature-rich Web UI for configuration and control Switches Go Live button Recording/Storage Full size SD/SDXC (class 6 and above) formatted exFAT, USB formatted exFAT Mobile App Vidiu App for iOS or Android devices USB Interface Powered USB 2.0 host port Functionality...

  • Page 22: Fcc Statement

    2. This device must accept any interference received, including interference that may cause undesired operation. EC DECLARATION OF CONFORMITY Teradek LLC herby declares that the Vidiu X is in compliance with Directive 1999/5/EC. The full text of the EC Declaration of Conformity is available at the following internet address: https://support.teradek.com/hc/en-us/ articles/233429747-EC-Declaration-of-Conformity-for-CE-mark Teradek, LLC 2021.
