SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, OPC UA and
J1939.
By Pressing the "Set Communication" button from the main window for SW67B17 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "OPC UA Client" are:
In the field "IP Address" the IP address for OPC UA side of the converter is defined;
In the field "SubNet Mask" the SubNet Mask for OPC UA side of the converter is
defined;
In the field "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out
of the net;
In the field "DNS" the IP Address of the DNS server is defined. This feature can be
enabled or disabled pressing the Check Box field.
The means of the fields for "J1939" are:
In the field "Baudrate" the data rate of J1939 is defined;
In the field "TimeOut
received in this time, the data on MQTT side are set to 0xFF;
If the field "Enable Peer to
Address of the J1939 messages received.
In the field "ID Device
The means of the fields for "NTP (Network Time Protocol)" are:
In the field "Server URL" the URL or the IP Address of the NTP Server is defined;
In the field "Poll Time
defined.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Data" a time is defined. When a J1939 message is not
Peer" is checked, the gateway will mask the Source
J1939" the ID of J1939 side of the converter is defined.
(seconds)" the polling time for the time synchronization is
User Manual OPC UA Client / J1939
Document code: MN67B17_ENG Revision 1.000

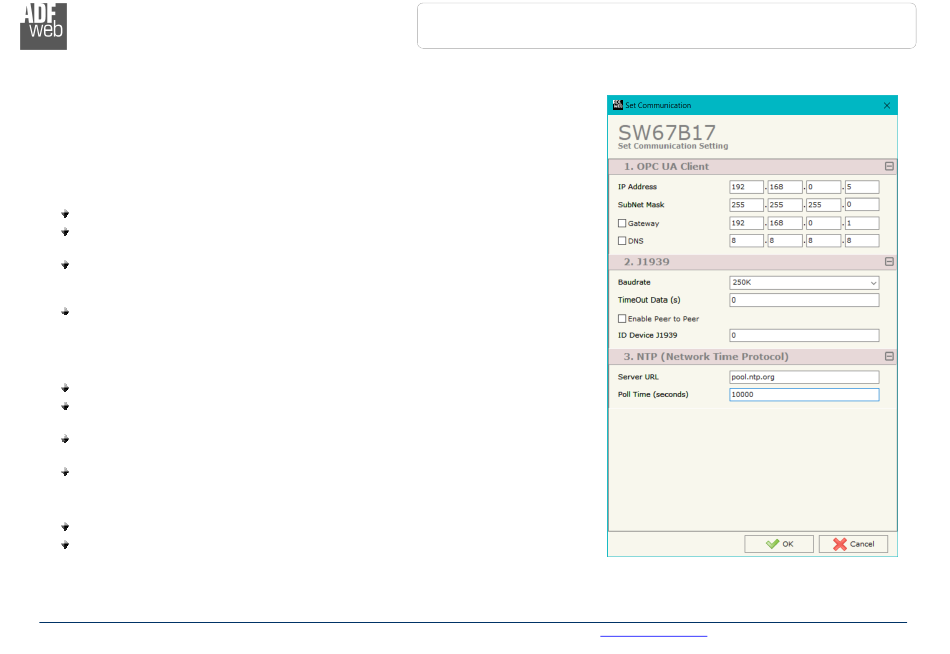

Figure 3: "Set Communication" window
