The "Variables in Write" section is used to define the OPC UA variables to write from J1939 side (Fig. 9).

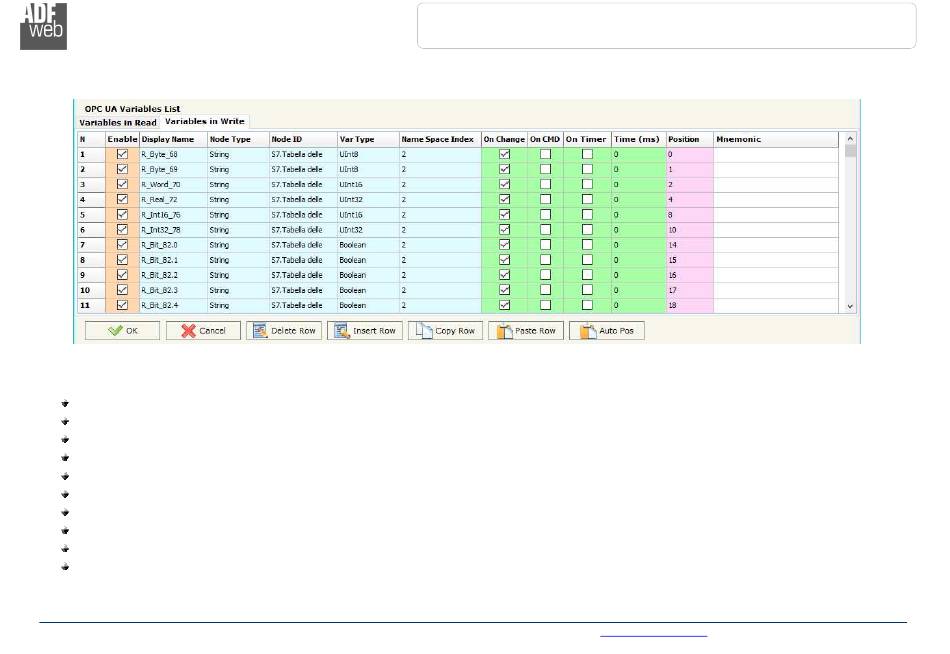

Figure 9: "Variables in Write" section
In "Variables in Write" section (Fig. 8), the means of the fields are:
If the field "Enable" is checked, the OPC UA variable is enabled;
In the field "Display name" the name of the OPC UA variable is defined;
In the field "Node Type
In the field "Node ID" the name of the OPC UA node, which includes the variable, is defined;
In the field "Var Type" the data format of the OPC UA variable is defined;
In the field "Name Space
If the field "On Change" is checked, the OPC UA variable is sent when the data on J1939 changes the value;
If the field "On CMD" is checked, the OPC UA variable is sent when a J1939 message is received;
If the field "On Timer" is checked, the OPC UA variable is sent cyclically;
In the field "Time (ms)" the delay in ms between two writings of the variable is defined (if "On Timer" is checked);
